Product Description

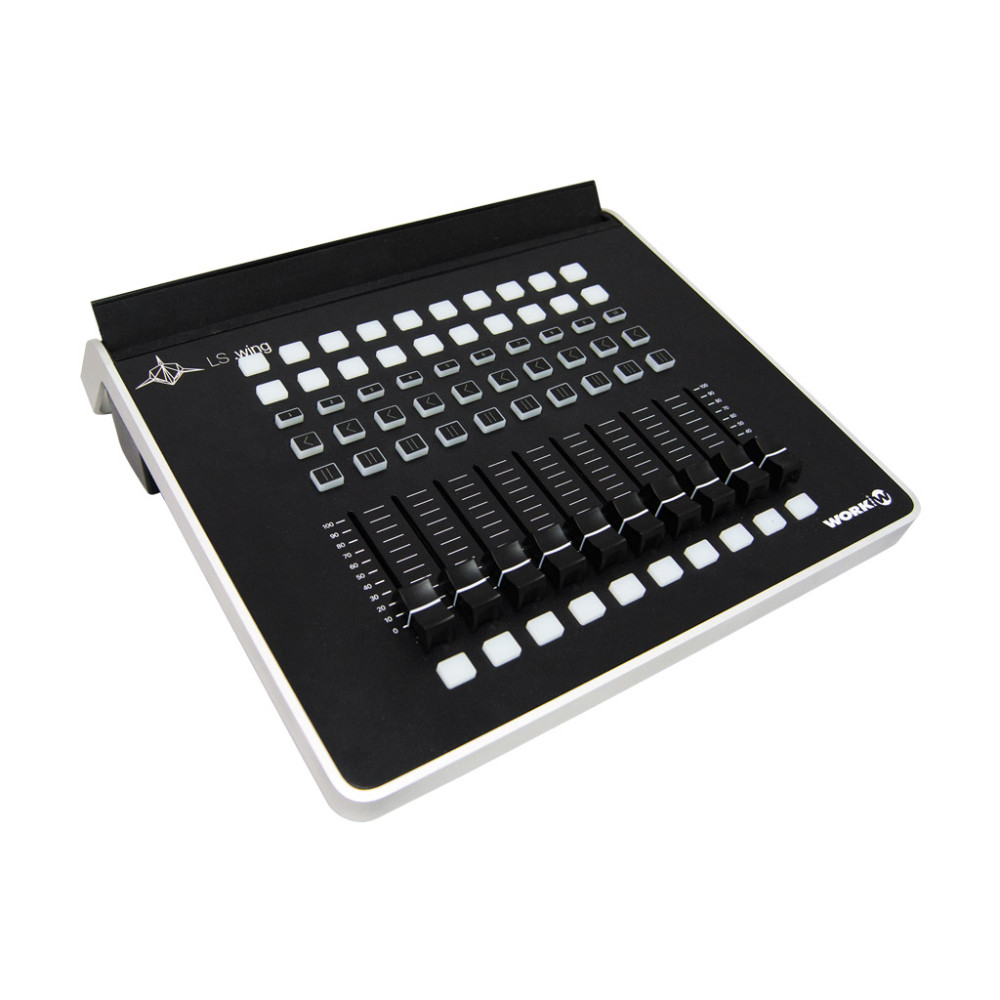

The LightShark LS.wing an innovative product with several uses in an easily transportable format. Offering outstanding versatility to the lighting control market, it can be configured to be compatible with other lighting systems. Developed as a 4 in 1 product, LS .wing can be a straightforward fader wing, an OSC hardware controller or a standalone MIDI console for any device that accepts MIDI control via USB. A total of four USB ports are provided, including a USB-B port, making it easy to connect to MIDI devices and charge smartphones and tablets.
Able to send and receive OSC commands through ethernet from any software or hardware compatible with this protocol. In addition, it can send/receive UDP messages, making it compatible with any AV device or software on the market.
In all four modes, LS .wing has a built-in ArtNet/sACN to DMX converter node offering two Direct DMX universes. Which can be further expanded with the addition of other LightShark products - the LS .1 and LS .Core offering two Direct DMX universes via an XLR connector, adding LS .wing enables double the number of Direct DMX universes available to each console. Its 4 in 1 design makes it easily the most versatile and functional controller on the market. In addition, lighting professionals working in theatres and on live shows can have complete control of more than one device at a time just by using different pages in the same unit.
Features
- Executors Buttons
- Playback Control
- Faders
- Selection Buttons
- Playback Control
- Flash Buttons
- Lamp Port
- Universe A
- Universe B
- Gigalan Switches
- USB Data Ports
- +5V Power USB
- PowerCON TRUE1
Video
LS-Wing: Overview
Learn about the basics of the LS-Wing and also learn what types of devices it can control.
Technical Specification
| Overview | |
| Buttons | 20 executor, 10 selection, 20 Playback, 10 Flash, fully configurable |
| Faders | 10 faders fully configurable |
| I/O ports | 1xLamp port (XLR-3 5V) 2xDMX (XLR-5) 3xLAN (EtherCon®) 2xUSB-A (Data) + 1xUSB-A(only power 5V) 1xUSB-B 1xTrueOne® mains |
| Configuration interface | Via Built-in Webserver. Accesible through LAN connection |
| DMX Outputs | Built-in LAN to DMX ArtNET, sACN node with 2 universe outputs |
| Lamp connector DC Voltage | 5V |
| USB POWER connector max. current | 2A |
| Dimmensions | 325 x 100 x 330 mm |
| Weight | 2.7 kg |
| Downloads | |
| User Guide | Download |
Please Note: This product is intended for professional use only.
