Product Description

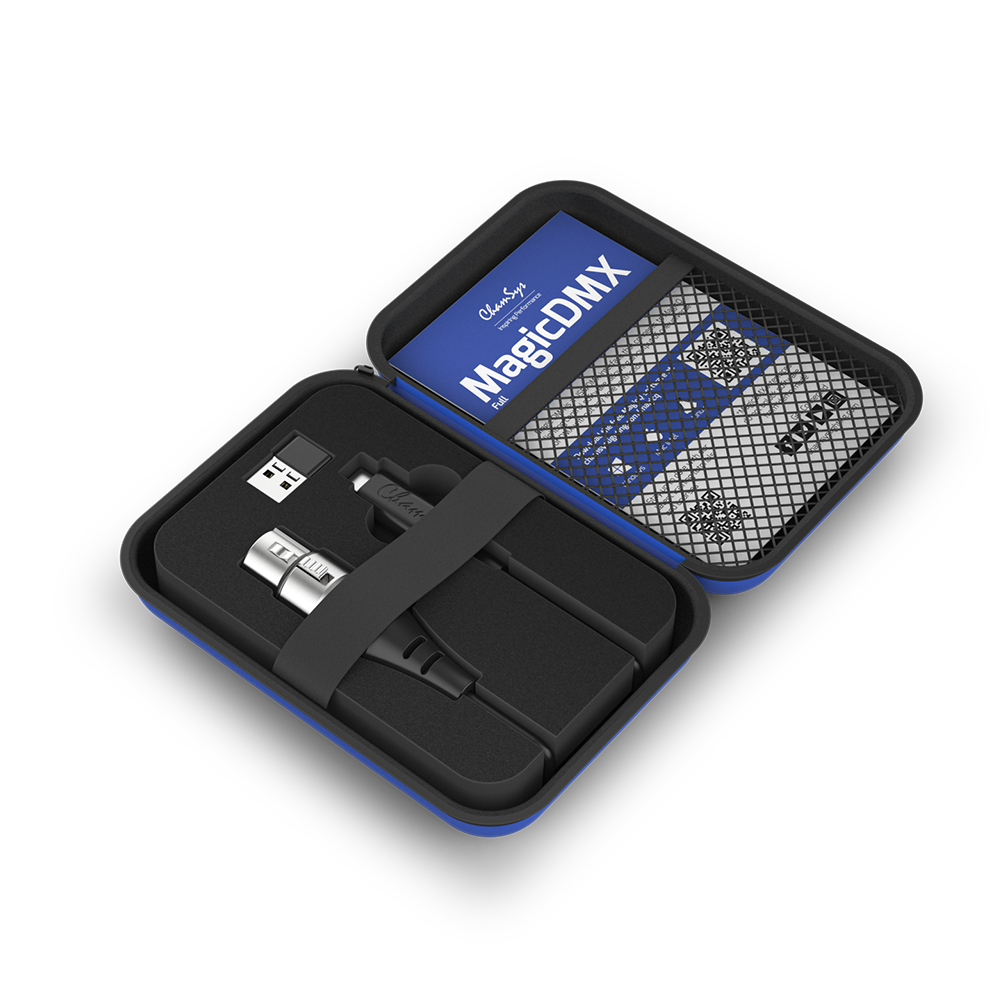

The MagicDMX Full USB to DMX Interface offers a full universe of DMX control with RDM support and without any time limit. It has the option of being used either as Output, or as an Input enabling use for monitoring DMX. Remotely set DMX addresses, select fixture modes and auto patch RDM compliant fixtures to MagicQ.
MagicDMX is an economic, single universe USB to DMX interface in two versions, Basic and Full. It is designed to be used with the free MagicQ software as a way to practice programming and demo the MagicQ software using actual moving lights.; Output or input one universe of DMX – not time limited. Can be used as a DMX test device.
Features
- One Universe DMX output
- 5 pin female XLR
- USB-C connector
- Basic electrical protection
- LED status indicator
Technical Specification
| Hardware Specification | |
| DMX Port(s) | 1 |
| RDM Support | Yes |
| USB Port(s) | 1 (USB-C) |
| Unlocks ‘demo mode features | No |
| Time Restriction | No |
| Software Specifications | |
| Universes | 64 |
| Channels | 32,768 |
| Number of fi xtures | upto 32,768 |
| Cues | 5000 |
| Cue stacks | 2000 |
| Palettes | 4096 |
| Groups | 5000 |
| Media server support | 50 (each different content) |
| Weights and Dimensions | |
| Width | 135mm (5.3”) |
| Depth | 93mm (3.6”) |
| Height | 38mm (1.4”) |
| Weight (MagicDMX Inside case) | 0.1kg (0.22lbs) |
| Downloads | |
| Data Sheet | Download |
Please Note: This product is intended for professional use only.
