Chamsys - QuickQ 20

£2,640.00 (inc V.A.T.) £2,200.00 (exc V.A.T.)
SKU:
CHA100-720
Weight:
5.20 KGS
Availability:
Please contact sales for stock and shipment information on: 020 8254 4840 or via  Sales@ShopWL.com
Shipping:
Calculated at checkout
Quantity:

Product Description

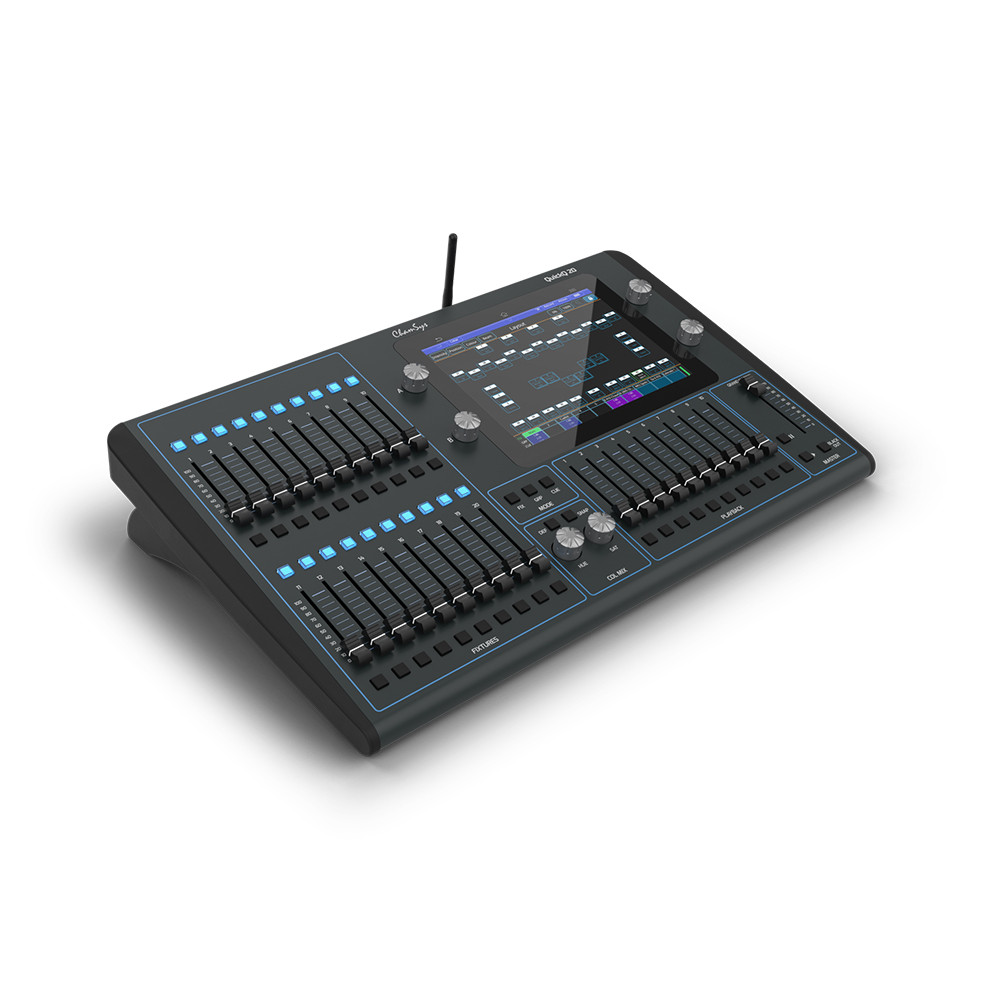

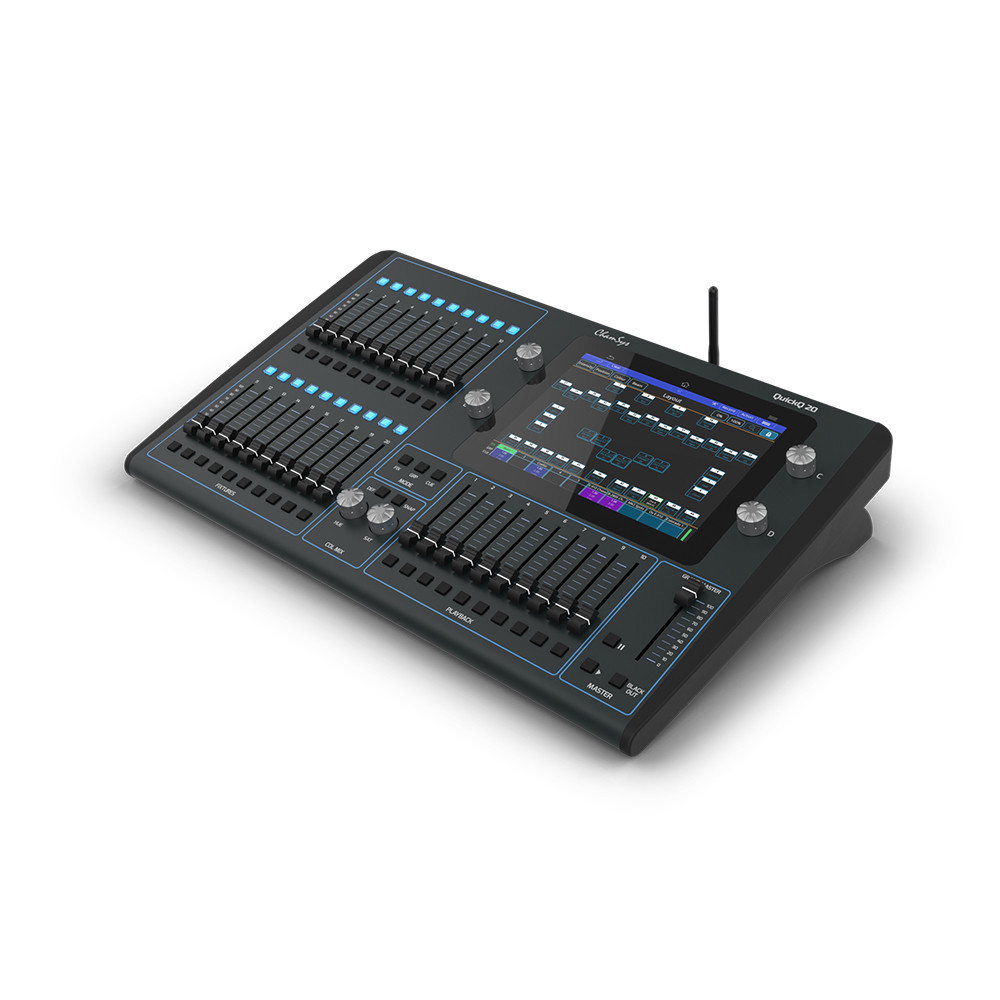

QuickQ 20 is part of ChamSys QuickQ range of user friendly and affordable lighting control consoles. The QuickQ 20 is the perfect choice console for control of dimmer, LED colour mixing and moving light fixtures. The console features a large 9.7 inch touch screen utilising a smart phone like interface for setup, programming and playback of your show.

The console can automatically detect and patch RDM compliant fixtures and features in-built WIFI capabilities enabling remote connection to the free QuickQ app available on iOS, Android and Windows tablets and phones. Easily connect the app by simply scanning the QR code on the console display.

The console has easy-to-understand buttons and faders, simple colour selection and intensity control tools, a large touch screen with zooming and scrolling at your fingertips, as well as a simple cue/chase system for playback. Specifically aimed at the novice user, the QuickQ interface easily leads you through setup, programming and operation of the console.

The console has a free to download offline programming software available for Mac and Windows. You can program your show on your computer, save it onto a flash drive and load it onto the QuickQ console.

QuickQ uses ChamSys extensive and continuously updated personality library with over 45,000 personalities.

QuickQ shows are compatible can be loaded onto any MagicQ system allowing future progression onto ChamSys more advanced MagicQ range of consoles.

Features

  • Overview

    Overview

    Modelled on smartphone icon interfaces for ease of use
    Intuitive interface allowing simple control of all fixture attributes
    The interface supports gestures such pinch zoom and scrolling
    Easily connect to the remote app on iOS & Android devices via inbuilt Wi-Fi


  • Networking

    QuickQ supports output of DMX over network via ArtNet/sACN/Pathport
    Remote triggering of Playbacks and Execute items via OSC

  • Colour Control

    Colour Control

    A dedicated “colour control area” with Hue and Saturation encoders
    Select from inbuilt palettes and gel libraries using the touch screen
    Built in colour picker for use with LED fixtures

More Features

  • 20 multi-function fixture faders with 3 different modes - Fixture, Group and Cue
  • 10 multi-cue Playback faders, which are legended on screen
  • The console features a dedicated Grand Master fader for overall level control
  • Offline editor available for both Windows and Mac
  • Regular software updates
  • Easy Upgrades
  • Automated Patching
  • HSV Color Mixing
  • Color Picker
  • Built-in FX
  • Chase Support
  • Master Cue Stack
  • Execute Window
  • Audio Triggering
  • Tap to Time

Video

QuickQ 20 by ChamSys

QuickQ consoles from ChamSys are designed with a quick and easy user interface...

Technical Specification

Overview

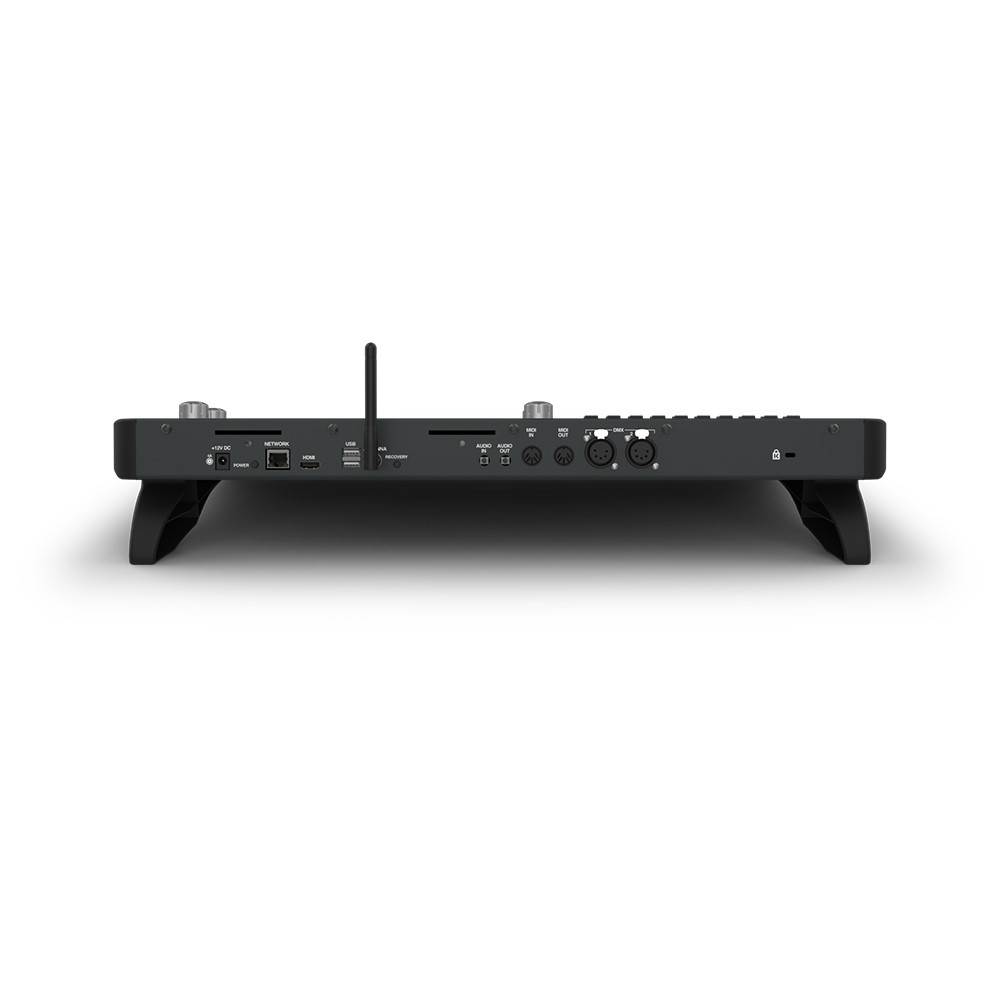

Hardware Specifications Universes supported: 2
Direct DMX Outputs 5-Pin XLR: 2
Master Playback Faders: 10
Multi-Function Fixture Faders: 20
Bump Buttons: Yes
Attribute Encoders: 4
Dedicated Hue/Saturation Encoders: Yes
Inbuilt 9.7” Multi-touch Display: Yes
External Monitor: 1920 x 1080 HDMI
Inbuilt Wi-Fi: Yes
Network Port: 1
USB Ports: 2
Audio Input: 1
Audio Output: 1*
MIDI Ports in/out: Yes*
Console Weights and Dimensions Width: 565mm (22.2 inches)
Depth: 350mm (13.8 inches)
Height: 106mm (4.2 inches)
Weight: 5.2kg (11.46 lb)
Boxed Weights and Dimensions Width: 720mm (28.3 inches)
Depth: 420mm (16.5 inches)
Height: 230mm (9 inches)
Weight: 8kg (17.63 lb)
Software Specifications Max Number of DMX Channels: 1024
Max Number of Fixtures Supported: 1024
Max Number of Cue Stacks: 10
Max Number of Chases: 10
Midi & Midi Timecode Supported: Yes
OSC Supported: Yes
RDM Autopatch for fast show patching
Fixture library of over 30,000 fixture files
Built in FX generator
Colour picker and Gel inbuilt Gel library
Offline designer software available for Windows and Mac
Supported fixtures: All - LEDs, Dimmers & Moving Lights
Included Accessories USB Desk light: 1
Dust cover: 1
Tablet stand: 1
Wi-Fi Antenna: 1
12V power supply: 1
IEC power cable: 1
Flight Cased Weights and Dimensions Width: 650mm (25.6 inches)
Depth: 490mm (19.3 inches)
Height: 210mm (8.3 inches)
Weight (console in flightcase): 16kg (35.27 lb)
Downloads
Spec Sheet Download
Manual Download
Brochure Download

*Audio Out & Midi Out enabled via future software update

Please Note: This product is intended for professional use only.
