Chamsys - QuickQ 10

£1,800.00 (inc V.A.T.) £1,500.00 (exc V.A.T.)
SKU:
CHA100-710
Weight:
4.07 KGS
Availability:
Please contact sales for stock and shipment information on: 020 8254 4840 or via  Sales@ShopWL.com
Shipping:
Calculated at checkout
Quantity:

Product Description

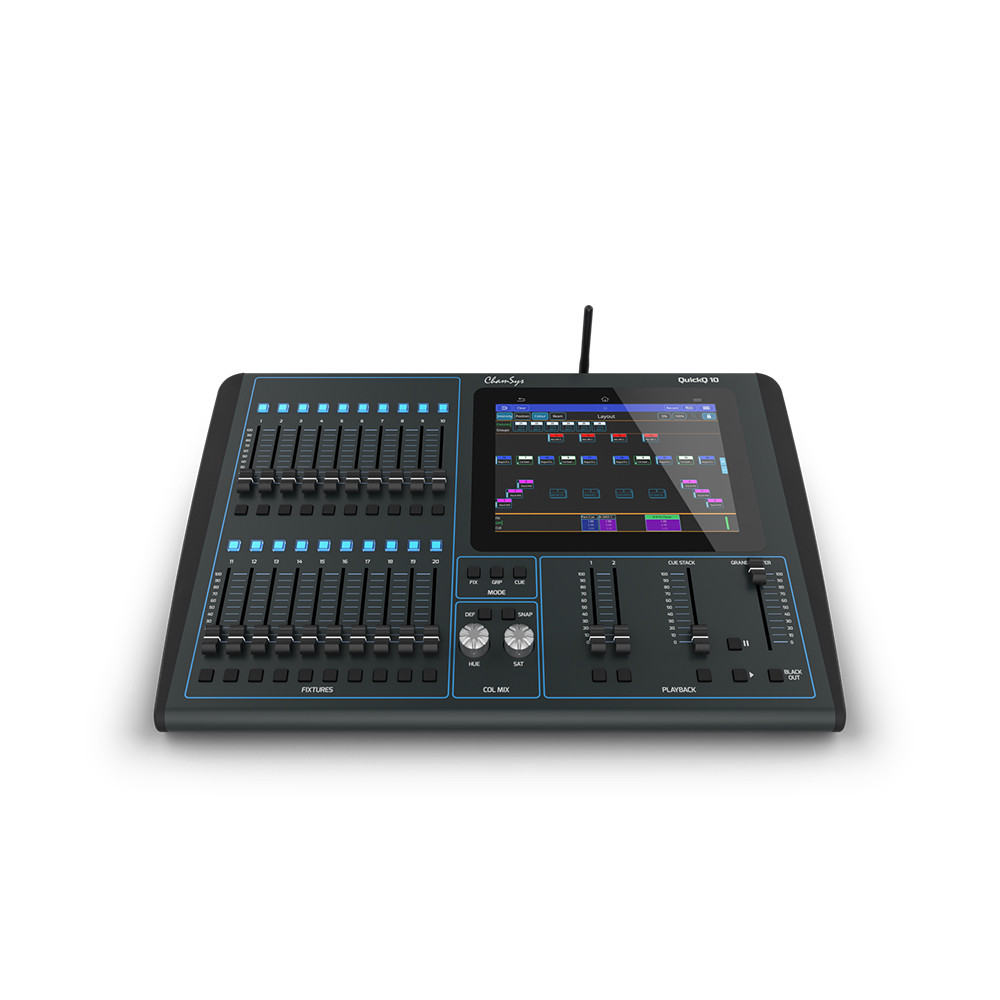

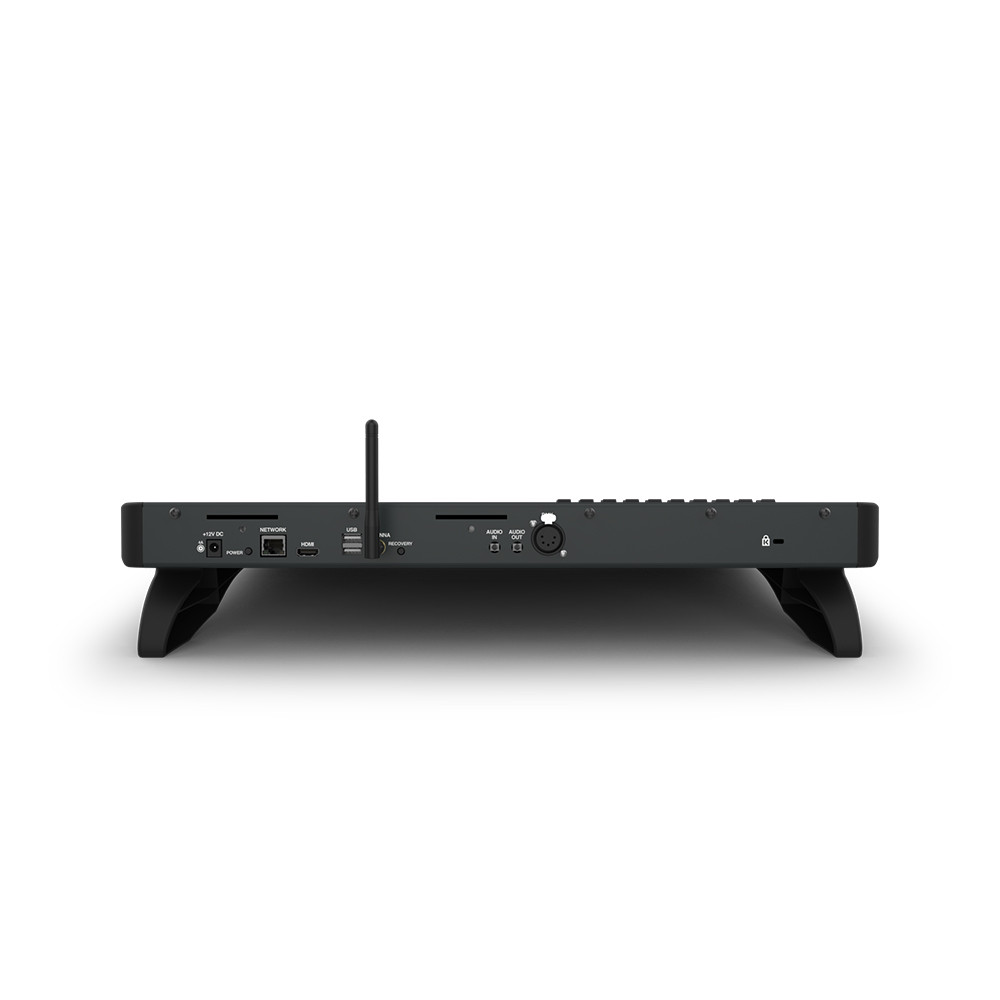

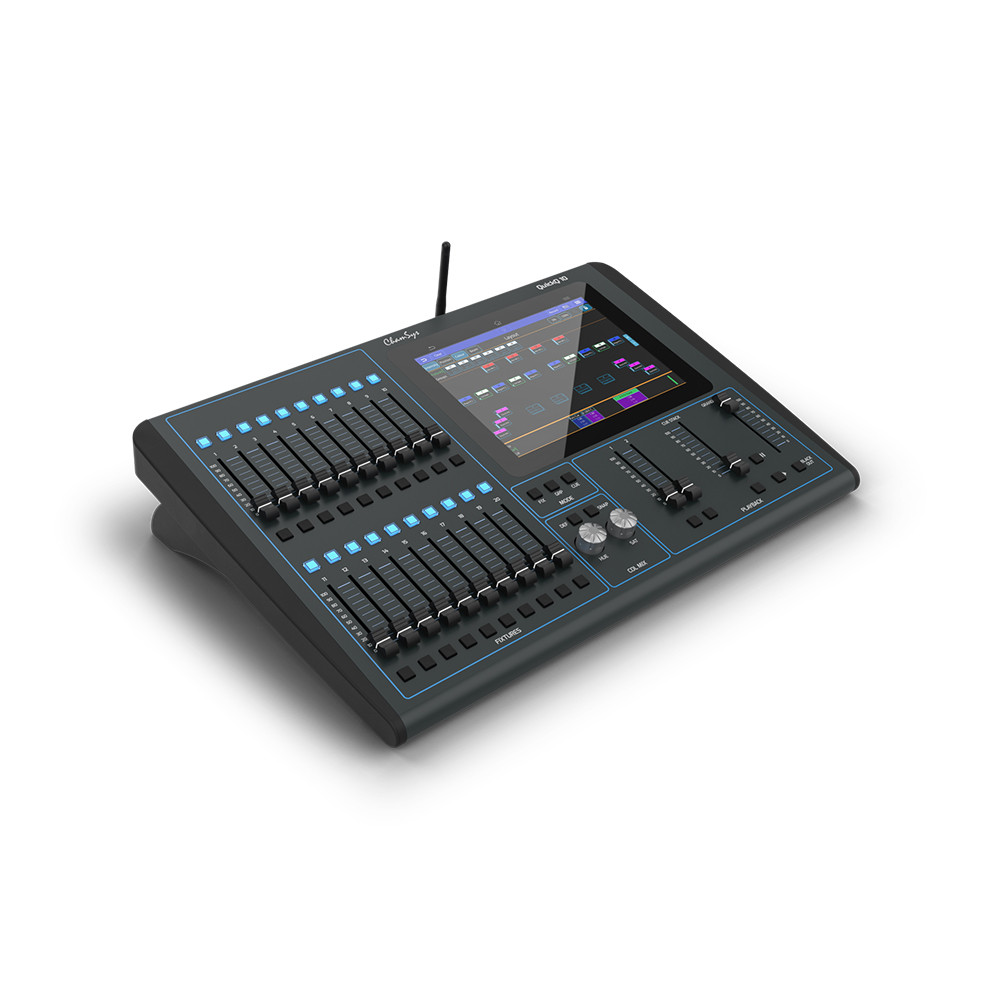

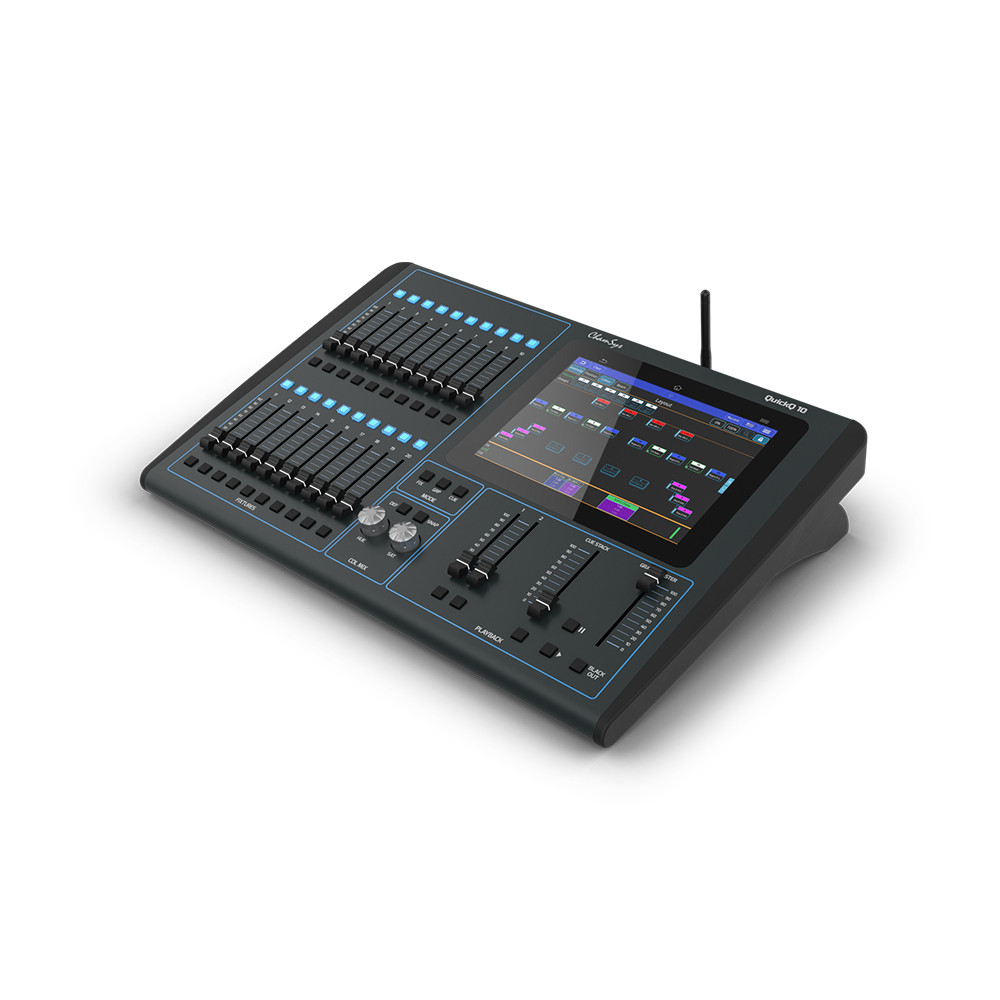

QuickQ 10 is part of ChamSys QuickQ range of user friendly and affordable lighting control consoles. The QuickQ 10 is the perfect choice console for control of dimmer and LED colour mixing fixtures. The console features a large 9.7 inch touch screen utilising a smart phone like interface for setup, programming and playback of your show.

The console can automatically detect and patch RDM compliant fixtures and features in-built WIFI enabling remote connection to the free QuickQ app available on iOS, Android and Windows tablets and phones. Easily connect the app by simply scanning the QR code on the console display.

The console has easy-to-understand buttons and faders, simple colour selection and intensity control tools, a large touch screen with zooming and scrolling at your fingertips, as well as a simple cue/chase system for playback. Specifically aimed at the novice user, the QuickQ interface easily leads you through setup, programming and operation of the console.

The console has a free to download offline programming software available for Mac and Windows. You can program your show on your computer, save it onto a flash drive and load it onto the QuickQ console.

QuickQ uses ChamSys extensive and continuously updated personality library with over 45,000 personalities.

QuickQ shows are compatible can be loaded onto any MagicQ system allowing future progression onto ChamSys more advanced MagicQ range of consoles.

Features

  • Overview

    Overview

    Modelled on smartphone icon interfaces for ease of use
    Intuitive interface allowing simple control of all fixture attributes
    The interface supports gestures such pinch zoom and scrolling
    Easily connect to the remote app on iOS & Android devices via inbuilt Wi-Fi


  • Networking

    QuickQ supports output of DMX over network via ArtNet/sACN/Pathport

  • Colour Control

    Colour Control

    A dedicated “colour control area” with Hue and Saturation encoders
    Select from inbuilt palettes and gel libraries using the touch screen
    Built in colour picker for use with LED fixtures

More Features

  • 20 multi-function fixture faders with 3 different modes - Fixture, Group and Cue
  • 3 multi-cue Playback faders: two Chase controllers and one Cue Stack, which are legended on screen
  • The console features a dedicated Grand Master fader for overall level control
  • Offline editor available for both Windows and Mac
  • Regular software updates
  • Easy Upgrades
  • Automated Patching
  • HSV Color Mixing
  • Color Picker
  • Built-in FX
  • Chase Support
  • Master Cue Stack
  • Execute Window
  • Audio Triggering
  • Tap to Time

Technical Specification

Overview
Hardware Specifications Universes supported: 1
Direct DMX Outputs 5-Pin XLR: 1
Master Playback Faders: 2 Chase, 1 Cue Stack
Multi-Function Fixture Faders: 20
Bump Buttons: Yes
Attribute Encoders: 0
Dedicated Hue/Saturation Encoders: Yes
Inbuilt 9.7” Multi-touch Display: Yes
External Monitor: 1920 x 1080 HDMI
Inbuilt Wi-Fi: Yes
Network Port: 1
USB Ports: 2
Audio Input: 1
Audio Output: 1*
MIDI Ports in/out: No
Console Weights and Dimensions Width: 525mm (20.7 inches)
Depth: 350mm (13.8 inches)
Height: 106mm (4.2 inches)
Weight: 4.07kg (8.97 lb)
Boxed Weights and Dimensions Width: 680mm (26.8 inches)
Depth: 420mm (16.5 inches)
Height: 230mm (9 inches)
Weight: 8kg (17.63 lb)
Software Specifications Max Number of DMX Channels: 512
Max Number of Fixtures Supported: 512
Max Number of Cue Stacks: 1
Max Number of Chases: 2
Midi & Midi Timecode Supported: No
OSC Supported: No
RDM Autopatch for fast show patching
Fixture library of over 30,000 fixture files
Built in FX generator
Colour picker and Gel inbuilt Gel library
Offline designer software available for Windows and Mac
Supported fixtures: LEDs & Dimmers (No Moving Lights)
Included Accessories USB Desk light: 1
Dust cover: 1
Tablet stand: 1
Wi-Fi Antenna: 1
12V power supply: 1
IEC power cable: 1
Flight Cased Weights and Dimensions Width: 650mm (25.6 inches)
Depth: 490mm (19.3 inches)
Height: 210mm (8.3 inches)
Weight (console in flightcase): 16kg (35.27 lb)
Downloads
Spec Sheet Download
Manual Download
Brochure Download

*Audio Out enabled via future software update

Please Note: This product is intended for professional use only.
