Product Description

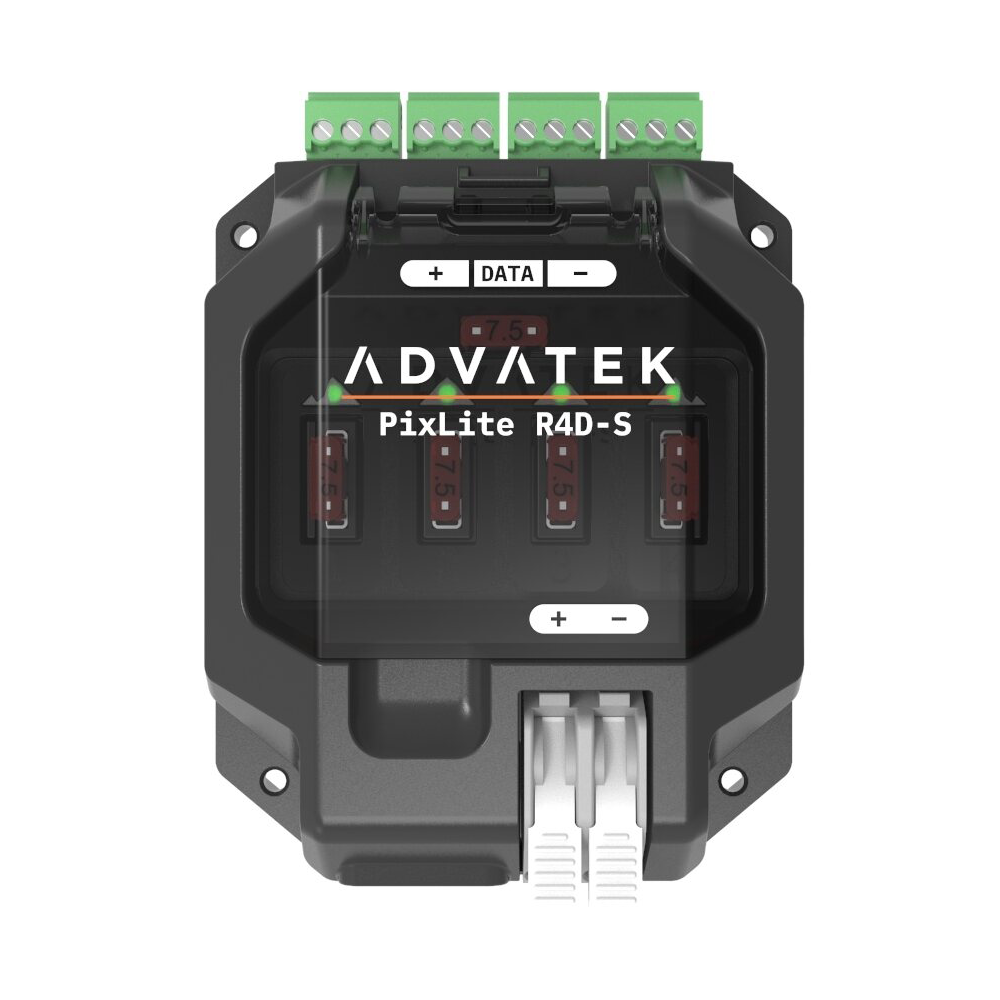

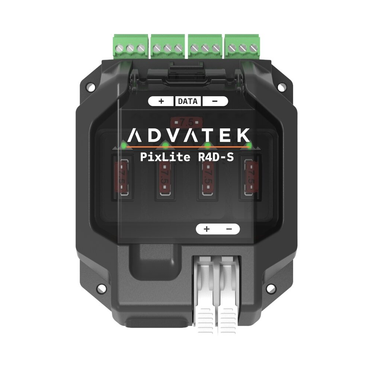

When you need to go big, go R4D-S. Designed to bring sizable projects to life, this pixel control receiver works together with the T8-S Mk3 transmitter to drive up to 2,040 RGB pixels for larger-scale installations.
For professionals looking to make that ‘peace of mind’ purchase, it has to be the PixLite® R4D-S. This controller ensures that installing and running complex, long-distance displays is easy — every time.
When used in tandem with the PixLite® T8-S Mk3 controller, the PixLite® R4D-S serves as the receiver of differential pixel data, converting it into a pixel ready signal. A long-distance capability is all you need to open up a broad range of possibilities and make unforgettable displays possible
The PixLite® R4D-S Receiver features industrial strength fault protection on all inputs and pixel outputs, making it far less prone to failure over time. While short circuit and ESD protection, as well as protection against common DC voltage levels, provides safety for commercial and industrial installations.
Each output also includes a 7.5A mini blade fuse which helps protect the LEDs and power supply, keeping the installation safe. A built-in spare fuse ensures there is always a quick replacement on hand.
Advatek equipment is proudly made in Australia for ultimate manufacturing quality control and is also covered by a new industry leading five-year product warranty for your absolute peace of mind.
Features
- Industrial grade fault protection
- Receives data up to 300+m from PixLite T8-S
- Din-rail and wall mountable
- Sleek design with flip lid access to all fuses
- Compact form
Technical Specification
| Overview | |
| Fused Pixel Outputs | 4 |
| Data Inputs (from Transmitter) | 1 |
| Dimensions | 95 x 78 x 33mm |
| Weight | 0.2kg |
| Enclosure Material | ABS |
| Mounting Options | Wall & Din-Rail Mountable |
| Input Power | 5V - 24V DC |
| Per Output Current Limit | 7.5A |
| Total Current Limit | 30A |
| Ambient Operating Temperature | -20°C to +55°C |
Please Note: This product is intended for professional use only.
