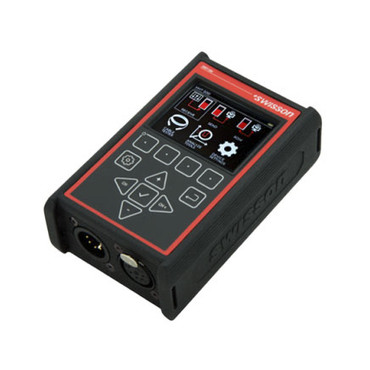

Swisson - DMX Tester & RDM / Ethernet Controller - XMT-500
Product Description
The XMT-500 is the flagship of the Swisson testing family, offering the most comprehensive feature set for modern lighting professionals. While the XMT-450 provides a streamlined focus on DMX and RDM, the XMT-500 expands these capabilities into the network domain, making it an indispensable "all-in-one" tool for complex environments that rely on both traditional cabling and Ethernet-based protocols.
Comprehensive Network & Signal Control: Building on the robust DMX and RDM foundations of the XMT-450, the XMT-500 adds full support for Art-Net and sACN via a rugged etherCON connection. Users can seamlessly send or receive values across any universe, and with the latest firmware updates, the device can even function as a portable 2-port Ethernet-to-DMX node. This allows for the remote configuration of RDM-compliant fixtures and the monitoring of network data streams with the same ease as a standard DMX signal.

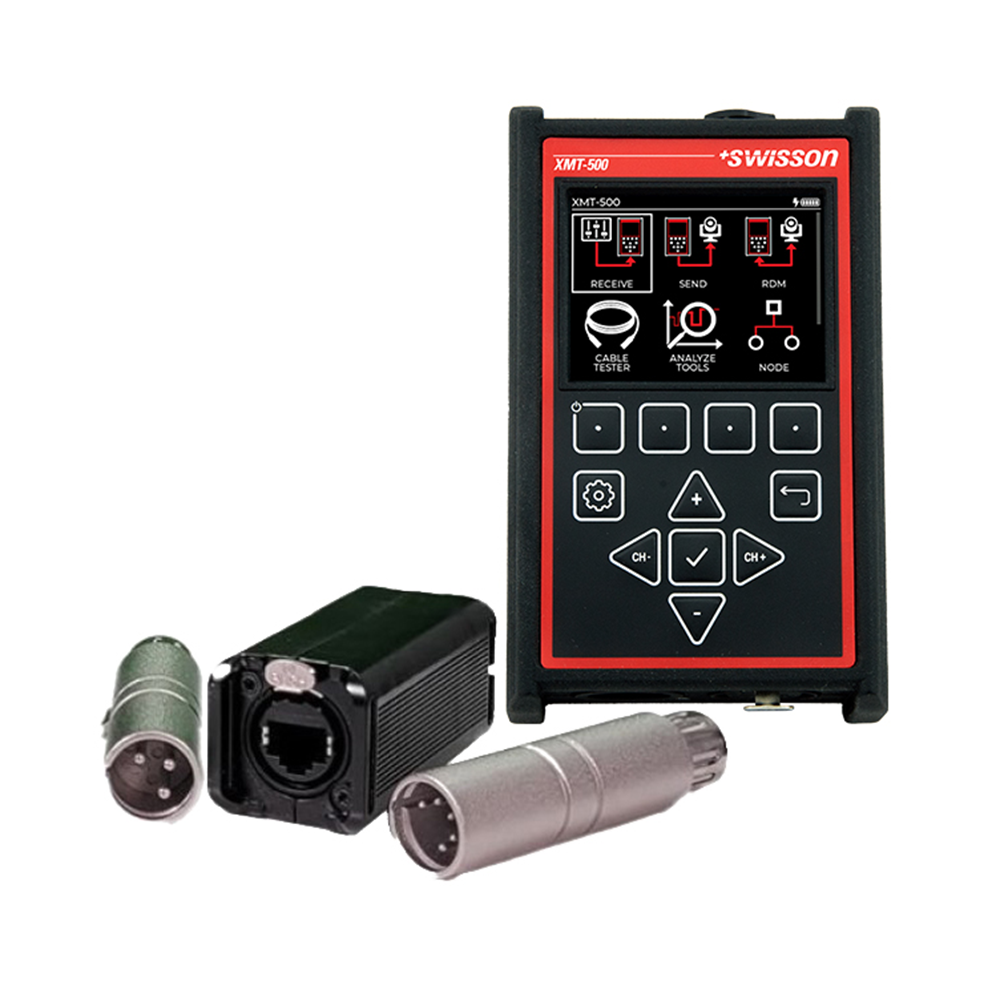

Advanced Diagnostic Suite: To ensure total system stability, the XMT-500 provides high-precision real-time insights into signal integrity. It monitors every timing aspect of DMX and RDM signals and offers data-package analysis to identify flickers or data collisions. For hardware troubleshooting, the integrated cable tester automatically scans all pin connections for 3-pin and 5-pin DMX cables, as well as RJ-45 interconnections. The included cable test dongle even allows for the effortless testing of long, pre-installed cable runs.
Premium Hardware for the Field: The XMT-500 features the same modern interface as the XMT-450, centered around a vibrant, full-color IPS TFT display that remains perfectly readable even in direct sunlight. Its intuitive menu system and multifunction soft keys allow for rapid navigation in high-pressure environments. The internal high-capacity Li-ion battery ensures hours of operation and is conveniently rechargeable via USB-C.
Future-Proof Performance: True to the Swisson philosophy of being "designed to grow with your needs," the XMT-500 is equipped with significant processing power and memory overhead. This ensures the device is ready for future feature expansions and protocol updates, making it a long-term investment for any professional lighting toolkit.
Features
- Versatile Network Integration: Supports bidirectional Art-Net and sACN data exchange across universes via a dedicated etherCON port.
- Comprehensive Signal Control: Enables full-scale DMX signal generation and real-time monitoring of incoming data.
- Remote Device Management: Provides the capability to locate and remotely configure RDM-compliant fixtures throughout the entire rig.
- Precision Diagnostics: Delivers detailed timing analysis for DMX and RDM signals to ensure system stability.
- Interconnect Verification: Features a built-in tester to confirm correct pinouts for both XLR and RJ-45 cabling.
- High-Visibility Interface: Equipped with a full-color, sunlight-readable IPS TFT display for clear viewing in any environment.
- Modern Power Solution: Includes an internal Li-ion battery with universal USB-C charging capabilities.
Technical Specification
| Overview | |
| Weight | 0.445 kg (1 lb.) |
| Dimensions (L x W x H) | 122 x 75 x 43 mm (4.8” x 2.95” x 1.7”) |
| Ambient temperature | -20 to +50°C (-4 to +122°F) |
| Battery | 3.6V 3200mAh Li-ion |
| USB-C | 5V DC 7.5W |
| etherCON | Neutrik |
| XLR 5-pin male | Neutrik |
| XLR 5-pin female | Neutrik |
| Display | 2.4” IPS TFT |
| Ethernet | 10BASE-T / 100BASE-TX, auto negotiating, auto MDI-X |
| Network protocols | sACN, sACN draft version (v0.2), Art-Net 1 through 4 |
| DMX | ANSI E1.11 |
| RDM | ANSI E1.20 |
| Signal ports | EIA-485 |
Please Note: This product is intended for professional use only.
Product Reviews
-
Fantastic DMX/RDM tester, however
Posted by Lightz on 10th Nov 2016
The Swisson XMT -350 is a fantastic piece of kit and is probably the most comprehensive DMX tester/ RDM configurator on the market. Easy to use, big back lit display and great logical test processes. Sadly the XMT-350 will not let you download DMX profiles using the current macOS (Sierra) as advertised. I raised the issue with Swisson support and they were able to reproduce the problem, however they were not able to give me a timeline for when a firmware update would solve this. However this should not be problem for many since running Windows on a MAC via bootcamp enables synchronising data.
