Product Description

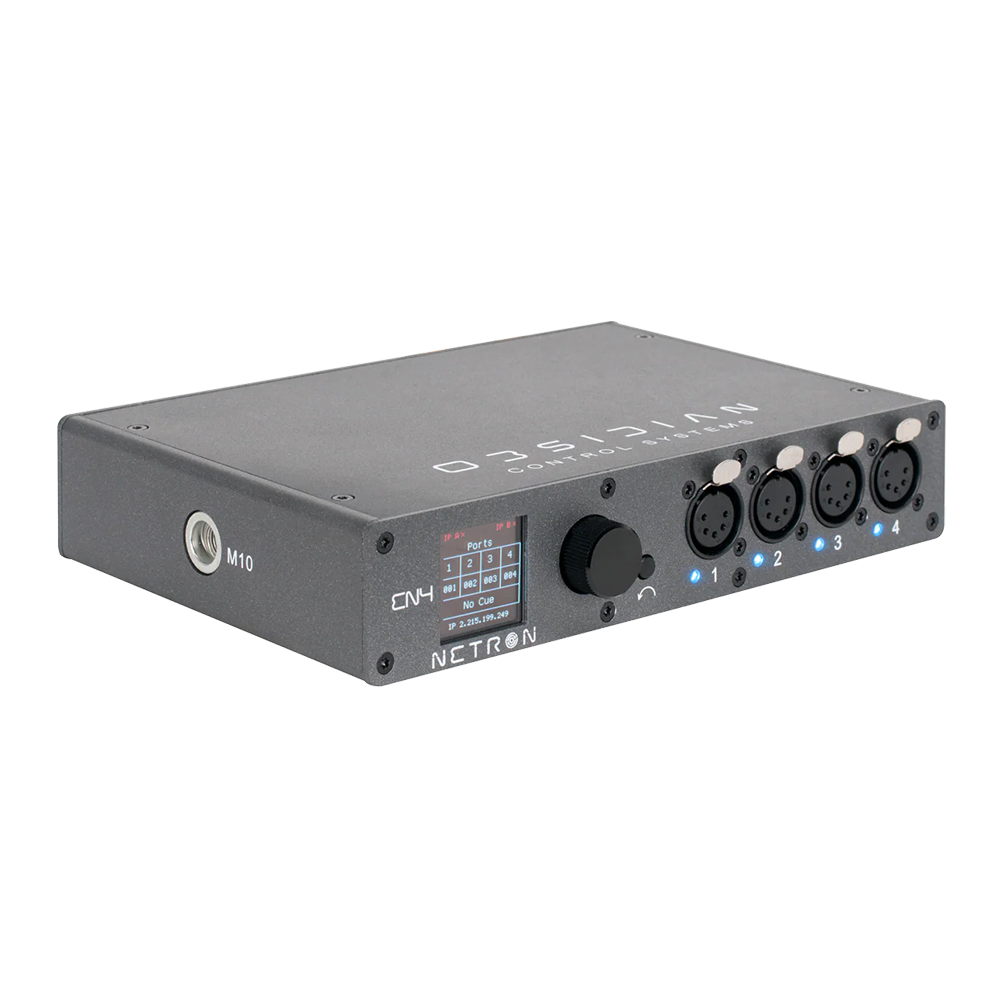

The Netron EN4 is a powerful Ethernet to DMX gateway with four RDM compatible ports. Designed for live production and installations with a rugged housing and high-performance processing it offers flexible mounting options to cover any situation.
Features
- RDM, Art-Net and sACN support
- Factory and user presets for plug and play setups
- Line Voltage or PoE powered
- 1.8” OLED Display with rotary knob
- 99 Internal cues with fade and delay time
- Remote configuration via internal webpage
- Powder-coated aluminum ½ rack housing
- Unlocks ONYX NOVA 4-Universe License
- NETRON CLU for remote configuration and firmware updates
Technical Specification
| Overview | |
| Mounting | Standalone Truss-mount (M10 or M12 mounting hole) Wall mount horizontal or vertical (included) DIN Rail horizontal or vertical (included) Rack mount option (requires NET Shelf) |
| Connections | (4) 5pin XLR DMX/RDM ports Optical and galvanic isolation Bidirectional for DMX In and Output Full color OLED display Encoder w. Push to Select / Exit Button IP65 Locking Power In/Thru (2) Locking RJ45 Ethernet network (Low Latency Switch) |
| Protocols | sACN E1.31 Art-Net DMX512-A E1.11 (In / Out) RDM E1.20 Ethernet Port Speed 10/100/1000Mbps VLAN Group Support MDI / MDIX Port Sensing HTTP Remote Commands (Post, Get) HTML Web Remote |
| Specifications | Length: 139 mm (5.5 in.) idth: 215 mm (8.5 in.) Height: 42 mm (1.65 in.) Weight: 1 kg (2.2 lbs) AC 100-240V nominal, 50/60 Hz PoE 802.3af Power Consumption: 5W cETLus / CE / FCC / IP20 |
Please Note: This product is intended for professional use only.
