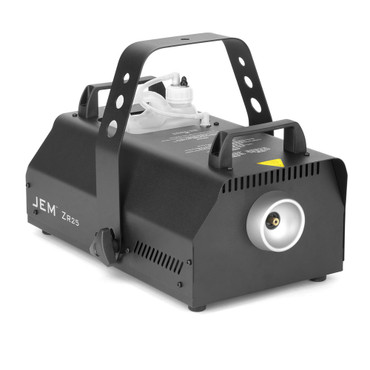

Martin - JEM ZR25 Fog Machine

£806.40 (inc V.A.T.) £672.00 (exc V.A.T.)
11.20 KGS
Please contact sales for stock and shipment information on: 020 8254 4840 or via
Calculated at checkout

Product Description

The JEM ZR25 is a small, yet powerful fog machine designed to deliver superior and uninterrupted performance in demanding professional applications. Via its 1,150 W heat exchanger, the JEM ZR25 produces large amounts of fog ideal for small to medium-sized venues and stages in both install and rental markets.The JEM ZR25 features variable output control for more subtle effects and is fully up-to-date with an integrated digital remote control, and DMX with RDM. The entire JEM ZR range is compatible with a wide range of JEM Pro fog fluids. As machines designed and built to last, the JEM ZRs will continue to perform with great output and low consumption.

  • Small but powerful fog machine
  • Exceptional performance and output for its size
  • Simple plug-and-play operation via remote control or DMX


  • Robust roadworthy design
  • Integrated Digital Remote Control
  • DMX with RDM
  • Floor standing or truss mounting (hanging bracket included)
  • 1,150 W heat exchanger
  • 600 m³ (21,189 ft.³) per minute fog output
  • Variable output control for subtle effects
  • Continuous effect output
  • Compatible with a wide range of JEM Pro-Fog fluids
  • 2.5-l Fluid reservoir with quick-connect fitting
  • Easy external fluid connection
  • Optional Ducting Kit

Technical Specification

Physical Length: 485 mm (19.1 in.)
Width: 335 mm (13.2 in.)
Height: 242 mm (9.6 in.)
Height with hanging bracket: 333 mm (13.2 in.)
Weight, dry: 11.2 kg (24.7 lbs.)
Weight, filled: 13.7 kg (30.2 lbs.)
Performance Coverage volume: 600 m3 (21,189 ft3) per minute
Fluid consumption (max.): 100 ml per minute
Maximum operating time, maximum output, 2.5 l of fluid: 1.2 hours
Ready time: 7-minutes
Continuous effect output
Control & Programming Control options: Integrated digital remote control, DMX, master/client link mode
Control parameters: Continuous or timer-controlled output
Fog: Variable output control, 0-100%
DMX channels: 1
External fluid control: Fluid sensing
DMX compliance: ANSI E1.11 - USITT DMX512-A
RDM compliance: ANSI/ESTA E1.20 RDM
Construction Housing: Steel and aluminum
Color: Black
Heat exchanger: 1150 W, thermally protected
Fluid pump: Oscillating piston, high pressure
Fluid management: Fluid out sensing, sealed for transportation
Fluid reservoir: 2.5 l drop-in reservoir with quick-connect fitting
Remote Control: Integrated digital remote with 3 m (9.84 ft.) cable, 3-pin XLR connector
External Fluid Control: Fluid sensing
Hanging bracket: Integrated yoke with safety attachment point
Installation Mounting: Standing or hanging
Orientation: Up to +/-40° from horizontal
Clearance around machine: 100 mm (4 in.)
Connections AC Power: Neutrik PowerCON TRUE1
DMX, link mode in/out: 5-pin locking XLR
Remote control: 3-pin locking XLR
Firmware: AVR socket
Electrical EU Model:
AC power: 220-240 V nominal, 50/60 Hz
Main fuse: 6.3 AT (slow blow), 250 V
Typical power and current: 1200 W, 5.3 A*

*Measurements made at nominal voltage. Allow for a deviation of +/- 10%.:
Thermal Maximum ambient temperature (Ta max.): 40° C (104° F)
Minimum ambient temperature (Ta min.): 5° C (41° F)
Exterior surface temperature, steady state: 30° C (86° F)
Maximum nozzle temperature: 290° C (554° F)
Approvals EU safety: EN 60 335-1+A15, EN62233
EU EMC: EN 61000-6-3
EU immunity: EN 61000-6-1
US safety: UL 998
Canadian safety: CSA C22.2 No 104
Australia/NZ: RCM (pending)
United Kingdom: UKCA
Included Items Fluid reservoir, 2.5 l: P/N 34300521
JEM ZR Series Integrated Digital Remote Control: P/N 92765048
Power input cable, EU, PowerCON TRUE1, stripped ends, 3 m (9.8 ft.): P/N 11501043
Power input cable, US, 10 A, PowerCON TRUE1, molded NEMA 5-15P, 3 m (9.8 ft.): P/N 11501044
Data Sheet Download
User Manual Download

Please Note: This product is intended for professional use only.
