Product Description

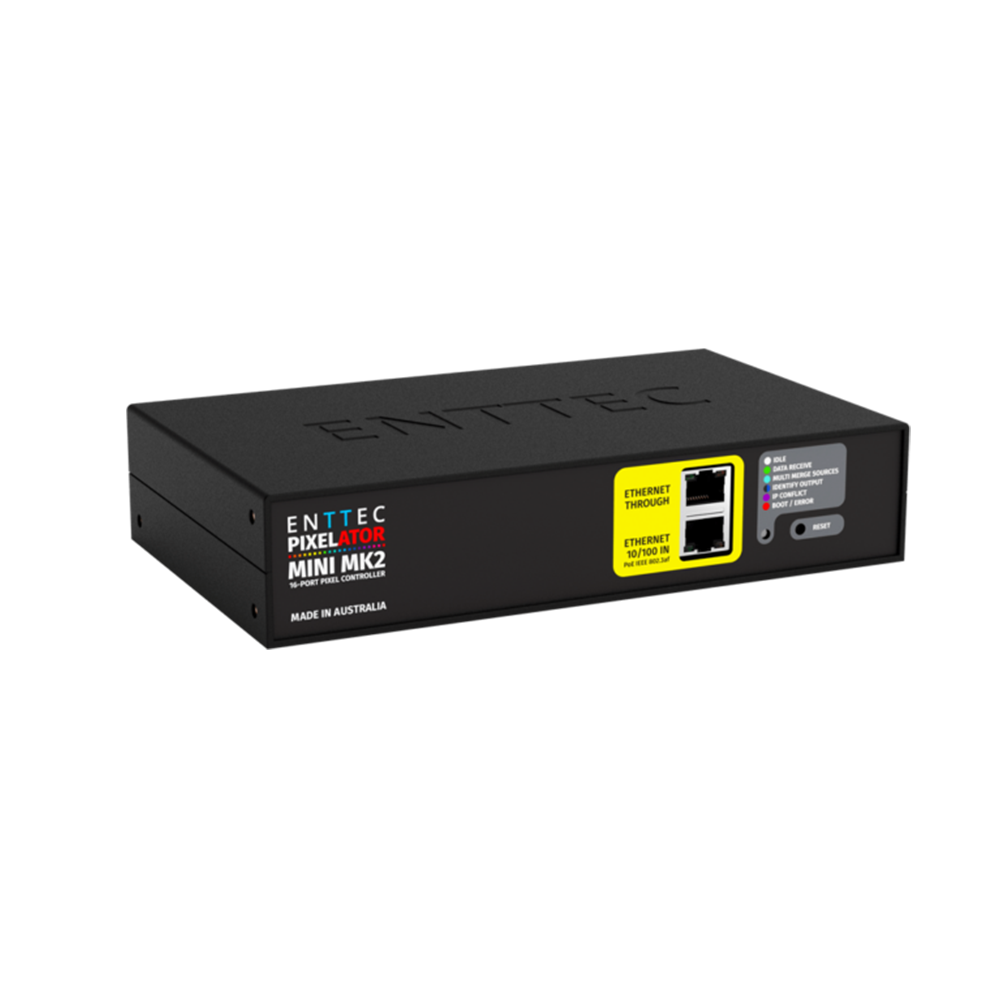

The ENTTEC PIXELATOR MINI MK2 is a highperformance 16-port Ethernet pixel controller designed for large-scale LED installations, converting up to 128 Universes of Art-Net, sACN, and ESP protocols into SPI within the PLINK system.
PIXELATOR MINI MK2 guarantees reliable data integrity over 300 metres and connects seamlessly to PLINK INJECTORS, extending signals up to 3 metres to pixel fixtures.
Equipped with dual Ethernet ports for daisychaining and Power over Ethernet (PoE) support, the PIXELATOR MINI MK2 streamlines network setup and power delivery for complex installations.
Supporting over 20 pre-configured LED protocols with options for custom protocol creation, it offers unmatched versatility for tailored lighting requirements. Configuration and firmware updates are managed via an intuitive localhost web interface.
Paired with indoor or outdoor PLINK INJECTORS or CVC4 dimmers, the PIXELATOR MINI MK2 delivers scalable, reliable LED control for even the most demanding installations, combining adaptability, performance, and simplicity.
Features
- Converts eDMX (e.g. Art-Net, sACN, and ESP) to SPI for pixel control over long distance.
- Dual RJ45 connectors for daisy-chain connectivity at 10/100 Mbps speeds.
- 16* RJ45 output ports fully compliant with Cat5e/Cat6 cable for easy installation.
- Up to 128 Universes (8U per port) pixel control.
- Active IEEE 802.3AF Active PoE or 12-24v DC power input.
- All ports feature ESD surge protection and resettable fuses to block external faults & electrical noise propagation through control infrastructure.
- Compatible with ENTTEC PLINK INJECTOR range.
- Compatible with ENTTEC CVC4, CCC4 RGBW auto-addressable LED dimmer.
- Allows users to create and customise SPI pixel protocols (criteria apply, see ‘Custom Protocol Creation Guide’ document).
- Pixel arrangement including pixel order, pixel grouping for each PLINK output is individually configurable.
- Multiple mounting options: 1U Half Width Rack, 19” Rack, Surface mount, TS-35 DIN mount.
Video
One box to rule them all? Full demo of the ENTTEC Pixelator Mini Mk2
Join Nic from ENTTEC as he breaks down the Pixelator Mini Mk2: a compact, installation-grade hub that drives up to 128 universes, 30+ protocols, and over 21,000 pixels with ease.
Technical Specification
| Overview | |
| Connectors | 1 x Power input (DC Jack), 2 x Ethernet (RJ45), 16 x PLINK output (RJ45) |
| Input voltage | 12-24V DC / PoE IEEE802.3AF |
| Power input | DC jack (12V PSU & international plugs included) |
| Max. power draw | 3.2W |
| Input port | 1 x RJ45 Ethernet / PoE IEEE 802.3af |
| Through port | 1 x RJ45 Ethernet (for daisy-chaining devices) |
| Input protocols | Art-Net, sACN, ESP |
| Output ports | 16 x RJ45 PLink output |
| Max. universe output | 128 universes |
| LED indicators | Forward-facing status LED plus network link/activity (integrated into RJ45 ports) |
| Network speed | 10/100Base-T |
| Network configuration | Static / DHCP |
| Configuration & update | Web interface |
| ESD Protection | Resettable fuse & TVS suppression per port |
| Surge Protection | Yes (all ports) |
| Body material | ABS + anodised aluminium |
| IP rating | IP20 |
| Environmental operating temperature | 0°C to 50°C / 32°F to 122°F |
| Environmental operating humidity | 5 – 95% (non-condensing) |
| Cooling method | Convection |
| Mounting | Rack, surface & TS35 DIN rail mountable (clips, screws & powder-coated aluminium ears included) |
| Unit dimensions | 200mm x 120mm x 42mm |
| Unit Weight | 0.47kg /1.04lbs |
| Shipping Dimensions | 335mm x 265mm x 78mm |
| Warranty | 3-year return to base manufacturer warranty |
| Compliance | RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA) |
Please Note: This product is intended for professional use only.
