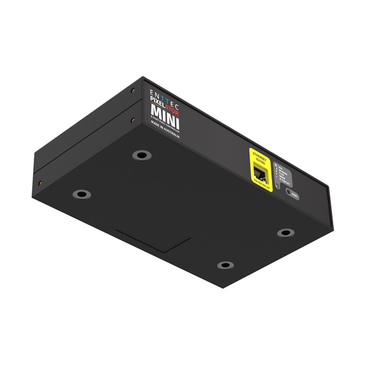

Enttec - Pixelator Mini - 16 – Universe Ethernet to Pixel Converter
Product Description
The ENTTEC PIXELATOR MINI is a high-performance 8-port Ethernet pixel controller designed for largescale LED installations, converting up to 32 Universes of Art-Net, sACN, and ESP protocols into SPI within the PLINK ecosystem.
PIXELATOR MINI guarantees reliable data integrity over 300 metres and connects seamlessly to PLINK INJECTORS, extending signals up to 3 metres to pixel fixtures.
Supporting over 20 pre-configured LED protocols with options for custom protocol creation (criteria apply), the PIXELATOR MINI offers versatility for tailored lighting requirements. Configuration management and firmware updates are accessible via its local host web interface, ensuring intuitive control and seamless updates.
For optimal project adaptability, the PIXELATOR MINI can be paired with either indoor or outdoor PLINK INJECTORS to suit your chosen pixel fixtures or with CVC4 Auto-Addressing Constant Voltage LED Dimmers, delivering large-scale LED control with minimal configuration and maximum flexibility.
Features
- Converts eDMX (e.g. Art-Net, sACN, and ESP) to SPI for pixel control over long distance.
- 1* RJ45 Ethernet inputs (10/100 Mbps) to 8* RJ45 output ports, fully compliant with Cat5e/Cat6 cable for easy installation.
- Up to 32 Universes (4U per port) pixel control featuring overdrive mode.
- Active IEEE 802.3AF Active PoE or 12-24v DC power input.
- All ports feature ESD surge protection and resettable fuses to block external faults & electrical noise propagation through control infrastructure.
- Compatible with ENTTEC PLINK INJECTOR range.
- Compatible with ENTTEC CVC4, CCC4 RGBW auto-addressable LED dimmer.
- Allows users to create and customise SPI pixel protocols (criteria apply, see ‘Custom Protocol Creation Guide’ document).
- Pixel arrangement including pixel order, pixel grouping for each PLINK output is individually configurable.
- Multiple mounting options: 1U Half Width Rack, 19” Rack, Surface mount, TS-35 DIN mount.
Video
ENTTEC Tech Tips: Pixelator Mini Unboxing & Intro
The ENTTEC Pixelator Mini is a compact Ethernet-DMX to pixel converter designed for professional installations. When paired with ENTTEC's PLink Injectors, it's able to control up to 2,720 RGB 8-Bit pixels. With perfect synchronisation across all eight of its PLink outputs.
Technical Specification
| Overview | |
| Input voltage | 12-24V DC / PoE IEEE802.3AF |
| Power input | DC jack (12V PSU & international plugs included) |
| Max. power draw | 8W |
| Input port | 1 x RJ45 Ethernet / PoE IEEE 802.3af |
| Input protocols | Art-Net, sACN, ESP |
| Output ports | 8 x RJ45 PLink |
| Output protocol | SPI in PLink system |
| Max. universe output | 32 universes |
| LED indicators | forward-facing status LED plus network link/activity (integrated into RJ45 ports) |
| Network speed | 10/100Base-T |
| Network configuration | Static / DHCP |
| Configuration & Update | Web interface |
| ESD Protection | Resettable fuse & TVS suppression per port |
| Surge Protection | Yes (all ports) |
| Body material | ABS + anodised aluminium |
| IP rating | IP20 |
| Environmental operating temperature | 0°C to 50°C / 32°F to 122°F |
| Environmental operating humidity | 5 – 95% (non-condensing) |
| Cooling method | Convection |
| Mounting | Rack, surface & TS35 DIN rail mountable (clips, screws & powder-coated aluminium ears included) |
| Unit dimensions | 200mm x 120mm x 42mm |
| Unit Weight | 0.43 kg / 0.95 lbs |
| Shipping Dimensions | 335mm x 265mm x 78 mm |
| Shipping Weight | 1.15kg / 2.54lbs |
| Warranty | 3-year return to base manufacturer warranty |
| Compliance | RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA) |
Please Note: This product is intended for professional use only.
