Product Description
With 2 Universes of Ethernet to DMX conversion featuring Art-RDM support, Power over Ethernet (PoE) or a flexible 12-24v DC input, the ODE MK3 allows for fast deployment of DMX systems compatible with a wide range of devices.

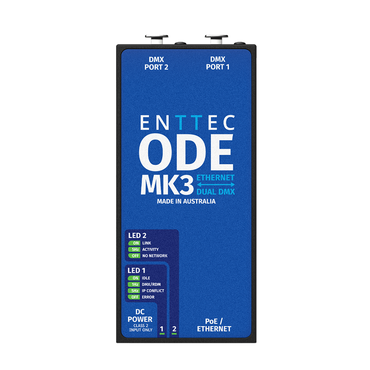

The ODE MK3 is a robust, reliable, installation-grade, Ethernet to DMX converter engineered to connect DMX fixtures to your Ethernet network infrastructure. Now you can expand your lighting project to the next level
With 2 Universes of bi-directional eDMX to DMX conversion and Art-RDM support, the ODE MK3 is compatible with a wide range of devices and allows for fast deployment of your DMX system. Simply connect, configure and take control!
Additionally, this Ethernet to DMX/RDM gateway is packed with installer-friendly features for a speedy installation and configuration, all managed through a web UI – and contained in a compact, portable form factor.
Easy web page configuration
Configuration is managed through the localhost web interface to simplify commissioning and updates. Consequently, the ODE MK3 to be configured from any computer on your network.
Flexible power options
Power the ODE MK3 using IEEE 802.3af PoE (Power over Ethernet) or DC 12-24v input.
Sync mode
All ENTTEC Ethernet hardware accepts ArtSync to fully synchronise Art-Net data across your installation when receiving Art-Net from the same source to protect against content tearing and ensure a professional looking output across your rig.
Time=saving and installer-friendly
This Ethernet to DMX converter is packed with installer-friendly features including industry standard 5-pin XLR ports to simplify wiring.
Also, a ‘Current Port Buffer’ within the web interface allows live DMX values to be viewed from the localhost web interface to troubleshoot your installation. Upon receiving power, the device is ready to for action within seconds.
Monitor activity
The LED indicators allows you to monitor connectivity & status in a quick glance.
Protocols
The ODE Mk3’s primary functionality is to convert between Ethernet-DMX protocols and USITT DMX512-A (DMX). The following conversions are available with the ODE Mk3: Art-Net – DMX (with/without RDM. ANSI E1.20 RDM supported) DMX – Art-Net (Broadcast or Unicast) sACN – DMX DMX – sACN (Multicast or Unicast) ESP – DMX DMX – ESP (Broadcast or Unicast)
Features
- Two bi-directional female 5-pin DMX ports with optional RDM (E1.20) support.
- IEEE 802.3af PoE (Power over Ethernet) or DC 12-24V input.
- Support for Art-Net 4, sACN and ESP to DMX conversion.
- Support for DMX -> Art-Net (Broadcast or Unicast) / DMX -> sACN (Multicast or Unicast).
- HTP/LTP merging support for up to 2 eDMX sources. (Network -> Physical DMX).
- Intuitive device configuration and updates through the inbuilt localhost web interface.
- 10/100 Mbps network speed.
- ‘Current Port Buffer’ allows live DMX values to be viewed in the web UI.
- Configurable DMX output refresh rate.
Video
ENTTEC Tech Tips: ODE Mk3 Unboxing
Find out why we love the ODE Mk3 so much with the replay of the live unboxing
Technical Specification
| Overview | |
| Connectors | 1* EtherCon Port (RJ45) 2* Bi-directional DMX (Female XLR5) 1* Power Input (DC Jack) |
| IP Rating | IP20 |
| Input Voltage | 12-24V DC / PoE IEEE802.3AF |
| Current Draw | 57-187mA |
| Max. Power Draw | 2.3W |
| LED Indicators | Status indicator Network Link / Activity indicators |
| eDMX Protocols | Art-Net: Art-RDM sACN: ESP |
| DMX Protocols | USITT DMX512-A ANSI E1.20 RDM |
| DMX Protocols | Break time: 300ms Mark after Break (MAB): 15ms |
| Max. Channels | 2 Universes (1024ch) |
| Max. Refresh Rate | 44FPS |
| Art-Net Merging | 2 Sources |
| Configuration Software | Web Browser |
| Firmware Updates | Web Browser |
| Environmental operating temperature | 0°-50°C 32°-122°F |
| Environmental operating humidity | 5- 95% (non-condensing) |
| Body material | ABS Plastic |
| Unit dimensions | 129x58x40 mm |
| Unit weight | 0.10kg / 0.22lbs |
| Shipping dimensions | 235*159*69 mm |
| Shipping weight | 0.45kg / 0.99lbs |
| Warranty | 3-year return to base manufacturer warranty |
Please Note: This product is intended for professional use only.
