Product Description

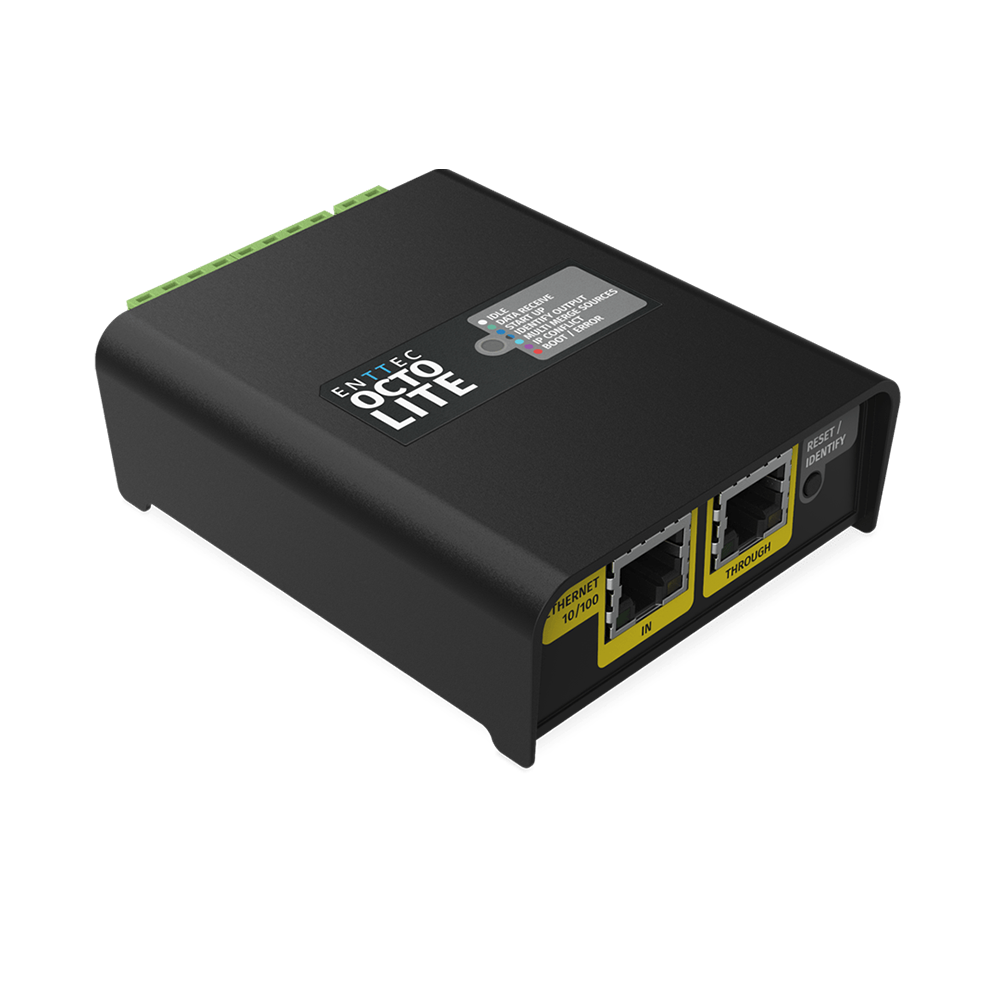

The ENTTEC OCTO LITE is a compact, and DIN-railcompatible 8U pixel controller engineered for immediate Ethernet-to-SPI conversion. It efficiently processes up to 8 universes of Art-Net, sACN, and ESP over Ethernet, delivering 4 universes per output supporting LED fixtures with clock line
Designed for maximum versatility, the OCTO LITE natively supports over 20 industry-standard pixel output protocols while also enabling custom protocol creation for specialised applications (refer to the Custom Protocol Creation Guide).
Designed for maximum versatility, the OCTO LITE natively supports over 20 industry-standard pixel output protocols while also enabling custom protocol creation for specialised applications (refer to the Custom Protocol Creation Guide).
Built for reliability and ease of use, the OCTO LITE features an identity button for quick wiring verification and a wide 5-60V DC input range, ensuring compatibility with diverse LED fixture’s power requirement. Encased in a slim 4-DIN module, it provides a robust yet space-efficient solution for professional lighting installations.
- Supports up to 8 universes of Art-Net, sACN, and ESP for pixel control.
- Extensive pixel output protocol support, including data and clock-based configurations.
- Custom pixel protocol adjustment and creation for specialised applications.
- Expandable networking via daisy-chain connectivity for optimized data distribution.
- DHCP and Static IP address support for flexible network integration.
- Grouping functionality to efficiently reduce input channel requirements.
- Port Sync ensures all ports stay synchronised, preventing inconsistencies and ensuring smooth operation.
- Versatile mounting options: surface or TS35 DIN rail compatibility. Accessory sold separately.
- Identify/Reset button enables quick wiring verification without requiring a network connection.
- User-friendly web interface for intuitive configuration and firmware updates.
Technical Specification
| Overview | |
| Connectors | 2 x Network (RJ45), 2 x Data port (4Pin Screw Terminal), 1 x Power Port (2Pin Screw Terminal) |
| IP rating | IP20 |
| Input voltage | 5-60V DC |
| Max. power draw | 5W |
| Max. heat dissipation | 4.5 W |
| eDMX input protocol | Art-Net / sACN / ESP |
| Network speed | 10/100Base-T |
| Network discovery | ENTTEC EMU software |
| Network configuration | Static (Default 192.168.0.10) / DHCP |
| Recommended Network Device Quantity Per Chain | Chains of up to 8 devices give optimum synchronisation between outputs |
| Data output type | SPI (NZR) |
| Max. eDMX -> Pixel conversion per device | 8 Universes (4,096 channels) |
| Max. Pixels Controllable Per Device | RGB / 1,360 (680 per port) RGBW / 1,024 (512 per port) |
| Max frame rate | 100fps |
| Firmware updates | Web Interface |
| LED indicators | Forward-facing LED indicator Network link/activity (integrated into RJ45 ports) |
| Cooling method | Convection |
| Operating temperature | -20°C to 50°C /-4°F to 122°F |
| Operating humidity | 5 to 95% (non-condensing) |
| Body material | ABS plastic |
| Mounting options | Surface & TS35 DIN Rail mount |
| Unit dimensions | 100.5mm x 77.9mm x 31 mm |
| Unit weight | 0.08kg / 0.18lbs |
| Shipping dimensions | 160mm x 145mm x 43 mm |
| Shipping weight | 0.15kg / 0.33lbs |
| Warrantyt | 3-year return to the base manufacturer warranty |
| Compliance | FCC (USA), RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK) |
| Downloads | |
| Data Sheet | Download |
Please Note: This product is intended for professional use only.
