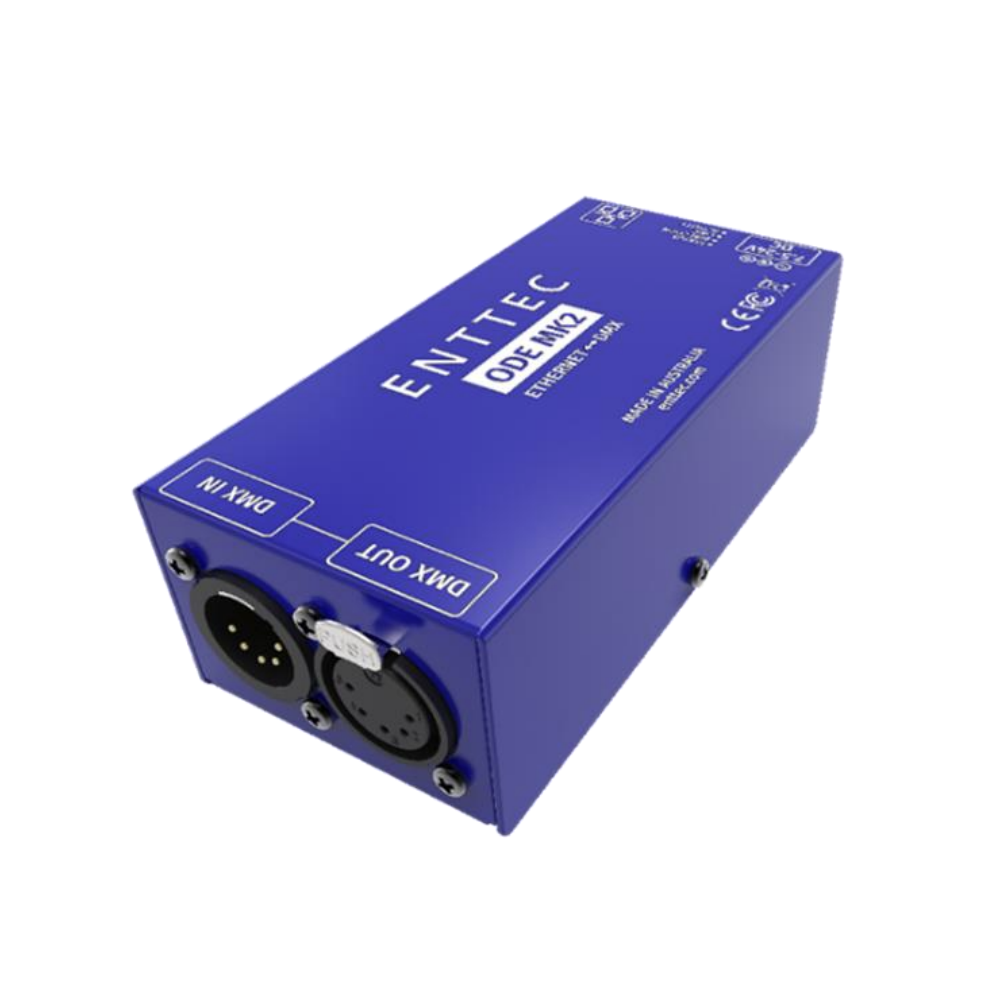

Enttec - ODE MK2 70405
Product Description
The ODE MK2 and ODE PoE MK2 are capable of converting ethernet based lighting protocols (including Art-Net and sACN) to physical DMX and vice versa.
Male and female XLR5 connectors allow the ODE MK2 and ODE PoE MK2 to be built into a DMX chain whilst in receive mode, without the need for adaptors.
ODE MK2 and ODE PoE MK2 come with the ability to merge two incoming sources when sent on the same Universe from two different IP addresses. The ODE MK2 and ODE PoE MK2 will merge the two incoming sources either with LTP or HTP merging as defined within its web configuration.
ArtRDM -> RDM (E1.20) conversion is supported when the ODE MK2 and ODE PoE MK2 has been configured as DMX Output and the Protocol is set to Art-Net.
The PoE variant supports Power over Ethernet (IEEE 802.3af). This can cut down on cabling required and allows for the ODE MK2 to be located in more remote locations without a local power supply.
The ODE MK2 and ODE PoE MK2 both feature ENTTEC’s intuitive web-based configuration found in our premium products including, configuration, diagnostics, and firmware update support.
Features
- 1 Universe Ethernet to DMX (Output mode).
- 1 Universe DMX to Ethernet (Input mode).
- Supports the Art-Net, Streaming ACN (sACN E1.31) & ESP DMX over Ethernet protocols.
- Easy to configure & update through any web browser.
- Define the DMX refresh rate.
- Supports RDM over Art-Net (controller) & RDM (E1.20).
- HTP/LTP Merging support: up-to 2 Art-Net sources (if enabled).
- Supports Art-Net Broadcast or Unicast (Input mode).
- 1 RJ45 ‘EtherCon’ connector (10/100 Mbps).
- Static or Dynamic (DHCP) IP configuration (DHCP by default).
- DMX XLR5 connectors.
- Supports IEEE 802.3af Power over Ethernet (PoE variant SKU 70406 only).
