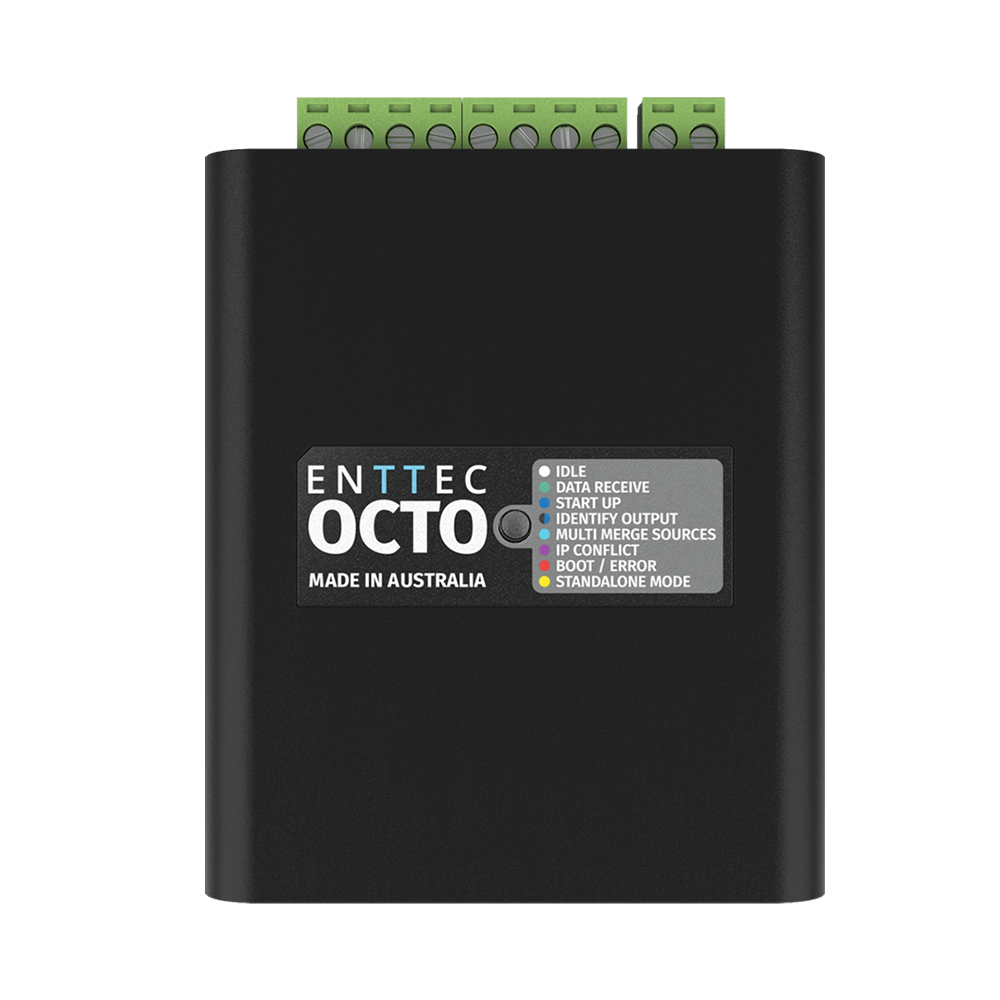

Enttec - OCTO MK2 DIN rail LED pixel controller
Product Description
Take your projects to the next level with the ENTTEC OCTO MK2. This robust SPI LED controller efficiently converts up to 16 universes of DMX over Ethernet to pixel data (8U per output), with auto activation of Overdrive mode when configured to output more than 4U per port.
Make LED strip and pixel dot system deployment a breeze with the OCTO MK2. With network chaining and direct power from the LED pixel source, fast installation has never been easier.
The user-friendly OCTO MK2 comes equipped with convenient features such as an identity button for wiring checks and a wide input voltage range (4-60VDC) all packed into a slim 4 DIN form factor.
The OCTO MK2 supports over 20 pre-listed pixel output protocols and supports immediate custom pixel protocol creation (criteria apply, see user manual).
With the inbuilt Fx engine, the OCTO MK2 allows you to create and edit gradient effects with real-time preview effortlessly. The device's web interface offers a seamless editing experience and can be configured to run standalone upon power-up, eliminating the need for a DMX source.
Features
- Supports up to 16 universes of Art-Net, sACN, ESP and KiNet with overdrive mode.
- Extensive protocol support, including both data and clock-based configurations.
- Custom pixel protocol creation for specialised applications.
- Daisy-chain networking for efficient data distribution.
- Supports DHCP and Static IP addressing.
- Grouping functionality reduces input channel count for streamlined configuration.
- Surface or TS35 DIN rail mounting options.
- Identify/Reset button for quick wiring verification without a network connection.
- Intuitive device configuration and updates through the built-in web interface.
- Inbuilt Fx engine allowing gradient effect in standalone operation without a DMX source.
Note: OCTO does not provide power to lighting fixtures.
Video
Unboxing the NEW ENTTEC OCTO!
The new evolution of our popular 8-Universe pixel controller, the OCTO is a Next Gen DIN rail eDMX to pixel data converter with an easy-to-use web interface, capable of controlling up to 1360 RGB LED pixels.
Technical Specification
| Overview | |
| Input voltage | 4-60V DC (via 2-pin Phoenix or direct from LEDs via SPI ports) |
| Max. heat dissipation | 4.5W |
| Operating temperature | -20°C to 50°C /-4°F to 122°F |
| Data input | eDMX (Art-Net, sACN, ESP or KiNet protocols) via 2 x RJ45 ports |
| Max. eDMX -> pixel conversion per device | 16 universes (8,192 channels) |
| Network speed | 10/100Base-T |
| Network configuration | static (default 192.168.0.10) / DHCP |
| Body material | ABS plastic |
| LED indicators | forward-facing status LED plus network link/activity (integrated into RJ45 ports) |
| Unit dimensions | 100.5mm x 77.9mm x 31mm |
| Shipping dimensions | 165mm x 145mm x 43mm |
| Warranty | 3-year return to the base manufacturer warranty |
| Max. power draw | 5W |
| Cooling method | Convection |
| Operating humidity | 5 to 95% (non-condensing) |
| Data output | SPI/NZR protocols (customizable) via 2 x 4-pin Phoenix ports |
| Max. pixels controllable per device | 2720 x RGB (1360 per port) / 2048 x RGBW (1024 per port) |
| Network discovery | ENTTEC EMU software |
| Recommended network device quantity per chain | up to 8 devices for optimum synchronization between outputs |
| IP rating | IP20 |
| Mounting options | surface & TS35 DIN Rail mount |
| Unit weight | 0.11kg / 0.24lbs |
| Shipping weight | 0.18kg / 0.39lbs |
| Compliance | UL / FCC (USA), UL (Canada), RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), |
Please Note: This product is intended for professional use only.
Product Reviews
-
16U Boost Mode!
Posted by Brendan Clarke on 20th Jun 2024
Having used a variety of LED decoders in the past, the Octo2 is very intuitive, easy to set up and use and the boost mode of increasing both outputs from 4U to 8U is a revelation.This feature wasn't obvious fro the publicity. There was no noticeable frame rate problem with the 24FPS cap in 16U mode, Its Ideal for making compact low res signage display or where a long continuous data run is required.
