Product Description

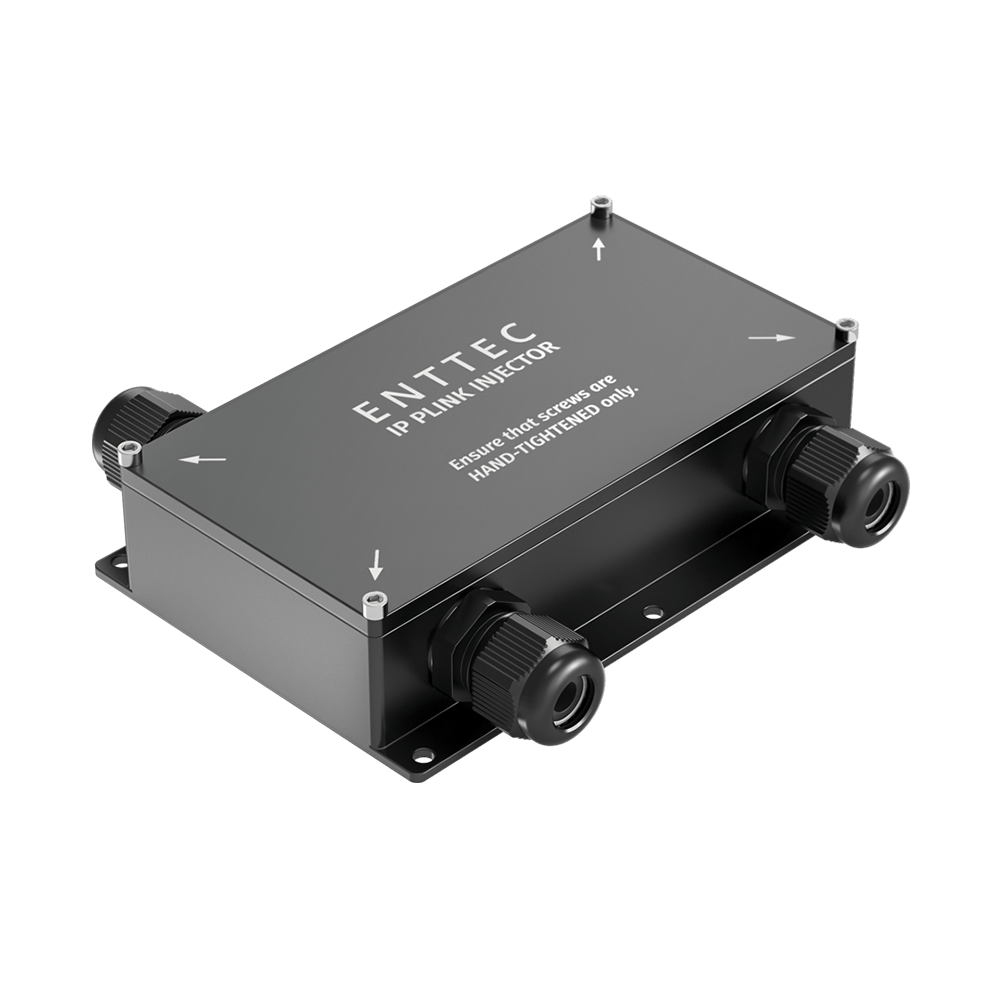

The IP PLink Injector is a waterproof pixel data injector designed for ENTTEC Pixelator Series setups. It efficiently controls LED pixel strips or SPI LED pixel dots over long outdoor distances without local configuration. Capable of receiving up to 4 Universes of PLink data and converting it to SPI data for auto-addressing, it features easy connections with high current rising clamp connectors and an RJ45 port. It can be powered by the same supply as your LED dots, supporting 5V or 12-24V (selectable via an internal jumper). With its robust anodized aluminum body, the IP PLink Injector offers fast installation and scalability for large outdoor projects. An indoor IP20 variant is also available.
Features
- Control up to 680 individual RGB 8-bit or 512 RGBW pixels (4 DMX Universes)
- Data extensions up to 300 metres over Cat5/Cat5e/Cat6 cable
- -10°C to 65°C operating temperature (14°F to 149°F).
- Scalable design for large projects.
- Watertight glands x 3 (∅4mm-8mm).
- 3-year warranty
- Can be powered from the same PSU as your LED pixels with an operational voltage range selectable with a jumper to be either 5V or 12-24V DC.
- Compact, robust, easy-to-hide design
- IP66 Ingress protection.
- 10A rated current throughput.
- Easy wiring using internal rising clamp screw terminals and RJ45 connectors.
Technical Specification
| Overview | |
| Connectors | 3x Cable gland (∅4mm-8mm) 1x Breath seal |
| IP Rating | IP66 |
| Input Data Protocol | Plink data |
| Data Output Type | SPI. See the website for all supported protocols |
| Input Voltage (See jumper config guide) | 5V DC 12-24V DC |
| Maximum Throughput Capacity | 5V – 50 Watt 12V – 120 Watt 24V – 240 Watt |
| Max. Current Per Screw Terminal (VCC or 0V) | 10 Amps |
| Environmental Operating Temperature | -10°C to 65°C 14°F to 149°F |
| Environmental Operating Humidity | 5- 95% (non-condensing) |
| Body Material | 6061 Aluminium |
| Unit Dimensions | 126 * 123.2 * 30 mm |
| Unit Weight | 0.28kg / 0.62lbs |
| Shipping Dimensions | 140 * 140 * 40mm |
| Shipping Weight | 0.34kg / 0.75lbs |
| Warranty | 3 year return to base manufacturer warranty |
Please Note: This product is intended for professional use only.
