Product Description

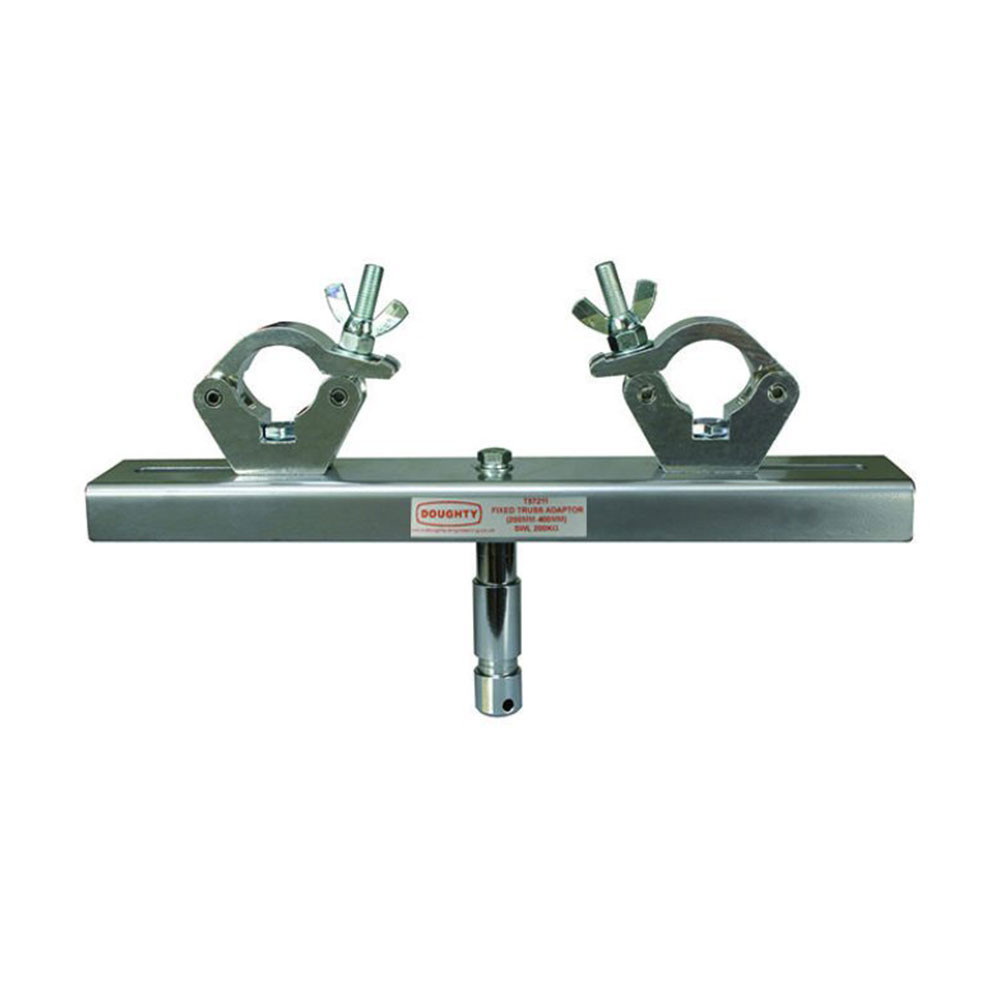

A steel truss adaptor supplied with two slimline aluminium half couplers to fit 48mm to 51mm diameter truss tubes and are each 50mm wide. Supplied with a fixed 28mm diameter TV Spigot to fit most stand receivers. Suitable for all triangular and square truss sections.
Technical Specification
Overview | |
WLL | 200Kg |
Tube Diameter | 48-51mm |
Clamp Width | 30mm |
Materials | S275 Mild Steel |
Finish | Polished |
Max Torque | e 30Nm |
Safety factor | 5:1 |
Downloads | |
Data Sheet | Download |
Please Note: This product is intended for professional use only.
