Product Description

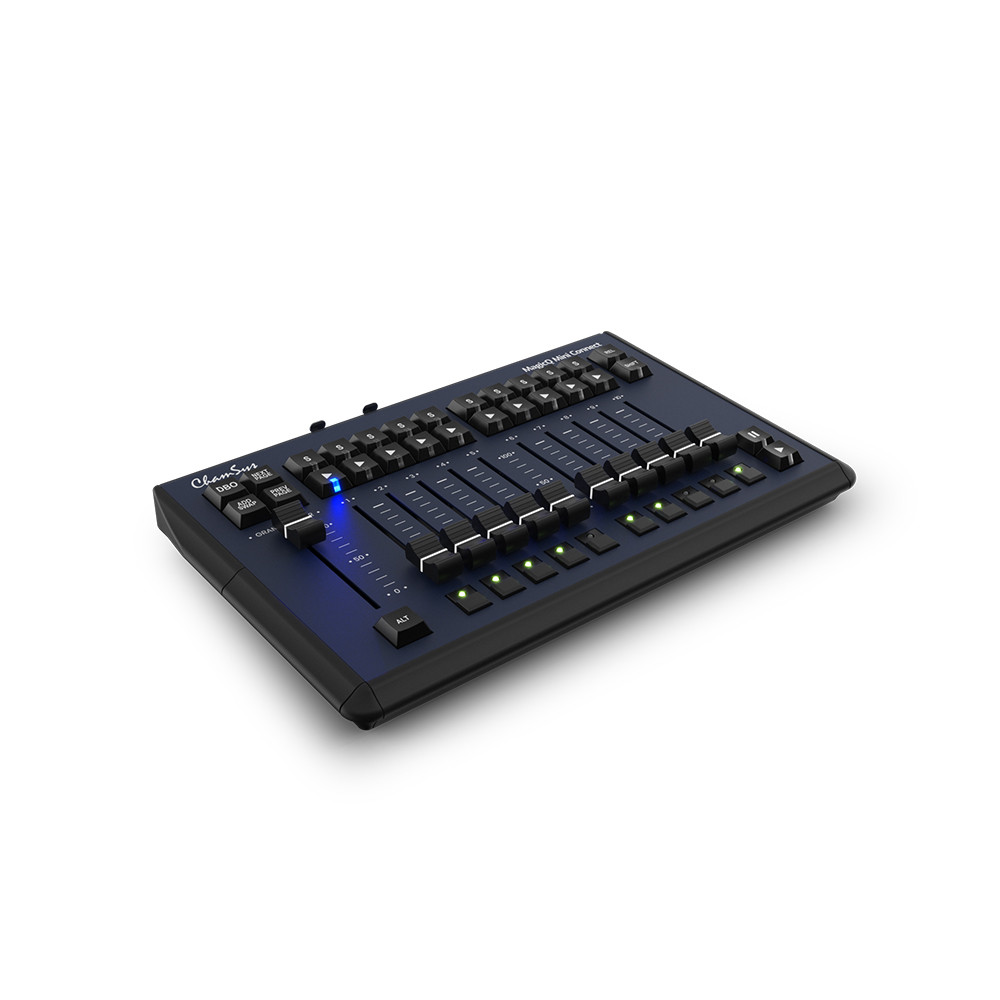

The MagicQ Compact Mini Connect is a highly portable USB 3 powered control surface that couples physical playback with the power of MagicQ software.
Attached to a Windows, macOS or Linux system running MagicQ software, the Compact Mini Connect turns your computer into a powerful lighting, media and LED control center. Live show controls include 10 playback faders, Flash, Go and Select buttons, and a dedicated Grand Master fader.
The Compact Mini Connect is ideal for theatres, venues, clubs and installations. With 1 direct DMX512 output and an onboard network port that sends up to 64 universes of ArtNet and sACN, the Compact Mini Connect is also capable of commanding large shows as well as offering a cost-effective backup solution for users of larger MagicQ consoles.
Features
- 10 Playbacks
- USB Powered
- Connects to Free MagicQ Software - PC, Mac or Linux
- 1 Direct DMX Output supporting RDM
- Kensington Lock Slot
- Includes Lightweight Durable Case
- 64 Universes via Artnet/sACN
Video
MagicQ Compact Connect & Mini Connect by ChamSys
Control that gets you moving. MagicQ Compact Connect and Compact Mini Connect are highly portable USB-powered control surfaces that couple physical playback with the power of MagicQ software.
Technical Specification
| Overview | |
| Hardware Specifications: | Fader Playbacks: 10 Direct DMX Outputs: 1 Network Ports: 1 Kensington Security Lock Fixing: 1 USB Connector: Yes - USB-C USB 3 Powered: Yes (Must be connected to a USB 3.0 or higher port) Lightweight Durable Case Included |
| Included Accessories | USB A-C Cable: Yes Lightweight Durable Case: Yes |
| Boxed Weights and Dimensions | Width: TBC Depth: TBC Height: TBC Weight: TBC |
| Console Weights and Dimensions | Width: 327mm Depth: 204mm Height: 45mm Weight: 1.85kg |
| Software Specifications | Universes: 64 Max Number of DMX Channels: 32768 Max Number of Fixtures Supported: 32768 Max Number of Cues: 5000 Max Number of Cue Stacks: 2000 Max Number of Groups: 5000 Max Number of Palettes: 4096 Number of Media Server Layers Supported: 50 (Each different content) Supported on Windows (8.1 or higher), macOS (10.13 or higher) and Linux |
| Downloads | |
| User Guide | Download |
Please Note: This product is intended for professional use only.
