Product Description

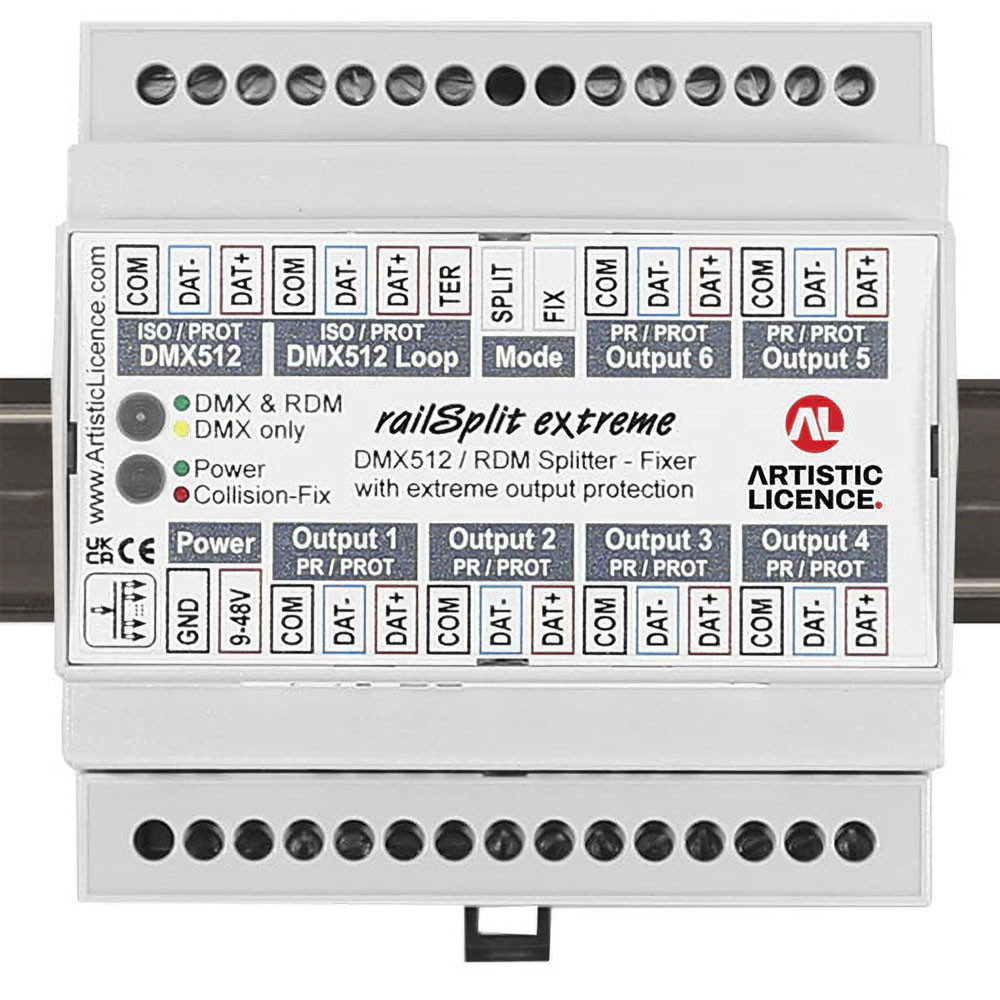

railSplit extreme is an upgraded version of railSplit RDM, optimised for harsh conditions and for use in electrically noisy environments.
It is a 1-in-to-6-out DMX512 splitter with support for RDM and a fix mode which filters non-standard data and fixes timing errors. Isolated input. DIN rail enclosure with screw terminal connectors.
railSplit extreme additionally provides surge protection on the input, loop and outputs, which is aimed at protecting the product and connected equipment against voltage surges of the type generated by lightning.
Features
- Mains electrocution protection (self-healing)
- Surge protection (sacrificial)
- Optically isolated DMX512 input
- Front panel power and data indication
- Six buffered outputs
- Bidirectional data ports
- Jabber Detection
- Fix Mode
- DIN Rail mounting
- Compatible with DMX512, DMX512 (1990), DMX512-A
- Protocols: RDM Standard V1.0 (E1.20 – 2010 ESTA Standard)
Technical Specification
| Overview | |
| Listing | CE FCC |
| IP Rating | Indoor use |
| Power | 8W |
| Input Voltage | 9 to 48VDC |
| Width | 88 mm (5M) |
| Dim (W x H x D) | 88 x 90 x 62 mm |
| Net Mass | 0.20 kg |
| Connection | Screw terminal |
| Electrocution protection | Input, Loop and all outputs protected against continuous connection to 425 VAC (self-healing) Surge protection (Input, Loop and all outputs): Max IDC 30,000A (8/20µS) sacrificial (1 operation) |
Please Note: This product is intended for professional use only.
