Product Description

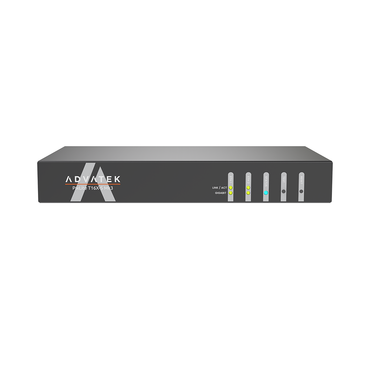

The PixLite® T16X-S Mk3 is a powerful long-range pixel LED controller that joins Advatek's bestselling T8-S Mk3 controller. This new model was developed with 16 output connectors to meet overwhelming demand from our customers for an even more powerful long-range solution in a reliable, user-friendly system.
Advatek equipment is proudly made in Australia for ultimate manufacturing quality control and is also covered by a five-year product warranty for your absolute peace of mind
Features
- 96 universes of Art-Net or sACN
- Connect up to 16 R1 or R2 receivers
- over 80+ pixel protocols supported
- microSD for Advatek SHOWTime™
- Auxiliary port for DMX512 In/Out
- Configure using Advatek Assistant 3
- Electrical fault protection on all ports
- Five-year warranty and global certifications
Video
Advatek Innovation: PixLite® R1F-S and PixLite® T16-S Mk3
Advatek Innovation: PixLite® R1F-S and PixLite® T16-S Mk3 More Pixels in More Locations. Introducing the next-generation PixLite® R1F-S and T16-S, designed to revolutionize pixel control...
Technical Specification
Overview | |
Ethernet Ports | 2 x 10/100/1000 Mbit/s |
microSD Card Slot | Yes |
Auxiliary Port | 16 x RJ45 |
Dimensions | 282 mm x 42 mm x 169 mm |
Weight | 1.32 kg |
Enclosure Material | Aluminum |
Mounting Options | Direct Panel, Wall & Rack Mountable |
Input Power | 100V-240V AC |
AC Fuse | 1A M205 |
Ambient Operating Temperature | -10°C to +60°C |
Please Note: This product is intended for professional use only.
