Vari-lite - FLX s48 bare-ends to IEC Power Supply

£2,341.44 (inc V.A.T.) £1,951.20 (exc V.A.T.)
SKU:
VAR0020-000025-00
Weight:
5.50 KGS
Availability:
Please contact sales for stock and shipment information on: 020 8254 4840 or via  Sales@ShopWL.com
Shipping:
Calculated at checkout
Quantity:

Product Description

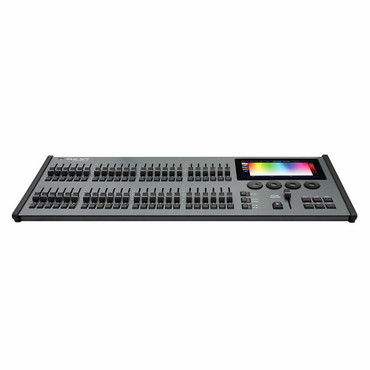

The FLX S48 Console is a 48 fader lighting control surface that brings the legacy and power of our consoles in an easy-to-use package at an affordable price. A lighting design-centric console built for the non-designer, the FLX S48 allows any user to quickly create beautiful looks in less time, and is the perfect console for schools, houses of worship, broadcast studios, and portable applications.

Built on the award-winning ZerOS software, the FLX S48 includes an intuitive, user-friendly interface. The onboard 7” multitouch screen, four physical encoders and seven dedicated physical buttons simplify operation, while support for an external touchscreen monitor offers additional control capabilities. The ZerOS software makes it easy to design the perfect look, with multiple color selection options and intuitive moving head fixture control. To ensure users can get the job done without getting lost, ZerOS includes an on-board Guidance tool and quick select Z button.

The FLX S48 Console supports 96 fixtures and offers up to 1024 channels of DMX control connected via the two 5-pin DMX ports or Ethernet based DMX. To simplify patching and monitoring of connected luminaires, the ZerOS software includes exclusive RigSync technology, for a seamless experience with less effort.

Features

  • Cost effective 48 fader console with support for 1024 channels of control
  • Award-winning ZerOS software – mature, easy-to-use software you can trust
  • Simple “three-step programming” – Select what you want, where you want to control them, and how you want them to look
  • 7” Multitouch screen - easily adjust colors, moving lights, and other settings
  • External monitor support – connect third party touchscreen display for a bigger control surface
  • 4 physical encoders and 7 dedicated buttons for go, record, delete, etc. – faster and more intuitive control, particularly in a live environment
  • Image picker for control selection – upload a photo and select different colors in one or more spots in the image to add color variation and depth
  • Multicell fixture support – control all pixels in a multiple pixel fixture as easily as single-cell fixtures without intensity conflicts. Easily apply color gradients and dynamic effects
  • Mood Boards by LEE Filters – quickly select the perfect color palette for your mood
  • Onscreen Guidance tool – never get lost thanks to situationally aware, but unintrusive on-screen tips and advice in English, Spanish, French, and German
  • Exclusive Z button for quick access to important tools – easily perform common actions anywhere in the console
  • 2 x 5-Pin DMX ports and support for Ethernet protocols such as sACN, Art-Net, CITP, OSC, Vision.Net etc. – versatile network and physical connectivity options
  • Up to 64 universes of DMX connectivity – control all the fixtures in your rig and patch them however you want to organize them
  • RigSync – simplify commissioning and management thanks to exclusive technology that finds fixtures using RDM, automatically patches them, then continually monitors the system and adapts to changes.

Video

FLX S | Affordable. Easy. Fun.

FLX S24 & FLX S48 consoles are easy to learn and simple to use - delivering all the features you need at an affordable price. Affordable. Easy. Fun.

Technical Specification

Electrical
Operating Voltage (PSU) 100-240V AC; max. 2A
Operating Voltage (Console) 12V DC
Power Input (PSU) 1x IEC C14
Power Input (Console) 1x 2.1mm DC barrel connector
Data
Included license 2x Universes (1,024 Channels)
DMX Out / DMX In / Vision.Net 2x Neutrik 5-pin female XLR
Display Output 1x DVI-D (XGA)
Ethernet 1x RJ45
USB 2x USB Type-A
Connectivity
Protocols DMX512
RDM
Streaming ACN (E1.31)
Art-Net
CITP
OSC (Open Sound Control)
Vision.Net (Receive only)
KiNet
Philips Hue
Files USITT ASCII Showfiles
GDTF
Other iOS & Android apps
Certification and Safety
Conformity EN 62368-1, UL 62368-1, CSA C22.2 No 62368-1, BS EN 62368-1
Capacity
  96 Fixtures (single or multiple DMX channels)
10,000 Cues
97 Playbacks
480 Palettes
(Position, Color, Beam, Shape and Effect)
96 Groups
45 Auto Effects
Up to 96 Fixture Macros
Software Key Features
  Full tracking and optional non tracking
Multi-touch color & image picker
“Mood Boards by LEE Filters”
Multi-touch Pan/Tilt grid
Auto palettes, groups and fixture macros
Gobo previews and library
Move on Dark
Wireless remote control and remote monitor apps
RigSync (RDM)
Multicell fixture support
Onscreen guidance tool
Offline editor (Windows PC)
User interfaces
Internal touchscreens 1x 7” multi-touch
External touchscreens 1x XGA (optional)
Faders 49x multifunctional faders (2 pages)
Encoders 4x Attribute & Intensity
Physical
Color Black & Dark Grey
Operating temperature 5–40°C (41-104°F)
Construction Impact resistant aluminum & plastics
Dimensions 68 x 669 x 284 mm (2.7 x 26.3 x 11.2 in)
Weight 5.5 kg (12.1 lb)
Downloads
Data Sheet Download
Quick Start Guide Download

Please Note: This product is intended for professional use only.
