ROSCO - MIXBOOK® Digital Swatch Book (Latest Firmware)

1 product review Write A Review
£81.60 (inc V.A.T.) £68.00 (exc V.A.T.)
0.11 KGS
Usually delivered next working day if ordered before midday.
Calculated at checkout

Product Description

MIXBOOK is a digital swatchbook that enables users to pre-visualize gel and LED colors in order to communicate their color choices with other members of their team. This helpful lighting tool is controlled via Bluetooth® by our free myMIX® app to enable lighting professionals to explore how their color choices will perform in the reality of their project. MIXBOOK contains the same six-chip LED technology found in Rosco’s DMG Lumiere MIX® LED fixtures. This ensures perfect color matches between MIXBOOK and any MIX lights in use on the project.


  • Rosco Mixbook used to test gel colours

    Previsualize LED Colors

    Selecting colors from a screen or monitor can be frustrating. What do the colors in a console’s color picker actually look like as colored light? Until now, lighting professionals had no way to previsualize and communicate their LED color choices without setting up a fixture and a console. Using the Color Mode in the myMIX app, users can select their desired colors – using either Hue, Saturation and Intensity levels, or CIE xy values – and then explore how those colors perform with MIXBOOK.

    Once the desired colors have been created, users can send them directly to any MIX LED fixtures they’re using, they can share them with other members of their team, or input the data-values of those colors from the myMIX app into a control console in order to produce them using other color-mixing fixtures.

  • Orchestra chair adjustable height

    Rosco Color™ Gel Matches

    The six-chip MIX LED technology inside MIXBOOK features a proprietary mix of Red, Green, Blue, Lime, Amber and White emitters that enables the device to produce over 130 accurate Rosco gel matches. These colors have been verified – by eye, by meter and by camera – to match traditional tungsten and daylight sources with Rosco gels on them. Using Gel Mode in the myMIX app, users can explore how these True Rosco Colors will perform in their environment.

    • Mix: Create your colour
    • Capture: Take a photo, select a colour, and load it to the light
    • Save: Name your colour and save it to your library
    • Share: Collaborate, share your colours

  • Lightweight & Portable

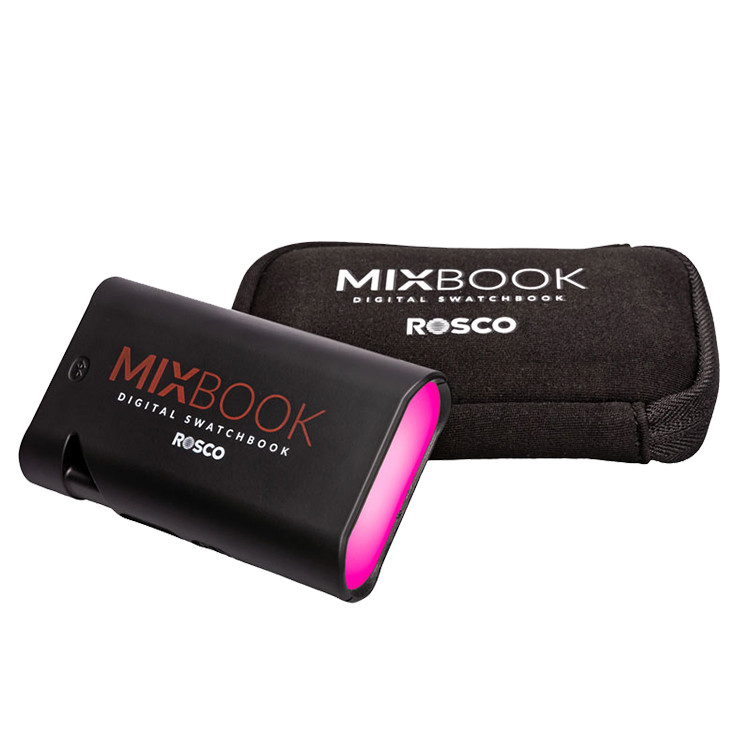

    MIXBOOK ships inside a neoprene pouch with a belt loop, so that lighting professionals can always have this handy tool at their side. The device also features a ¼-20 socket on the bottom for easy attachment to a light stand or mounting device in order to go hands-free. MIXBOOK charges via any standard Micro USB charger (not included).


Rosco Ambassador Will Preisner Unboxes His MIXBOOK®

Cinematographer - and Rosco Ambassador - Will Preisner opens his new MIXBOOK digital swatchbook, explains how it works, then discusses how he'd use it to pre-visualize his color choices with other departments before arriving on set.


Technical Specification

Weight 110g
Size 10 x 6 x 2.6cm
Finish Color Matte black
Packaging Neopren pouch with belt strap
Mounting Options 1/4 inch female threading, hole for spring hook
Housing Material ABS+PC plastic
Operating Temperature -4 °F to +104 °F (-20 °C to 40 °C)
Humidity Tolerance IP20
Flicker Free Up to 200 i/s
CRI CRI Average > 95
TLCI-II TLCI Average > 90
Colored Light Full Color Gamut with Hue, Saturation and White base control
Photometrics 100 lux @0.5m 26fc at 1'
Colored Light Full Color Gamut with Hue, Saturation and White base control
Gels True Rosco Color™ gel matches
Green-Magenta Adjustment Continuously adjustable (Full Minusgreen to Full Plusgreen)
Input Voltage 5 VDC
Power Consumption 2 W
Power Connections Micro USB
Control System Bluetooth via myMIX App
Data Sheet Download
Quick Start Guide Download
User Manual Download
Aplication Download
