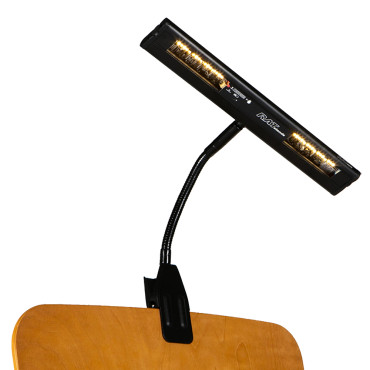

RAT Stands - Trio4 LED Clip Light

1 product review Write A Review
£416.40 (inc V.A.T.) £347.00 (exc V.A.T.)
SKU:
RAT73Q05
Weight:
1.00 KGS
Availability:
Please contact sales for stock and shipment information on: 020 8254 4840 or via  Sales@ShopWL.com
Shipping:
Calculated at checkout
Quantity:

Product Description

As the industry’s most advanced music stand light, the Trio4 Light enables the musician control to adjust the lights intensity and colour temperature. The colour temperature of the LEDs can be varied between 2700K-4000K. Thumb wheels on the lamps housing offer the musician this control but control by the lighting desk has priority over the musician. State-of-the-art low voltage LEDs give exceptionally bright and even illumination over the score, whilst precision light guides ensure excellent cut-off of the light resulting in minimal light spillage. Very slim housing ensures the lamp does not obstruct the musician’s view of the conductor.

This clip-on light version has a strong and flexible gooseneck which enables the musician to find their ideal position for the light and it will remain where it is set. This light is fitted with a powerful spring clip which will fit to almost any make of music stand.

The Trio4 can be powered by mains power using the appropriate PSU or by batteries. When powered by batteries the light progressively warns the user when the battery is running low.

The radio DMX system offers a complete wireless solution for both control and powering this music stand lights.

FEATURES

  • Rat Stands Trio4 LED Clip Light High Quality LED's

    High Quality LEDs

    32 state-of-the-art low voltage LEDs give exceptionally bright and even illumination over the entire score. LEDs are virtually indestructible and never wear out, so you'll never again have to change a bulb in the middle of a performance.

  • Rat Stands Trio4 LED Clip Light Minimum Light Spillage

    Minimum Light Spillage

    Very slim housing ensures the lamp does not obstruct the musician’s view of the conductor. Precision light guides ensure excellent cut off of the light, resulting in minimal light spillage.

  • Rat Stands Trio4 LED Clip Light Powerful Spring Clip

    Powerful Spring Clip

    Available here as clip-on lights, fitted with a powerful spring clip to enable the light to fit almost any make of stand.



Technical Specification

Construction
Structural parts Steel
Lamp housing Aluminium
Dimensions
Profile of lamp as seen by user: thickness 16mm / 0.6in
Profile of lamp as seen by user: width 330mm / 13in
Rotation of lamp housing As permitted by the gooseneck
Cable length (from clip, fully stretched) 1.8m / 70.9in
Weight of product 0.7kg / 1.5lbs
Optical characteristics
Colour temperature 2700-4000K
CRI 80 CRI
Life of LEDs to 70% of initial output (L70) 60000 hr
Light intensity at midpoint of an A4 score at 300mm distance Up to 2050 lux
Luminous flux from LEDs (from manufacturers specification) 662 lm
Lateral beam angle (defined as 50% of maximum)
Rearward beam angle (defined as 50% of maximum) 34°
Forward beam angle (defined as 50% of maximum) 31°
Operating frequency 2kHz
Electrical characteristics
SELV (Safety extra low voltage) YES
Operating voltage 18 - 28V
Electrical power consumption 5.1W
Estimated circuit luminous efficacy 130lm/W
Physical characteristics
Cable type Coiled cable with PU outer sheath
Electrical connector type Customised 2-pin XLR

Product Reviews

Write Review

  1. Control Mode

    Posted by Tim Lee on 8th Dec 2020

    Is it control by Radio transmitter or by powerline only?

    Hi Tim,

    The stand can be controlled using Powerline DMX or Radio DMX.
