Product Description

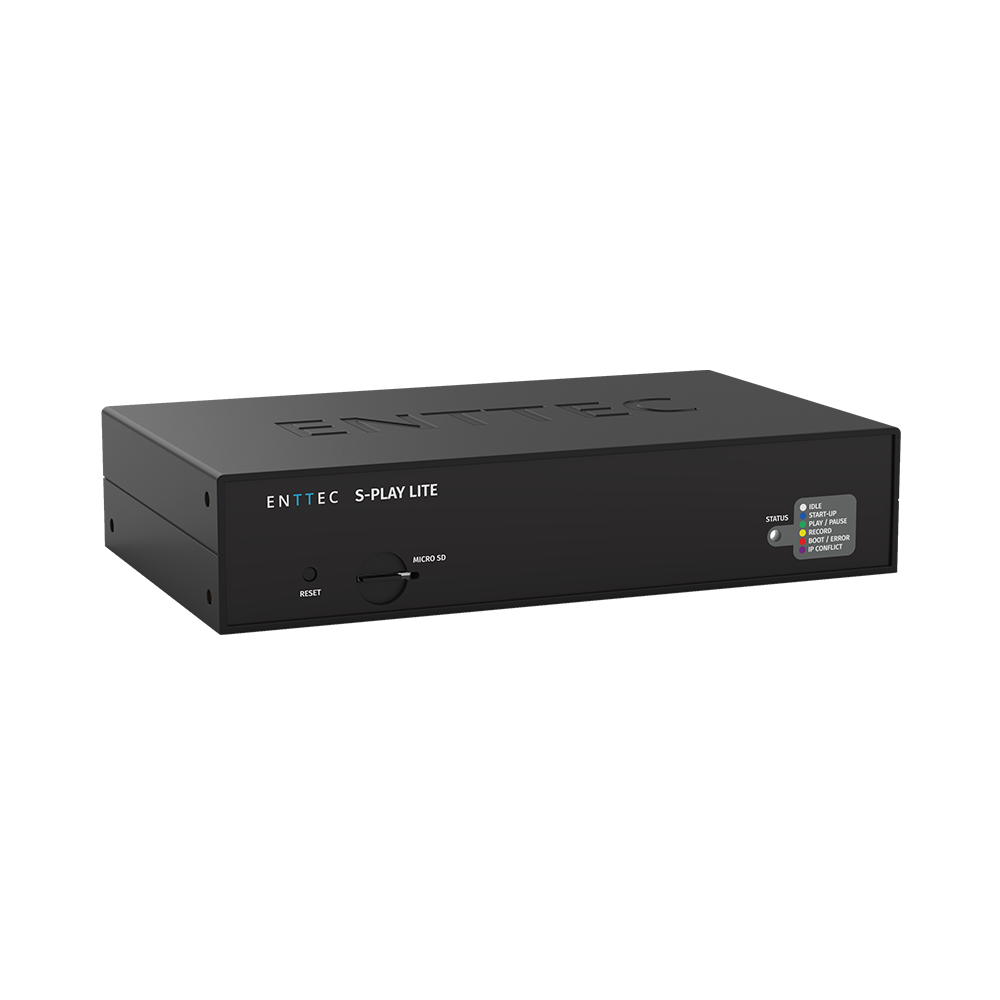

ENTTEC’s S-PLAY LITE serves as a robust show recorder and playback controller, expertly integrating 3rd party system and external hardware for smart light show management.
Featuring an extensive array of 100 light Cues, users can record 16 Universes of Art-Net and sACN or 2 DMX Universes via 2 XLR DMX ports. Whether crafting simple Static scenes, recording Dynamic Cues, or easily creating gradient Effect Cues with the built-in pixel effect generator, the creative possibilities are vast.
The S-PLAY LITE facilitates flexible integration of external devices into installations, supporting Triggers or automating Events through various protocols such as Art-Net, sACN, DMX, GPIO, RS232, UDP, or OSC.
Its intuitive drag-and-drop interface within the timeline editor empowers users to design up to 100 Playlists, utilising created Cues, Events, and Triggers as building blocks.
Schedules can be set for playlists to run at specific times with unique groupings and priorities.
Additionally, users can effortlessly design up to 5 user friendly custom interfaces, simplifying navigation for end-users without complex configurations.
Features
- Supports recording and playback of up to 16 universes of Art-Net and sACN.
- Equipped with two XLR DMX ports for flexible recording and playback.
- Records cues from DMX sources with a built-in DMX value monitor.
- Enables creation of gradient Effect Cues using the in-built effect generator.
- Features an intuitive web interface for easy configuration.
- Allows up to 100 playlists with Static, Dynamic, and Effect Cues.
- Sends up to 150 automated events via RS232, Art-Net, sACN, DMX, Relays, UDP, and OSC.
- Supports up to 150 remote triggers through RS232, Art-Net, sACN, DMX, Digital Inputs, UDP, and OSC.
- Internal memory stores over 20 hours of 16-universe recording at 40FPS, expandable via Micro SD card.
- Enables creation of custom user-facing web interfaces.
- Allows scheduling of playlists for automated playback.
Technical Specification
| Overview | |
| Input voltage | 12V DC to 24V DC |
| Power input | DC jack (12V PSU & international plugs included) |
| Max power draw | 8W |
| Ethernet port / PoE | RJ45 / PoE IEEE 802.3af |
| DMX port | 2 x 5-pin XLR (female) |
| Digital input | 4 digital inputs + 1 GND + 1 5V (6-pin screw terminal) |
| Relay | 2 x relay 6-pin screw terminal (max limits, 50V DC or 60W) |
| Internal show storage capacity | 8GB (~20 hours of 16 universes at 40fps) |
| Expandable storage / external memory | Micro SD card |
| LED indicators | Yes |
| Factory reset | Web interface |
| Mounting | Rack, surface & TS35 DIN rail mountable (ears, clips & screws included) |
| IP rating | IP20 |
| Environmental operating temperature | 0°C to 50°C / 32°F to 122°F |
| Environmental operating humidity | 0 to 95% (non-condensing) |
| Cooling method | Convection |
| Body material | ABS plastic & anodised aluminium |
| Unit dimensions | 200mm x 120mm x 42 mm |
| Unit weight | 0.47kg / 1.04lbs |
| Shipping dimensions | 335mm x 265mm x 78mm |
| Compliance | UL / RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA) |
| Warranty | 3-year return to base manufacturer warranty |
Please Note: This product is intended for professional use only.
