Product Description

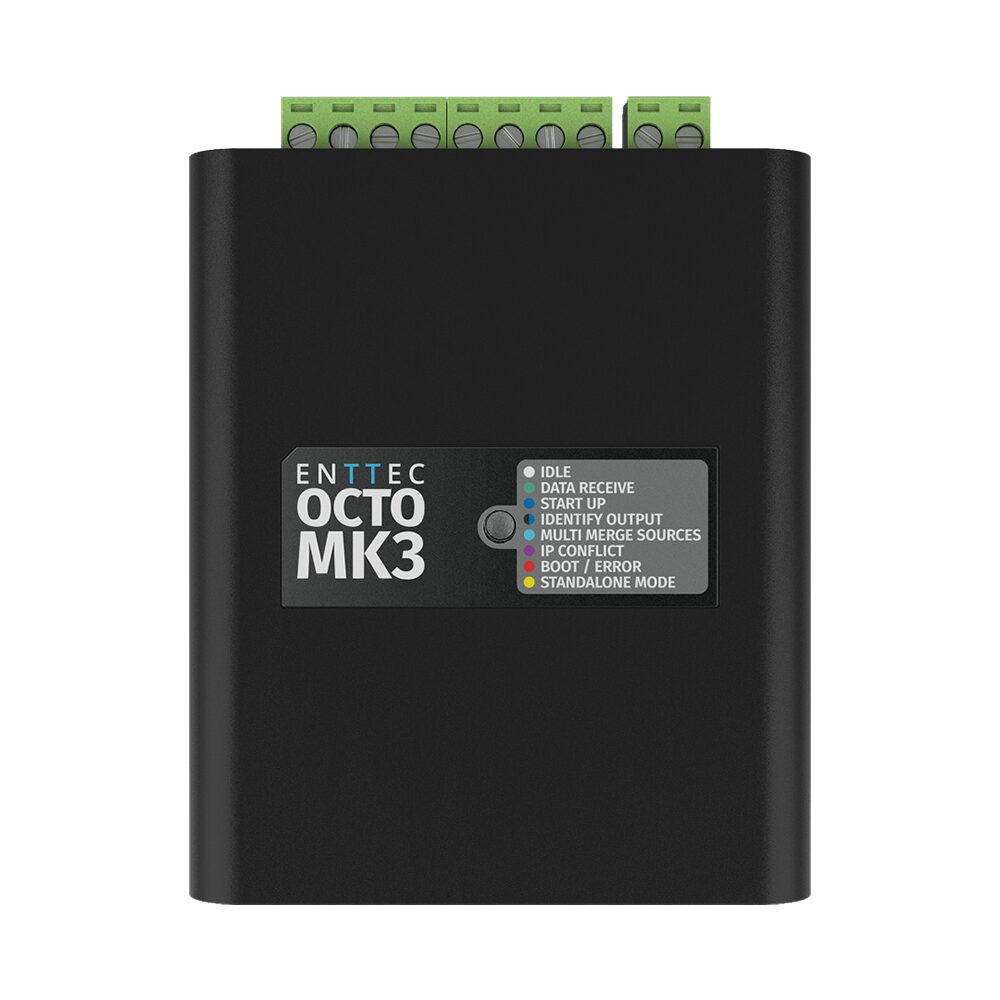

The ENTTEC OCTO MK3 is a high-performance, compact, and reliable pixel controller designed to convert up to 32 universes of Art-Net, sACN, Kinet, and ESP to SPI pixel data with port sync.
It features flexible pixel output configuration, supporting up to 8 universes per port, with 2 outputs when using Clock support and up to 4 outputs when repurposing Clock as additional data ports. The overdrive mode is automatically activated when outputting more than 6 universes per port, ensuring seamless performance under high data loads.
Engineered for maximum versatility, the OCTO MK3 supports over 20 industry-standard pixel protocols and enables custom protocol creation for specialised applications (refer to the Custom Protocol Creation Guide). With dual Ethernet ports, it facilitates network daisy-chaining, optimising data distribution without additional hardware.
With an inbuilt FX engine, the Standalone Mode allows users to create gradient effects with realtime previews directly through the web interface.
The device can be configured to run standalone upon power-up, eliminating the need for a dedicated DMX source.
Features
- Flexible pixel output configuration – Supports data and clock signals or can repurpose clock for additional data output.
- Supports up to 32 universes of Art-Net, sACN, Kinet and ESP with overdrive mode.
- Extensive protocol support, including both data and clock-based configurations.
- Custom pixel protocol creation for specialised applications.
- Daisy-chain networking for efficient data distribution.
- Supports DHCP and Static IP addressing.
- Grouping functionality reduces input channel count for streamlined configuration.
- Surface or TS35 DIN rail mounting options.
- Identify/Reset button for quick wiring verification without a network connection.
- Port Sync ensures all ports stay synchronised, preventing inconsistencies and ensuring smooth operation.
- User-friendly web interface for intuitive device configuration and firmware updates.
- Inbuilt FX engine for standalone gradient effects without requiring an external DMX source.
Note: OCTO does not provide power to lighting fixtures
Video
OCTO Mk3 Explained: What’s New, What’s Better & Why It Matters
The wait is over. Introducing the ENTTEC OCTO Mk3: the next evolution of our compact eDMX-to-pixel controller, delivering double the universes, double the outputs, and a massive leap in creative flexibility.
Technical Specification
| Overview | |
| Connectors | 2 x Network (RJ45), 2 x Multifunctional Data Port (4Pin Screw Terminal), 1 x Power Port (2Pin Screw Terminal) |
| IP rating | IP20 |
| Input voltage | 5-60V DC |
| Max. power draw | 5W |
| Max. heat dissipation | 4.5 W |
| eDMX input protocol | Art-Net / sACN / ESP / KiNet |
| Network speed | 10/100Base-T |
| Network discovery | ENTTEC EMU software |
| Network configuration | Static (Default 192.168.0.10) / DHCP |
| Recommended Network Device Quantity Per Chain | Chains of up to 8 devices give optimum synchronisation between outputs. |
| Data output type | SPI (NZR) |
| Max. eDMX -> Pixel conversion per device | 32 Universes (16,384 channels) |
| Max frame rate | 100fps |
| Firmware updates | Web Interface |
| LED indicators | Forward-facing LED indicator Network link/activity (integrated into RJ45 ports) |
| Cooling method | Convection |
| Operating temperature | -20°C to 50°C / -4°F to 122°F |
| Operating humidity | 5 to 95% (non-condensing) |
| Body material | ABS plastic |
| Mounting options | Surface & TS35 DIN Rail mount |
| Unit dimensions | 100.5mm x 77.9mm x 31mm |
| Unit weight | 0.08kg / 0.18lbs |
| Shipping dimensions | 165mm x 145mm x 43mm |
| Shipping weight | 0.18kg / 0.39lbs |
| Warrantyt | 3-year return to the base manufacturer warranty |
| Compliance | FCC (USA), RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK) |
Please Note: This product is intended for professional use only.
