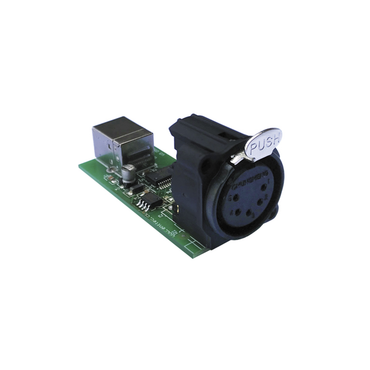

Enttec - DMX USB Open Assembed Widget 70302
Product Description
The ultimate in low-cost DMX USB control.
The USB Assemble widget ships with no metal case, no cables, no documentation and no fancy packaging.
Configure it as you please for reliable control of 512 channels across a range of compatible programs
Low Cost Assembled Interface
- Controlling your DMX lights from your computer requires an interface.
- The USB Assembled Widget is the cheapest interface available.
- This simple low cost widget ships by itself in a box – without a metal case, no usb cable, no documentation and no fancy packaging – ideal for those on a low budget.
- Designed for the hobbyist or users who does not require the added features and protection of DMX USB Pro or PRO Mk2.
- Compatible with a reduced set of programs compared to USB PRO, but it will still allow control of 512 channels.
- USB 2.0 input and single DMX512 output (non-isolated)
- RDM is not supported on this device
Open to the community
This DMX USB interface is based on the FTDI 232BM chip, it’s a USB to serial converter. Using a simple application on a PC you can send and receive DMX512.
This project has been released with a GPL license, you are free to do what ever you want with the design, with the following restrictions:
Any modification to the hardware or software must be given back to the community.
You cannot remove or modify any copyright notice.
