Product Description

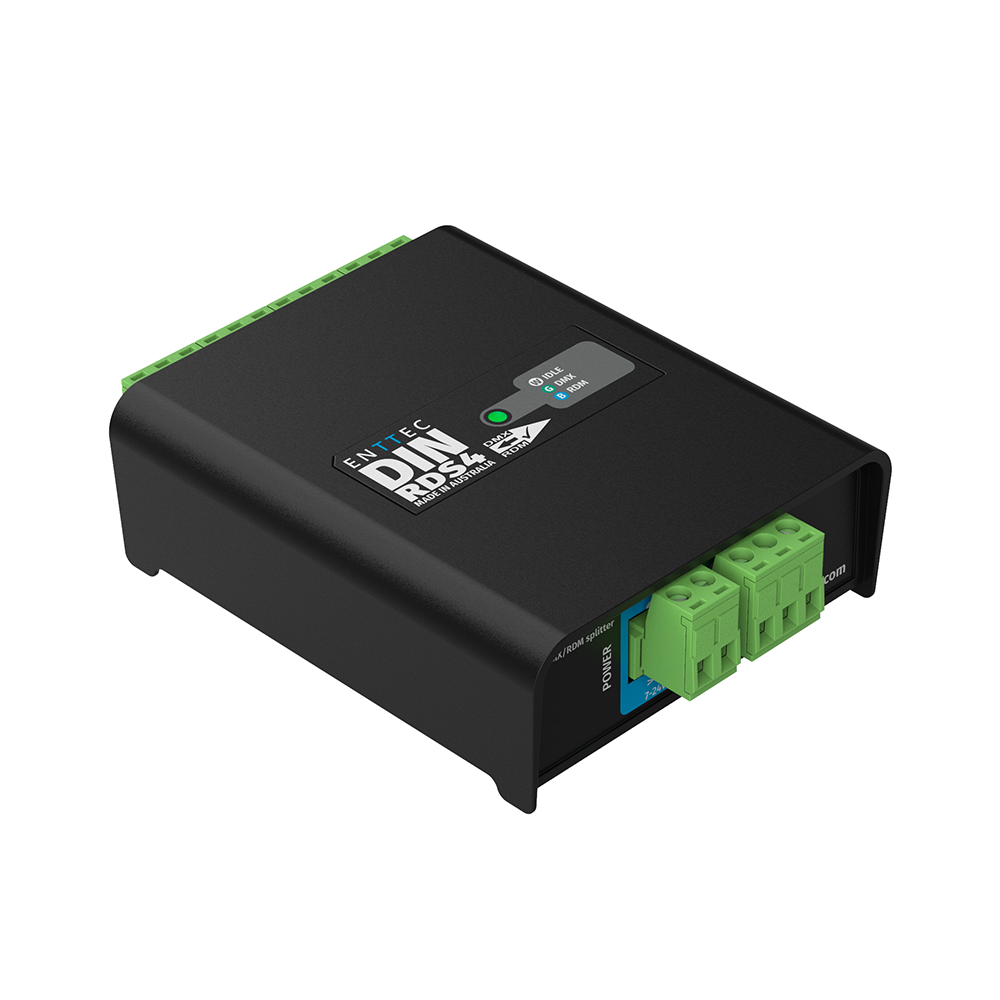

DIN RDS4 is the new installation grade 4-port DMX/RDM splitter in a compact, 4-module DIN-rail form factor.
Enttec's compact, new professional DMX/RDM splitter
ENTTEC’s DIN RDS4 is an installation grade, 4-port, DMX/RDM isolated splitter engineered to take any architectural, commercial or entertainment project to the next level.
Small yet powerful
Housed in a slim, electrically-insulated, 4-DIN-module enclosure, the DIN RDS4 is compatible with DMX512-A & RDM (E1.20). The DIN RDS4 actively changes its refresh rate to match your DMX input source.
Flexible mounting options
The DIN RDS4 features a DIN-rail clip enabling attachment to a TS35 DIN-rail alongside the option to wall mount the device in any orientation.
Protect you fictures
1500V isolation between any individual DMX port protects your DMX source and lighting fixtures from power surges and stray voltages on the DMX line by blocking stray voltage from crossing to other DMX chains.
Monitor activity

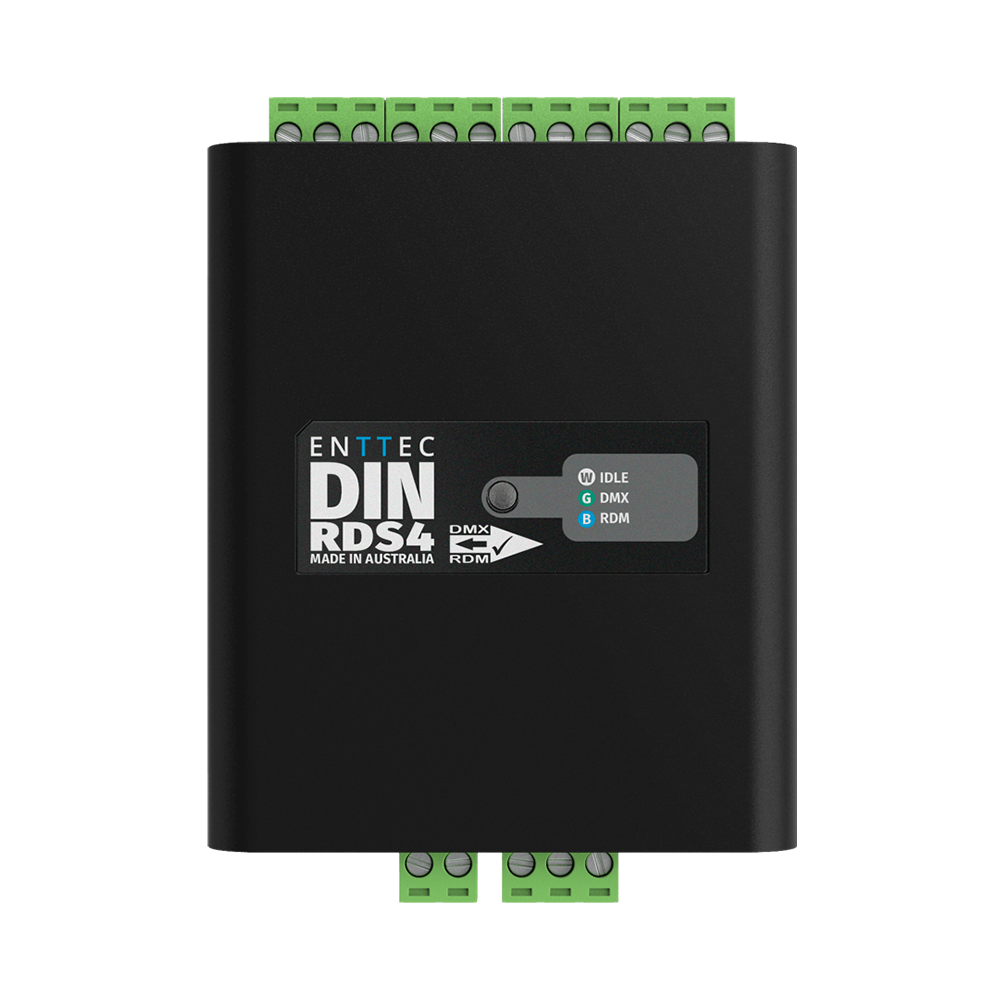

The forward-facing LED indicator allows DMX & RDM activity to be monitored quickly with just a glance.
Features
- 1 DMX/RDM input & 4 DMX/RDM outputs.
- Pluggable screw terminal connectors.
- Forward facing LED status indicator to view current DMX/RDM traffic.
- Support for DMX512-A and ANSI E1.20 RDM.
- Output refresh rate mimics the input.
- Electrically insulated case material.
- Surface or TS35 DIN rail mount.
- No configuration required.
- 7V-24V DC power input.
- 1500V Opto-isolation between each DMX port to protect against stray voltages on the DMX line.
- Operating temp: -20°C to 50°C.
Technical Specification
| Overview | |
| Connectors | 1* 3 Pin Phoenix DMX input 4* 3 Pin Phoenix DMX output 1* 2 Pin Phoenix power input |
| IP rating | IP20 |
| LED indicators | Yes |
| Supported protocols | USITT DMX512-A ANSI E1.20 RDM |
| Bi-Directional | No |
| Max. output channels | 1 universe (512ch) |
| Max. output refresh rate | 43FPS |
| Firmware updates | No |
| Input voltage | 7.5V to 24V DC |
| Max. power draw | 5W |
| Max. heat dissipation | 5W |
| Environmental operating temperature | -20°C to 50°C (-4°F to 122°F) |
| Environmental operating humidity | 5 – 95% (non-condensing) |
| Body material | Plastic |
| Mounting options | Surface or TS35 DIN rail mount |
| Unit dimensions | 100 x 572.25 x 34mm |
| Unit weight | 0.10kg / 0.22lbs |
| Shipping dimensions | 140 x 140 x 40mm |
| Shipping weight | 0.16kg / 0.35lbs |
| Warranty | 3 year return to base manufacturer warranty |
Please Note: This product is intended for professional use only.
