Product Description

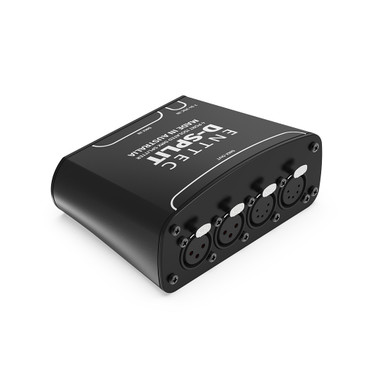

Is your DMX daisy chain out of control? With its stylish black ABS body, designed and made in Australia, the D-Split DMX opto-splitter will make life easier with simplified distribution .
The D-Split is both an optical splitter/isolator and repeater for DMX512. It allows one DMX input 3-pin to be replicated on to 4 isolated output ports, each of which can be used to create a new chain of up to 32 DMX fixtures.
Instead of having to make all fixtures fit within a single daisy chain, each of the four outputs from the D-Split can be the start of its own chain. Multiple D-Splits can be linked together for even greater flexibility, and the unit now comes with a removable DIN rail clip for even more mounting options.
Features
Small yet powerful
- The small, light and portable D-Split offers a great solution to extend your DMX chain, without sacrificing the quality.
- ANSI E1.11 – USITT DMX512-A compatible. Each unit repeats and re-buffers all 512 channels of DMX from the input on each output.
1000V optical isolation
- Each output port features protection up to 1000V of stray voltage, meaning any issues stay on the DMX line and don’t jump across into the rest of your system.
- Using a D-Split between your DMX controller and lights is a smart way to help protect your precious gear from getting damaged by DMX cabling faults or stray voltage, all whilst making your DMX wiring scheme far more flexible.
- Simply connect your fixtures and controls – let D-Split take care of the rest.
Connect and Extend
- Instead of having to make all fixtures fit within a single daisy chain, each of the four outputs from the D-Split can be the start of its own chain, and multiple D-Splits can be linked together to expand further.
DIN rail mounting solution
- The D-Split features built-in mounting points to attach an optional TS35 DIN rail clip (included in the box) to allow you to install it in control cabinets or on surfaces/walls with a DIN rail fitted.
Technical Specification
| Overview | |
| Connectors | *Input: 1x 3 Pin DMX Output: 2x 3 Pin DMX *Only one input is allowed. No output/error with 2 input signals simultaneously. |
| IP rating | IP20 |
| LED indicators | Power & Data Output |
| Input Protocol | USITT DMX512-1990 |
| Output Protocol | USITT DMX512-1990 |
| RDM compatibility | No |
| Max channel | 512 channels (1 Universe) |
| Input Voltage | 7V-24VDC |
| Maximum Current | 400mA |
| Environmental operating temperature | 0°C to 50°C 32°F to 122°F |
| Environmental operating humidity | 5- 95% (non-condensing) |
| Body material | ABS plastic |
| Unit dimensions | 116 x 87 x 52mm |
| Unit weight | 0.16kg / 0.35lbs |
| Shipping dimensions | 235 x 160 x 68mm |
| Shipping weight | 0.5kg / 1.10lbs |
| Warranty | 1 year return to base manufacturer warranty |
| Downloads | |
| Data Sheet | Download |
Please Note: This product is intended for professional use only.
