Product Description

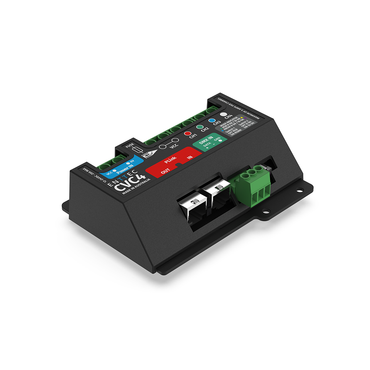

ENTTEC’s CVC4 is a high precision 4 channel, constant voltage (CV) LED dimmer, capable of dimming up to 5A of LED tape per channel at 12-24v.
The CVC4’s key feature is it’s integration of ENTTEC’s Pixelator family controller’s auto-addressing Plink protocol. This is a time saving system designed to allow users to simply chain one device to the next using Cat6 cable up to 300m away, removing the need to manually address each CVC4.
Alternatively use RDM to configure the start address of each CVC4 (default channel 001) and control over DMX. Another feature for the CVC4 is its ability to convert DMX to PLink protocol, connect a Cat6 cable to a CVC4 receiving DMX and the PLink protocol will auto-address all consecutive CVC4 along the daisy chain.
The CVC4 incorporates a user-serviceable blade fuse to protect against short circuits and features the ability to limit the output to reduce overheating.
With two DIP switches located on the CVC4, easily switch between RGB/RGBW and 8-bit/16-bit modes1.
The solid-state, fan-less design means the CVC4 is virtually silent when in operation.
Features
- Dimming capacity of up to 5A per channel.
- 12-24V input (20A maximum).
- 1KHz PWM signal refresh rate.
- Support daisy chaining of ENTTEC’s auto-addressing P-Link Protocol over Cat6 cable.
- DMX/RDM input through pluggable rising clamp connector.
- RDM identification and addressing functionality.
- On board conversion from DMX to P-link.
- Attachable TS-35 Din Rail mounting clip.
- Status LED and DIP switch to toggle between RGB/RGBW and 8-bit/16-bit operating modes.
- User-serviceable blade fuse to protect against short circuits.
- Passive cooling with internal overheating protection.
- Compact design with integrated 4mm surface mounting holes.
Video
CVC4 Unboxing
It's time to join everyone's fave Aussie electrical engineer, Jordan, as he gets well and truly stuck into the all new ENTTEC CVC4 LED dimmer.
Technical Specification
| Overview | |
| Connectors | 1* Power Input (Screw Terminal) 1* DMX Input (Screw Terminal) 1* PLINK In/Out (RJ45) 1* CV Output (Screw Terminal) |
| IP rating | IP20 |
| Data input protocols | DMX512a PLink - WS2812b (RJ45) |
| Data output protocol | PLink - WS2812b (RJ45) |
| RDM functionality | Start address configuration Temperature monitoring Firmware updatable |
| Start address configuration options | PLink using Pixelator family RDM (Default channel: 1) |
| Dimming resolution | 8/16-Bit |
| Fixture Modes / Channel footprint | 8-Bit RGB 3ch 8-Bit RGBW 4ch 16-Bit RGB 6ch 16-Bit RGBW 8ch |
| Data capability (per chain) | DMX Input Up to 1 universe PLink Input Up to 2 universes |
| Max. data cable length | DMX: 300m per chain PLink: 300m between each CVC4 (Cat6) |
| Input voltage | 12-24 V DC |
| Max. current rating | Max. 20A (in 4ch mode) |
| Max. output power | 240 W (@12V) 480 W (@24V) |
| Device power draw | Max. 4W – Idle 0.3W |
| Max. current per channel | Max. 5A |
| Reverse polarity protection | Yes (power input connector only) |
| Over Temperature Protection | Yes (output intensity will half and the LED indicator will blink red unit device has cooled). |
| Pulse width modulation (PWM) frequency | 1KHz - Fixed |
| User serviceable fuse: | ATO 20A blade fuse |
| Cooling method | Convection |
| Operating temperature | e -20°C to +50°C -4°F to 122°F |
| Environmental operating humidity | 5- 95% (non-condensing) |
| Mounting Options | Surface mount using mounting tabs |
| Body material | Black ABS plastic + Aluminium heat sink |
| Unit dimensions | 88*117.5*31.5mm |
| Unit weight | 0.13kg / 0.28lbs |
| Shipping dimensions | 140*140*40 mm |
| Shipping weight | 0.19kg / 0.42lbs |
| Warranty | 3 year return to base manufacturer warranty |
Please Note: This product is intended for professional use only.
