Product Description
12V RGB LED pixel strip for professional applications.

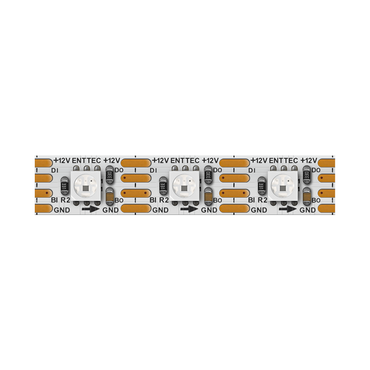

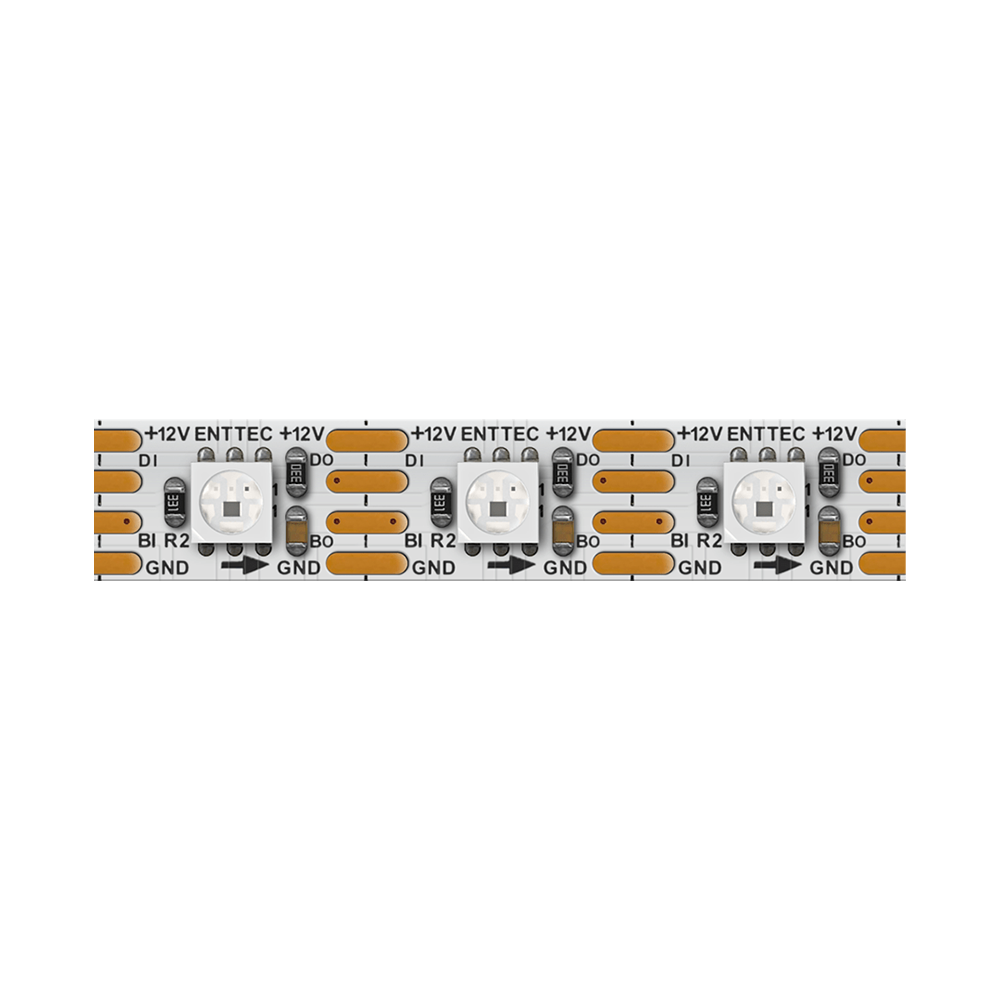

12V individually-controllable 60 pixel/m RGB pixel strip with white PCB. 5m roll.
ENTTEC’s 8PXA60-RGB-12V series are 12V, 60-LED-per-metre, addressable RGB LED pixel strips designed for professional architectural and entertainment purposes, achieving soft pastels or saturated colours on a large scale.
60 RGB LEDs per meter
ENTTEC LED pixel strip boasts 60 colour-calibrated RGB LEDs per metre. Each LED is engineered to offer consistent brightness and extended colour gamut.
Extend as you please
Join two lengths together or cut them into a smaller length. You can also operate the tape from up to 300m away using the ENTTEC PLink system. This tape is recommended for indoor use only.
Bright + super-efficent
With a maximum power consumption of only 7.2 watts per metre, and a lumen capacity of 188.2 lumens per metre, this 12V pixel strip provides a bright and efficient package.
Millions of colours
Each pixel can achieve a 24-bit, True Colour display. That’s a whopping 16,777,216 possible colours for each LED chip.
Australian design for top performance
Designed by ENTTEC for reliable operation in the Australian environment, our professional quality pixel strips use superior thickened copper tracks to reduce the effects of voltage drop and to allow a more even intensity along the length of the strip.
Features
- RGB, 3 in 1 full colour LED pixel strip.
- Premium flexible white 3oz copper PCB.
- Individually addressable led pixels, suitable for stage, entertainment and architectural applications.
- 12V DC input supply voltage.
- 60 Pixels/metre density.
- Back up data line BI/BO (In/Out).
- SK6813 IC chip (compatible to WS2812 and GS8208B protocol).
- 16.7 million possible shades.
- 120-degree illumination.
- 3M adhesive double side tape on the rear.
- Built-in data signal reshaping circuit.
- High LED density.
- Can be cut or joined at each copper tab.
- IP20 Indoor use only.
- Designed for use with ENTTEC pixel products.
- Maximum 7.2 Watts/Metre
Technical Specification
| Overview | |
| Connectors | 2 x 3-pin JST SM connectors (3A Max) |
| Input voltage | 12V |
| Max. watts per metre | 7.2 |
| Efficacy (lumens per watt) | 26.14 |
| DMX channels per pixel | 3 |
| Beam angle | 120° |
| Control protocol | SK6813 (compatible to WS2812 and GS8208B protocol) |
| Backup data line | Yes |
| Pixel mapping order | RGB |
| PCB colour |
White |
| PCB width | 10mm / 0.40” |
| Min. bend radius | 30mm / 1.2” |
| Spacing between cuttable sections | 16.6mm / 0.66” |
| IP rating | IP20 |
| Environmental operating temperature | 0°C to 50°C / 32°F to 122°F |
| Environmental operating humidity | 5- 95% (non-condensing) |
| Weight | (5m roll) 0.18Kg / 0.40lbs |
| Dimensions | (5m roll) 240 x 215 x 16mm / 9.45 x 8.47 x 0.63” |
| Shipping weight (5-roll carton) | 0.80Kg / 1.76lbs |
| Shipping dimensions (5-roll carton) | 260 x 225 x 93mm / 10.24 x 10.04 x 3.66” |
| Warranty | 1-year return to base manufacturer warranty |
| Compliance | UL / RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA) |
| Downloads | |
| Data Sheet | Download |
Please Note: This product is intended for professional use only.
