Enttec - 12V RGB 60-LEDs/m long-range pixel strip (5m Reel)
, <span class="ProductDetailsPriceIncTax">£96.00 (inc V.A.T.)</span> <span class="ProductDetailsPriceExTax">£80.00 (exc V.A.T.)</span> (https://shopwl.com/enttec-12v-rgb-60-leds-m-long-range-pixel-strip-5m-reel/))
Product Description
12V RGB long-range LED pixel strip for professional applications.

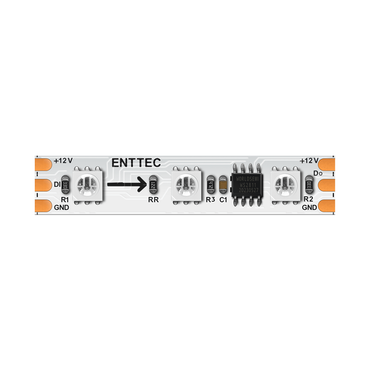

12V 60 pixel/m addressable RGB pixel strip with white PCB for long-range applications. 5m roll.
ENTTEC ‘s 8PXB60-RGB-12V series are 12V, 60-LED-per-metre, addressable RGB LED pixel strips designed for long-range professional architectural and entertainment installations, achieving soft pastels or saturated colours on a large scale.
60 RGB LEDs per metre
ENTTEC LED pixel strip boasts 60 colour-calibrated RGB LEDs per metre. Each LED is engineered to offer consistent brightness and extended colour gamut.
Bright + super-efficient
With a maximum power consumption of only 7.2 watts per metre, and a lumen capacity of 188.2 lumens per metre, this 12V pixel strip provides a bright and efficient package.
Australian designed for top performance
Designed by ENTTEC for reliable operation in the Australian environment, our professional quality pixel strips use superior thickened copper tracks to reduce the effects of voltage drop and to allow a more even intensity along the length of the strip.
Go further than before
On our 12V 8PXB60-RGB-12V strip, every consecutive group of three SMD chips behave as one pixel. This means that you can free up extra channels to triple your output capabilities: perfect for controlling longer setups.
Millions of Colours
Each pixel can achieve a 24-bit, True Colour display. That’s a whopping 16,777,216 possible colours for each LED chip.
Extend as you please
Join two lengths together or cut them into a smaller length. You can also operate the tape from up to 300m away using the ENTTEC PLink system. This tape is recommended for indoor use only.
Features
- RGB, 3 in 1 full colour LED pixel strip.
- Premium flexible white 3oz copper PCB.
- Suitable for stage, entertainment and architectural applications.
- 12V DC input supply voltage.
- 60 LEDs per metre density.
- 20 Pixels per metre density.
- WS2811 IC chips.
- 16.4 million possible shades per LED.
- 120-degree illumination.
- 3M adhesive double side tape on the rear.
- Built-in data signal reshaping circuit.
- High LED density.
- Can be cut or joined at each copper tab.
- IP20 Indoor use only.
- Designed for use with ENTTEC pixel products.
- Maximum 10.08 Watts/Metre.
Technical Specification
| Overview | |
| DC Power | 2 x 3-pin JST SM connectors (3A Max) |
| DC Power | 12V |
| Max. watts per metre | 10.08 |
| Efficacy (lumens per watt) | 34.66 |
| DMX channels per pixel | 3 |
| Beam angle | 120° |
| Control protocol | WS2811 |
| Backup data line | No |
| Pixel mapping order | RGB |
| PCB colour | White |
| PCB width | 10mm / 0.40” |
| Min. bend radius | 30mm / 1.2” |
| Spacing between cuttable sections | 50mm / 1.98” |
| IP rating | IP20 |
| Environmental operating temperature | 0°C to 50°C / 32°F to 122°F |
| Environmental operating humidity | 5- 95% (non-condensing) |
| Weight | (5m roll) 0.18Kg / 0.40lbs |
| Dimensions | (5m roll) 240 x 215 x 16mm / 9.45 x 8.47 x 0.63” |
| Shipping weight (5-roll carton) | 0.80Kg / 1.76lbs |
| Shipping dimensions (5-roll carton) | 260 x 225 x 93mm / 10.24 x 10.04 x 3.66” |
| Warranty | 1-year return to base manufacturer warranty |
| Compliance | UL / RCM (Aus/NZ), CE / WEEE (EU), UKCA (UK), FCC (USA) |
| Downloads | |
| Data Sheet | Download |
Please Note: This product is intended for professional use only.
