Elation Professional - MAGMA FAN 1

£609.00 (inc V.A.T.) £507.50 (exc V.A.T.)
SKU:
ELA1412000010
Weight:
6.80 KGS
Availability:
Please contact sales for stock and shipment information on: 020 8254 4840 or via Sales@ShopWL.com
Shipping:
Calculated at checkout
Quantity:

Product Description

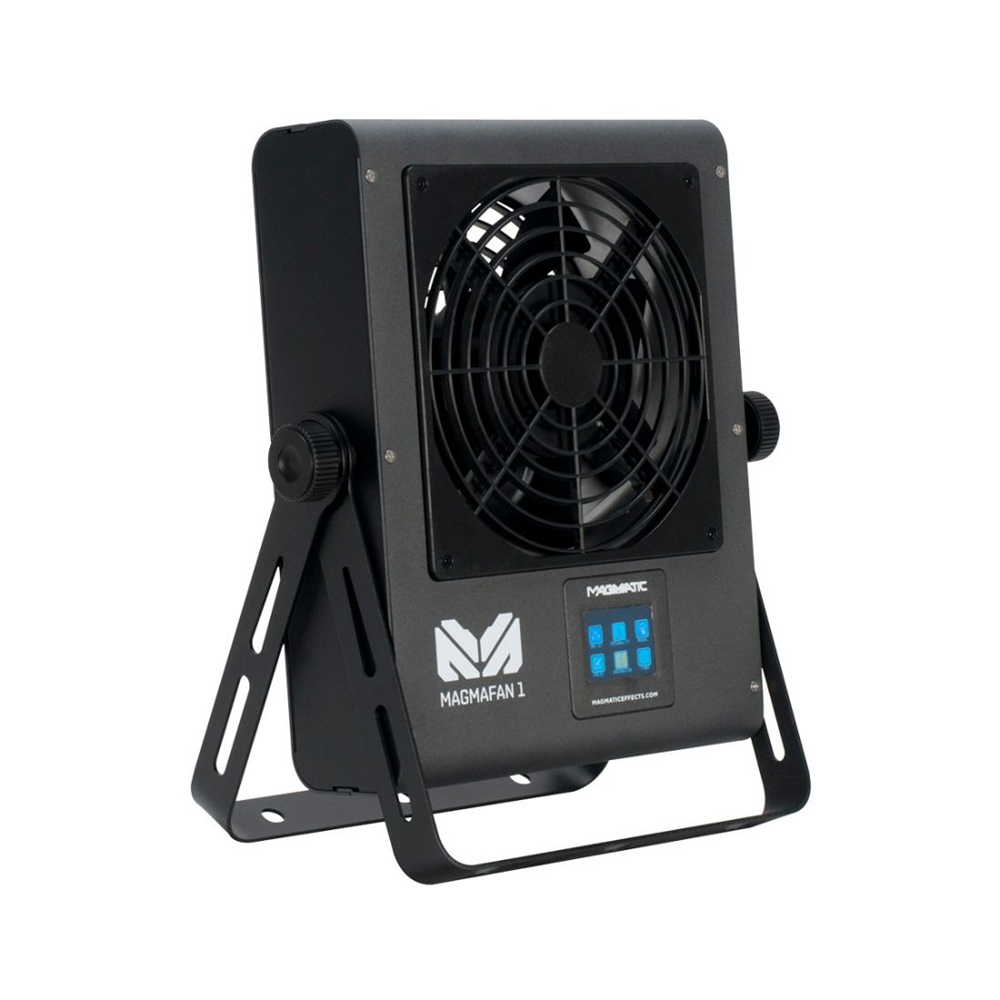

MagmaFan 1 is a compact all-purpose stage fan that features multiple control options, linear output control, low power consumption, adjustable blowing directions, and durable metal housing.

Low power consumption is only 80W, allowing you to put on the same circuit as your fog machine.

The adjustable mounting/floor bracket included enables you to adjust the fan output 90 degrees. Easy to use onboard LCD touch screen control panel, intuitive DMX-512, and RDM control. Its durable aluminum housing design allows easy carry and storage, with optional wired and wireless remote control.

Features

  • Intuitive DMX-512 and RDM control
  • Linear speed control
  • 80W, low power consumption
  • LCD touch screen control panel
  • Compact durable metal housing

Technical Specification

Overview
Performance Rated Power: 165W
Max. fan volume: 17 m3/min (600cu ft/min.)
Fan angle: 0-360°
Fan speed range: 750-2550rpm
Construction Durable aluminum housing
Compact lightweight mobile design
Control 3 DMX Channel Modes (1 / 2 / 4)
Onboard LCD Touch Control Panel
DMX-512 and RDM Protocol Support
Optional MAGFLY Wireless DMX Transceiver
Optional MAGRF Wireless and Wired Remotes
Connections Locking 5pin XLR Connector In/Out
IP65 Locking Power Connector In
With Wired Digital Communication Network
Size / Weight Length: 335mm (13.2 in.)
Width: 125mm (4.9 in.)
Height: 395mm (15.6 in.)
Weight: 6.8kg (15 lbs.)
Electrical AC 230/240V - 50Hz
2A (NFB)
Max Power Consumption: 165W
Thermal Maximum Ambient Temperature (Ta max): 40°C (104°F)
Exterior Surface Temperature, Steady State: 50°C (122°F)
Downloads
Data Sheet Download
User Guide Download

Please Note: This product is intended for professional use only.
