Product Description

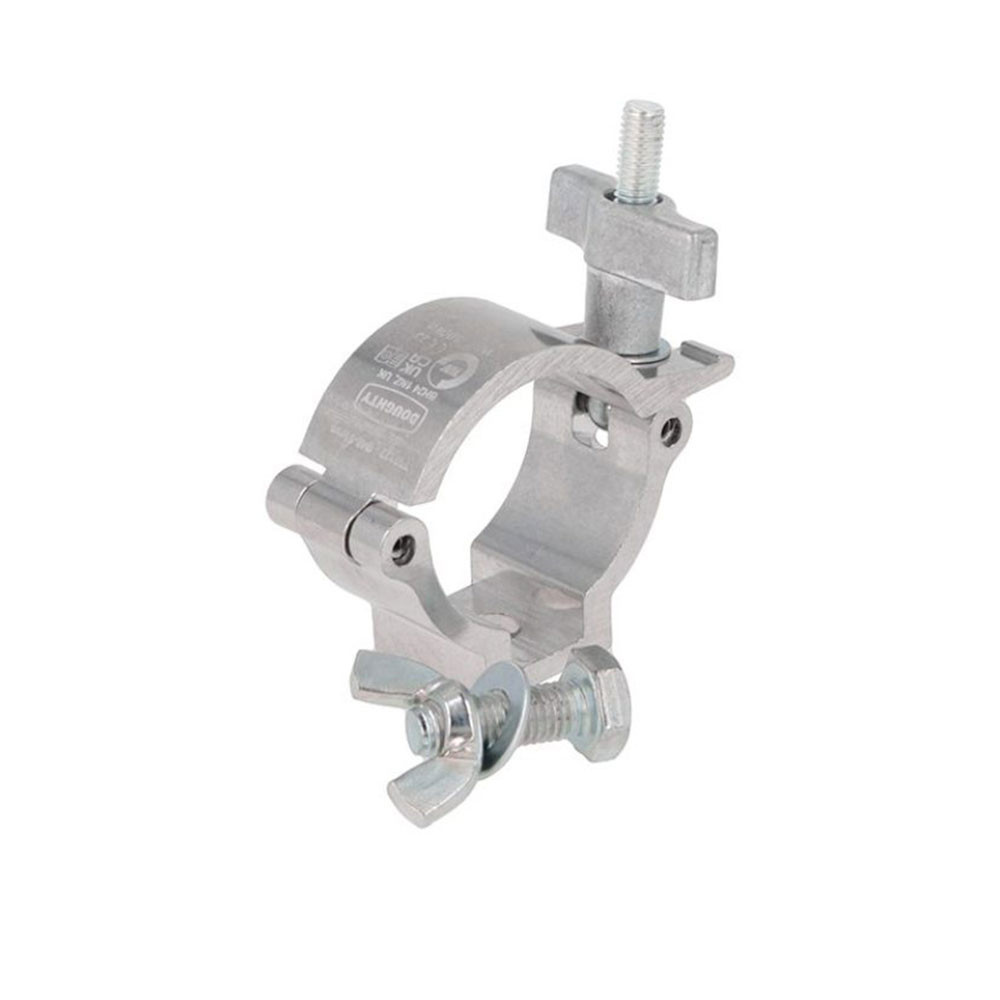

A high tensile extruded aluminium clamp that is suitable for 48mm to 51mm diameter tubes. It has a WLL of 100Kg and is 30mm wide. Slotted to hold captive an M10 nut or bolt head and supplied with an M10 X 30 bolt and wing nut. Ideal for trussing as it will not damage the cords. Available in polished silver or powder coated black.
TÜV APPROVED
Technical Specification
| Overview | |
| WLL | 100Kg |
| Tube Diameter | 48-51mm |
| Clamp Width | 30mm |
| Tube Diameter | Ø48 - 51mm (1.89" - 2.01") |
| Materials | Main Body - AW6082 T6 Aluminium Roll Pins - Stainless Steel Eyebolt - Grade 8.8 |
| Max Tightening Torque | Hand-tight Only |
| Fixings | Supplied with M10x30 Bolt / Wing Nut |
| WLL | 100Kg |
| Weight | 0.18Kg (0.4 lbs) |
| Factor of Safety | 5:1 |
| Approval | TÜV Approved |
| Downloads | |
| Data Sheet | Download |
Please Note: This product is intended for professional use only.
