- Doughty - Slimline Quick Trigger Hook Clamp (Black)
Categories
Brands
Current Top Sellers
Product Description

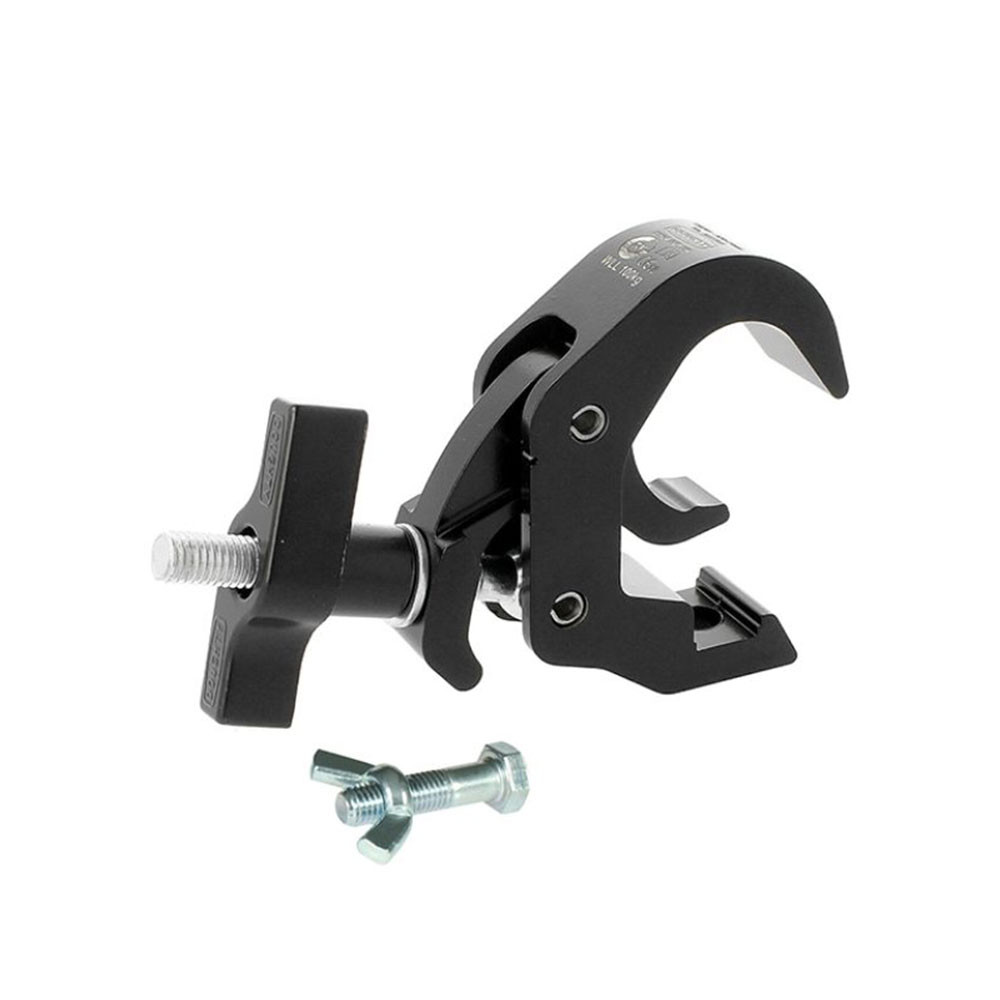

A high tensile extruded aluminium quick trigger clamp that is suitable for 38mm to 51mm diameter tubes. It has a WLL of 100Kg and is 30mm wide. Slotted to hold captive an M10 or M12 nut or bolt head and supplied with an M12 X 45 bolt and wing nut. Ideal for hanging large moving heads on trussing as it will not damage the cords. Available in powder coated black.
TÜV APPROVED
Technical Specification
Overview | |
WLL | 100Kg |
Tube Diameter | 38-51mm |
Clamp Width | 30mm |
Materials | Main Body - AW6082 T6 Aluminium Roll Pins - Stainless Steel Eyebolt Assy - Grade 8.8 |
Max Tightening Torque | Hand-tight Only |
Fixings | Supplied with M12x45 Bolt & Wing Nut |
Weight | 0.57Kg |
Factor of Safety | 5:1 |
Approval | TÜV Approved |
Downloads | |
Data Sheet | Download |
Please Note: This product is intended for professional use only.
