Doughty - Quick Trigger Clamp Basic (Black)

1 product review Write A Review
£37.25 (inc V.A.T.) £31.04 (exc V.A.T.)
SKU:
DOUT58201
Weight:
0.76 KGS
Availability:
Please contact sales for stock and shipment information on: 020 8254 4840 or via  Sales@ShopWL.com
Shipping:
Calculated at checkout
Quantity:

Product Description

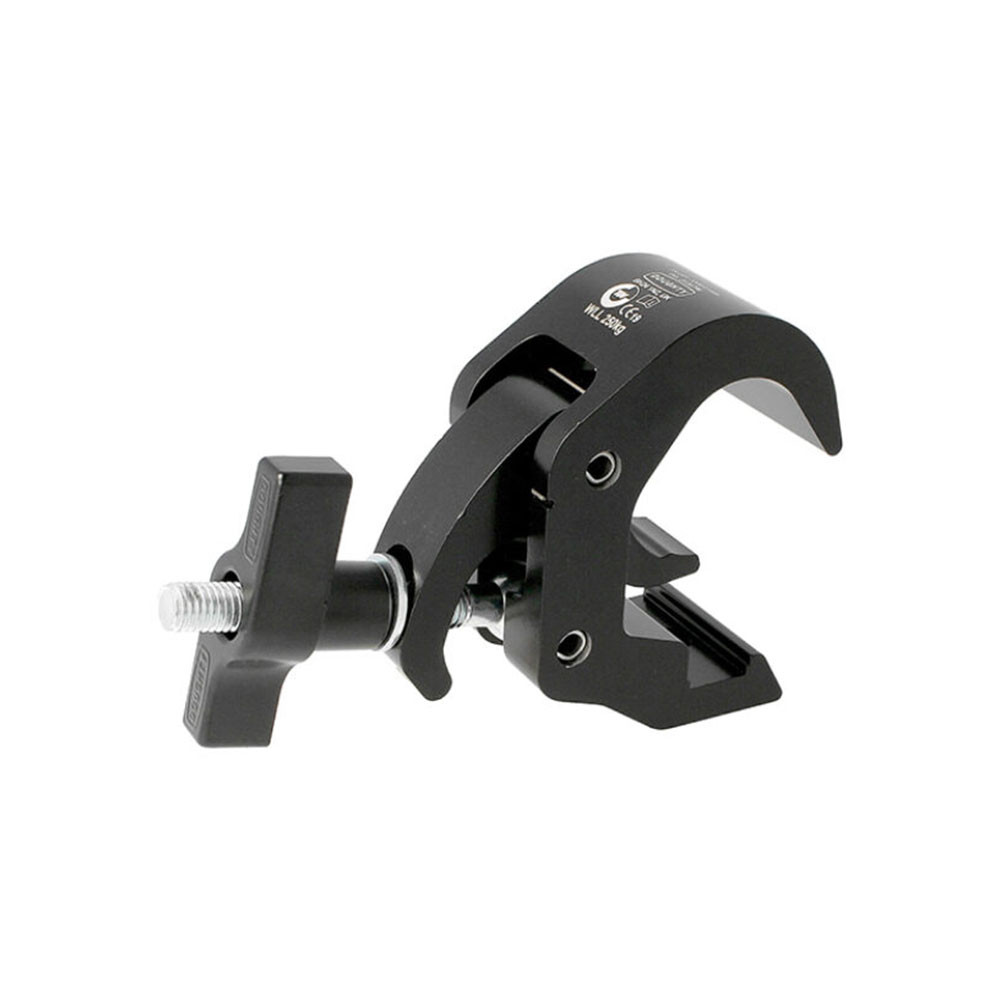

A high tensile extruded aluminium quick trigger clamp that is suitable for 38mm to 51mm diameter tubes. It has a WLL of 250Kg and is 50mm wide. Slotted to hold captive an M10 or M12 nut or bolt head. Ideal for hanging large moving heads on trussing as it will not damage the cords. Available in powder coated black.

TÜV APPROVED

Technical Specification

Overview
WLL 250Kg
Tube Diameter 38-51mm
Clamp Width 50mm
Materials Main Body - AW6082 T6 Aluminium
Roll Pins - Stainless Steel
Eyebolt Assy - Grade 8.8
Max Tightening Torque Hand-tight Only
Fixings To be used with M10 or M12 Fixings
Weight 0.76Kg
Factor of Safety 5:1
Approval TÜV Approved
Downloads
Data Sheet Download

Please Note: This product is intended for professional use only.

Product Reviews

Write Review

  1. Just exactly what I wanted

    Posted by Unknown on 21st Jun 2017

    Just exactly what I wanted
