Product Description

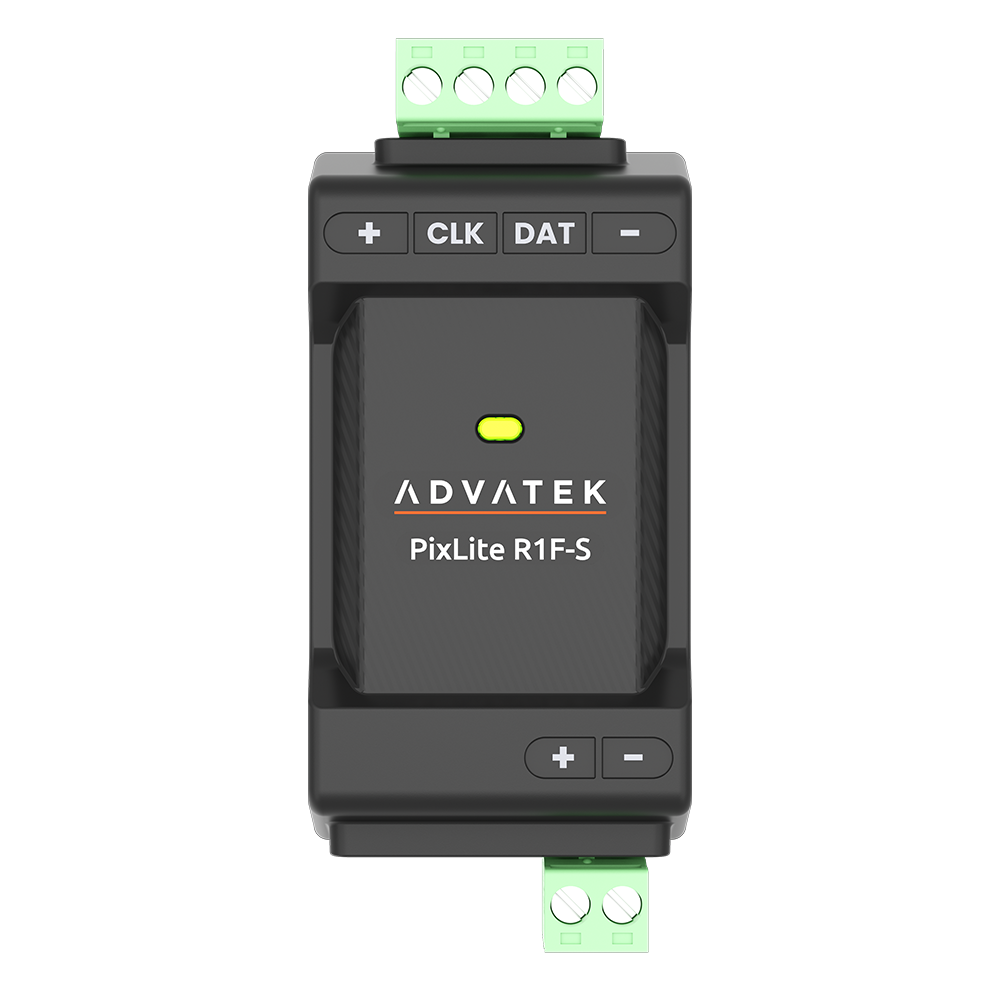

Meet the PixLite® R1F-S, Advatek’s newest long-range receiver, designed for flexibility and cost optimization.
The R1F-S offers a 5-48V compatibility, higher current capacity, and a compact design perfect for tight spaces. Paired with the PixLite® T16X-S Mk3, this system can reduce control costs by up to 40% in highly dispersed pixel installations, making it ideal for large-scale architectural projects and more.
Advatek equipment is proudly designed & made at our headquarters in Australia for ultimate manufacturing quality control. Our products are covered by a five-year product warranty for your absolute peace of mind.
Features
- Single pixel output
- Slimline form factor
- Receiver and pixels can be driven at 5-48V
- 10A throughput current
- Multiple receivers cover a 300-meter radius from the transmitter
- Ideal for installations requiring a sleek, low-profile unit
- DIN rail mount
- Flat surface mount
- Tubular surface mount
- Global certifications
Video
Advatek Innovation: PixLite® R1F-S and PixLite® T16-S Mk3
Advatek Innovation: PixLite® R1F-S and PixLite® T16-S Mk3 More Pixels in More Locations. Introducing the next-generation PixLite® R1F-S and T16-S, designed to revolutionize pixel control...
Technical Specification
Overview | |
Pixel Outputs | 1 |
Data Inputs (from Transmitter) | 1 |
Dimensions | 72 x 39 x 31mm |
Weight | 0.054kg |
Enclosure Material | Black Polycarbonate |
Mounting Option | Flat/Tubular Surface & DIN Rail Mount |
Input Power | 5V - 48V DC |
Per Output Current Limit | 10A |
Ambient Operating Temperature | -20°C to +55°C |
Please Note: This product is intended for professional use only.
