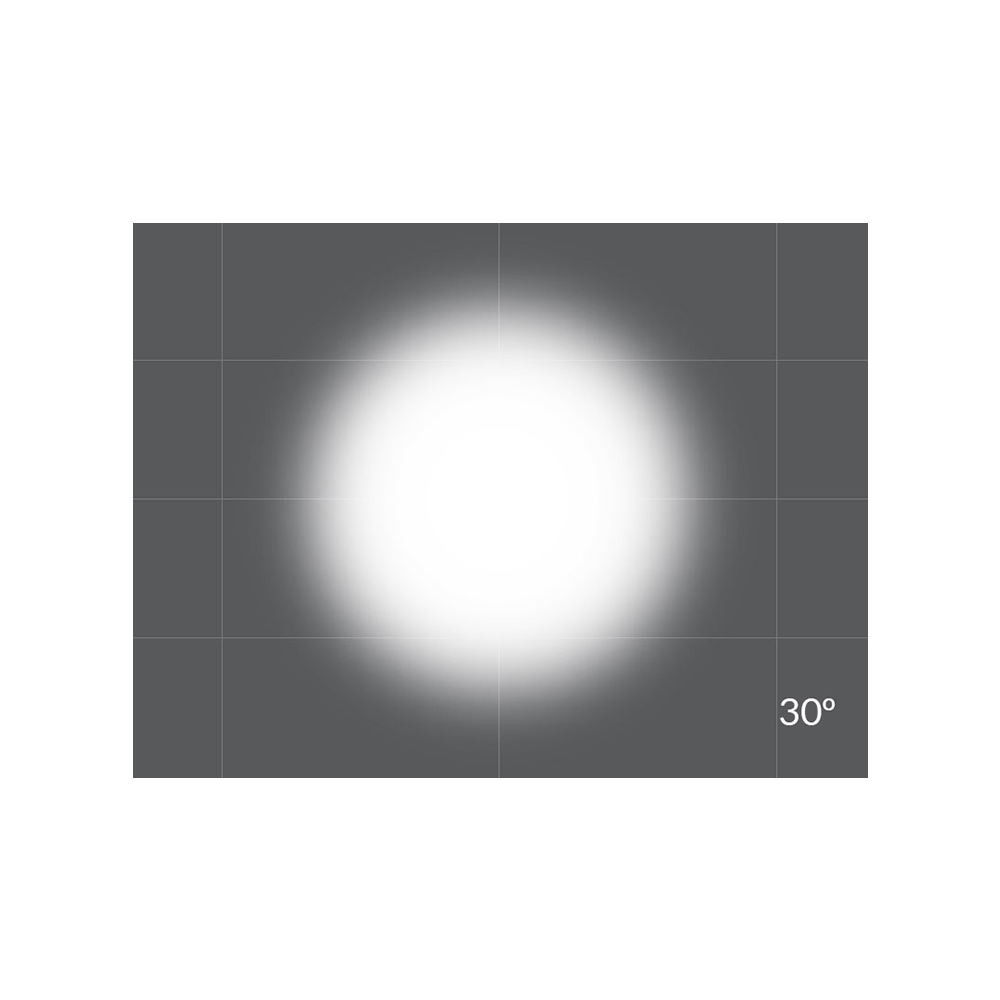

Rosco - Opti-Sculpt 30°

£50.70 (inc V.A.T.) £42.25 (exc V.A.T.)
SKU:
ROS108100302420
Weight:
0.05 KGS
Availability:
Please contact sales for stock and shipment information on: 020 8254 4840 or via Sales@ShopWL.com
Shipping:
Calculated at checkout
Quantity:

Product Description

Rosco OPTI-SCULPT lenses provide precise angular beam control – enabling lighting professionals to accurately and affordably control the shape of their light. Rosco’s unique, proprietary process offers increased brightness with engineered light distribution that has been laboratory tested for accuracy and repeatability.

There are 11 different symmetrical and asymmetrical OPTI-SCULPT lenses to choose from, including the unique 40°/60° Reversible pattern. Each OPTI-SCULPT lens is manufactured using flame-retardant, 10 mil thick, semi-rigid polycarbonate that can be cut to any size and shape to fit any light fixture.

Features

  • Engineered and laboratory tested for accurate and repeatable beam shaping • High transmission
  • Manufactured using heat-resistant, flame-retardant polycarbonate
  • Designed for LED fixtures, but also suitable for use on conventional fixtures
  • Durable – The lens’ performance is not adversely affected by dust, fingerprints or by marking the back of the lens
  • Available in eleven different patterns, including the unique, reversible 40°/60°

Video

Exploring Rosco’s OPTI-SCULPT™ Beam Shaping Lenses

Richard William Preisner demonstrates each OPTI-SCULPT beam-shaping lens individually as he explains how he would use them in his work.

Technical Specification

Overview
Thickness 10 mil (254μ)
Substrate Clear polycarbonate
Contains flame retardant additive
Available Sizes 24” x 20” (60 cm x 50 cm) sheet – seamless
24” x 40” (60 cm x 100cm) sheet – seamless
Thermal Performance -40° F – +320° F (-40° C – +160° C)
Transmission >85%
Flame Retardant Rating M1, B1, C1, BS3944 PART 1 1992,NFPA 701
Downloads
Data Sheet Download
Key Chart Download

Please Note: This product is intended for professional use only.
