Product Description
A palm-sized, multi-functional DMX/RDM tool that provides fixture addressing and testing, DMX snapshot playback, data monitoring, and cable integrity checks.
Perfect for lighting technicians, system installers, and rental house staff who need a portable, all-in-one device for on-site fixture setup, diagnostics, and troubleshooting.
- Supports DMX, RDM, and Ilumicode protocols for comprehensive fixture management.
- Offers full RDM functionality to easily address, locate, and monitor fixtures.
- Records DMX snapshots and tests cable integrity for complete system diagnostics.
- Directly addresses Iluminarc IP fixtures that lack an onboard display.
- Features a bright, easy-to-read OLED display for clear data monitoring.
- Includes a carry pouch, USB charging cable, and DMX connector adapters.

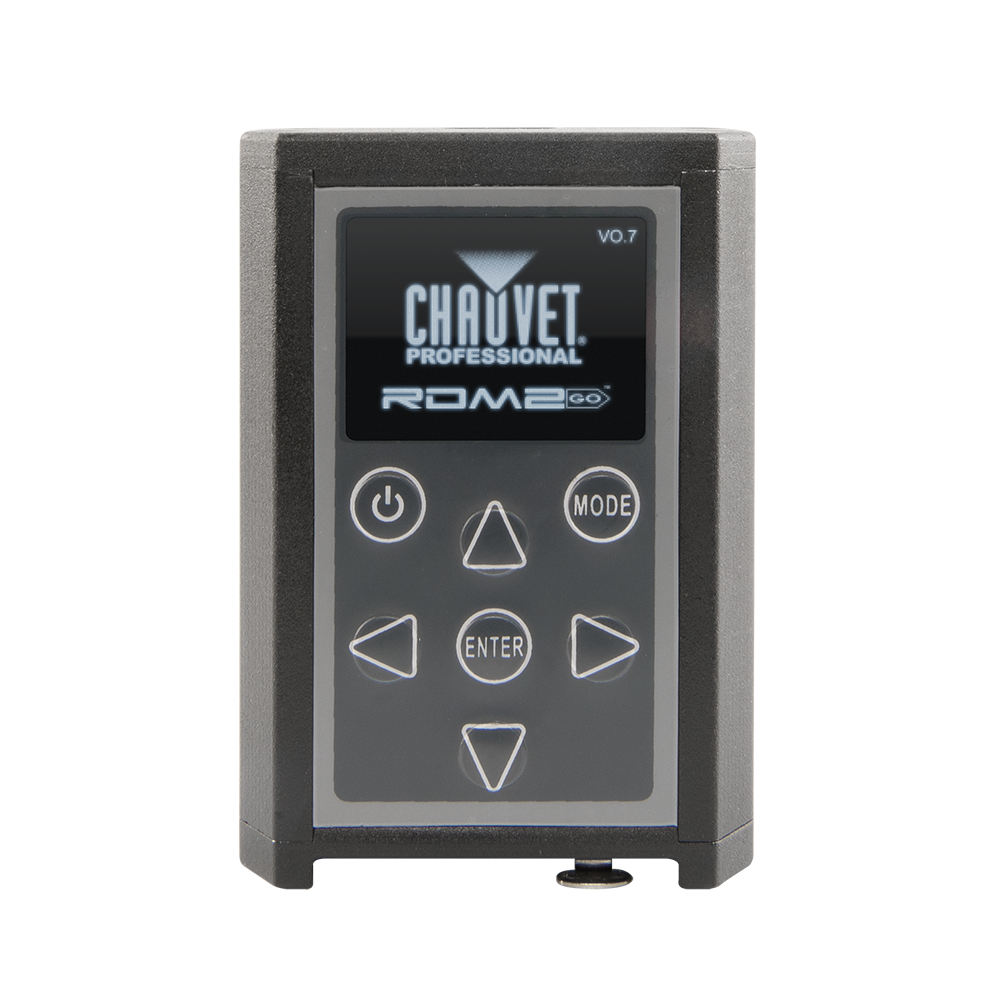

RDM2go is a multi-functional tool for working with fixtures over a DMX/RDM data line. This palm-sized controller performs a multitude of tasks including RDM functionality, DMX snapshot and test-scene record and playback, DMX input and output monitoring. RDM2go features a built-in DMX cable integrity checker, and an easy to read OLED display. It also addresses Chauvet’s Iluminarc IP fixtures that do not have a display. The unit easily recharges via a standard micro USB jack and comes with a convenient carry pouch and DMX connector converters.
Features
Multi-Protocol Control
Manage fixtures and systems using DMX, RDM, and Ilumicode protocols with a single handheld device.
RDM Fixture Management
Easily address, locate, and monitor all of your RDM-capable fixtures.
DMX System Diagnostics
Check DMX addressing and cabling, and also store and play back basic snapshots for testing.
Ilumicode Fixture Setup
Address and set the personalities of Ilumicode-based architectural lighting fixtures.
Included Accessories
Comes complete with necessary connector adaptors, a USB charging cord, and a belt clip pouch.
What's Included
- RDM2go
- Carry Pouch
- 2 pc, 3- to 5-pin converters
- 5-pin male to bare wire adaptor
- USB-A Male to Micro USB-B Male (3 ft)
Technical Specification
| Dynamic Effects | |
| Standalone Color Mixing | Yes |
| Color Temperature Presets (Ilumicode) | Yes |
| Dim Modes (Ilumicode) | 5 |
| Customizable Programs | Yes |
| Recall Custom Programs | Yes |
| Control | |
| Protocol(s) | DMX, RDM, Ilumicode |
| DMX Channels | 1, 2, 3, 4, 5, 6 or 7 |
| Modes/Personalities (Ilumicode) | 13 personalities (ARC 1, ARC 1+D, ARC2, ARC2+D, ARC3, ARC3+D, ARC FULL, REMOTE, SOLID, SPECIAL1, SPECIAL2, VW, VW+D) |
| Battery | |
| Battery type | Lithium Ion |
| Rechargeable | Yes |
| Battery Life | 8 hours |
| Battery Power | 3.7 V, 1,200 mAh |
| Construction/Physical | |
| Dimensions | 2.76 x 1.52 x 3.92 in (70 x 39 x 100 mm) |
| Weight | 0.77 lb (0.35 kg) |
| Exterior Color | Black |
| Housing Material | Aluminum die-cast |
| Connections | |
| Power Input | Micro USB-B Male |
| Data Connectors | 5-pin XLR |
| Cable Length (power) | 3 ft (0.91 m) |
| Electrical | |
| Power and Current | 18 W, 0.15 A @ 120 V, 60 Hz |
| Power and Current | 18 W, 0.09 A @ 208 V, 60 Hz |
| Power and Current | 18 W, 0.08 A @ 230 V, 50 Hz |
| Certifications/Qualifications | |
| Certifications | CE |
| IP Rating | IP20, dry location |
| Downloads | |
| Data Sheet | Download |
Please Note: This product is intended for professional use only.
