Product Description

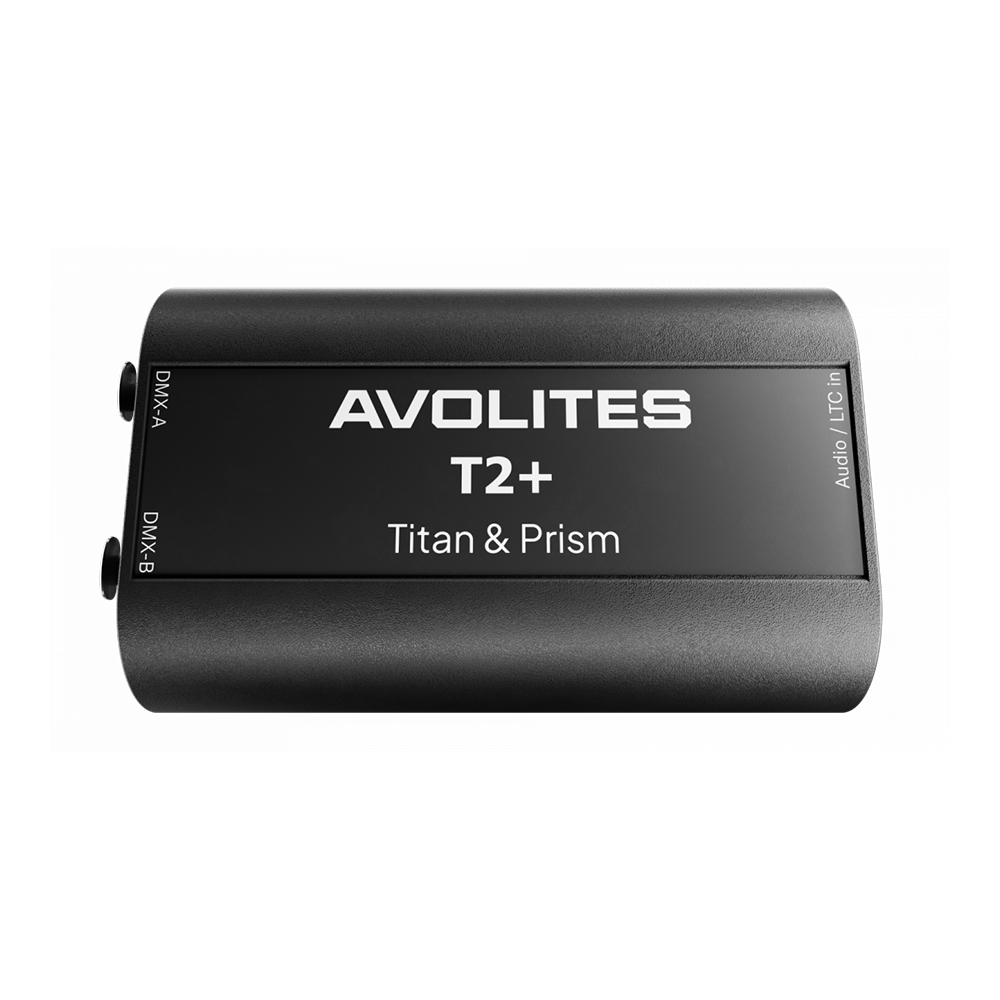

Integrates lighting and media by unlocking either Titan (lighting) or Prism (media). Preprogram and/or run your show on any Windows computer.
Travel Collection unlocks either Titan (lighting) or Prism (media), allowing you to preprogram and/or run your show on any Windows computer. T2+ has two physical DMX ports and an Audio/LTC input, utilising your computer’s network and display ports for the other pots.
T2+ unlocks 2,048 DMX channels within Titan or 2 display outputs and 2,048 DMX Pixels† from Prism.
- 2 physical DMX ports and an Audio/LTC input
- 2,048 DMX channels within Titan
- 2 display output from Prism
- 2,048 DMX Pixels from Prism (coming soon)
Software Features
- T3 Wing, D3 Wing & Titan Mobile Wing support - extend your control and stay hands-on during every show
- D3 Touch integration - remotely trigger Titan from a reliable touchscreen
- Titan WebAPI - build 3rd Party integrations which connect directly into Titan
- Prism DMX Pixels - between 1 to 4 DMX channels… from a simple intensity through to full RGBW
- USB MIDI devices for external triggering and control
- SMPTE Linear TimeCode (LTC)
- Optically & galvanically isolated DMX ports
Video
Prism, AvoKey Collection & Travel Collection launch
Focus your creativity and control media with impact using Prism, Avolites' intuitive media interface for both lighting and video professionals. When connected to Titan with Synergy, Prism brings media control into a connected Avolites environment, making lighting and media part of one, connected show.
Technical Specification
| Titan software | |
| DMX Channels Per Device | 2,048 |
| Max Fixtures | Unlimited |
| 3D Visualisation | Capture Engine |
| USB Wing Support | 1x D3 Wing, T3 Wing, or Titan Mobile Wing |
| D3 Touch Support | Yes (unlimited) |
| Mobile App | Yes - iOS & Android (“Titan Remote”) |
| Control Protocols | DMX512 (E1.11) Streaming ACN (E1.31) Art-Net & Art-RDM CITP GDTF (through Capture) SMPTE LTC MIDI over USB (MIDI Notes & MTC) Web API |
| TitanNet | |
| Expand Processing | Yes |
| Offload Processing | Yes |
| Multi-Console Session | Yes |
| Dmx Channels Per System | 32,768 |
| Prism software | |
| Display Outputs | 2 (physical*, NDI or RTSP) |
| Dmx Pixels† | 2,048† |
| Layers | 16 |
| Banks | 256 |
| Max Surface Resolution | 8K / Super High Definition (SHD) square (7680px x 7680px) |
| Max Output Resolution | 4K / Ultra High Definition (UHD) square (3840px x 3840px) |
| Inputs | 4 (physical*, NDI or RTSP) |
| Surfaces | 16 |
| Blend Modes | 17 |
| Elements Per Bank | 256 |
| Note | *the physical ports on a graphics card / capture card †DMX Pixels coming soon to Prism. Each pixel can be 4 DMX channels (e.g. RGBW) |
| Connectivity | |
| DMX (In & Out) | 2x Neutrik 5-pin XLR (Optically & galvanically isolated) |
| USB | 1x USB B |
| SMPTE Audio/LTC | 1x Neutrik 3-pin XLR |
| Physical | |
| Weight | TBC |
| Packaged Weight | TBC |
| Packaging | Cardboard |
| Dimensions (W X D X H) | 79 x 123 x 41 mm |
| Packaged Dimensions | TBC |
| Hardware | |
| Operating Voltage | 5V DC |
| Power Connector | USB B |
| IP Rating | IP20 (indoor use only) |
| Operating Temperature | 0°C to 40°C |
| Humidity | 95% non-condensing |
| Certification and Safety | |
| Conformity | CE, WEEE, RoHS |
| Part Number | |
| 30-01-9632 | T2+ Includes USB A to USB B cable & 2-year return to base warranty |
| Downloads | |
| Data Sheet | Download |
Please Note: This product is intended for professional use only.
