Doughty - Trigger Clamp Basic (Black)

£30.46 (inc V.A.T.) £25.38 (exc V.A.T.)
SKU:
DOUT588601
Weight:
0.50 KGS
Availability:
Please contact sales for stock and shipment information on: 020 8254 4840 or via  Sales@ShopWL.com
Shipping:
Calculated at checkout
Quantity:

Product Description

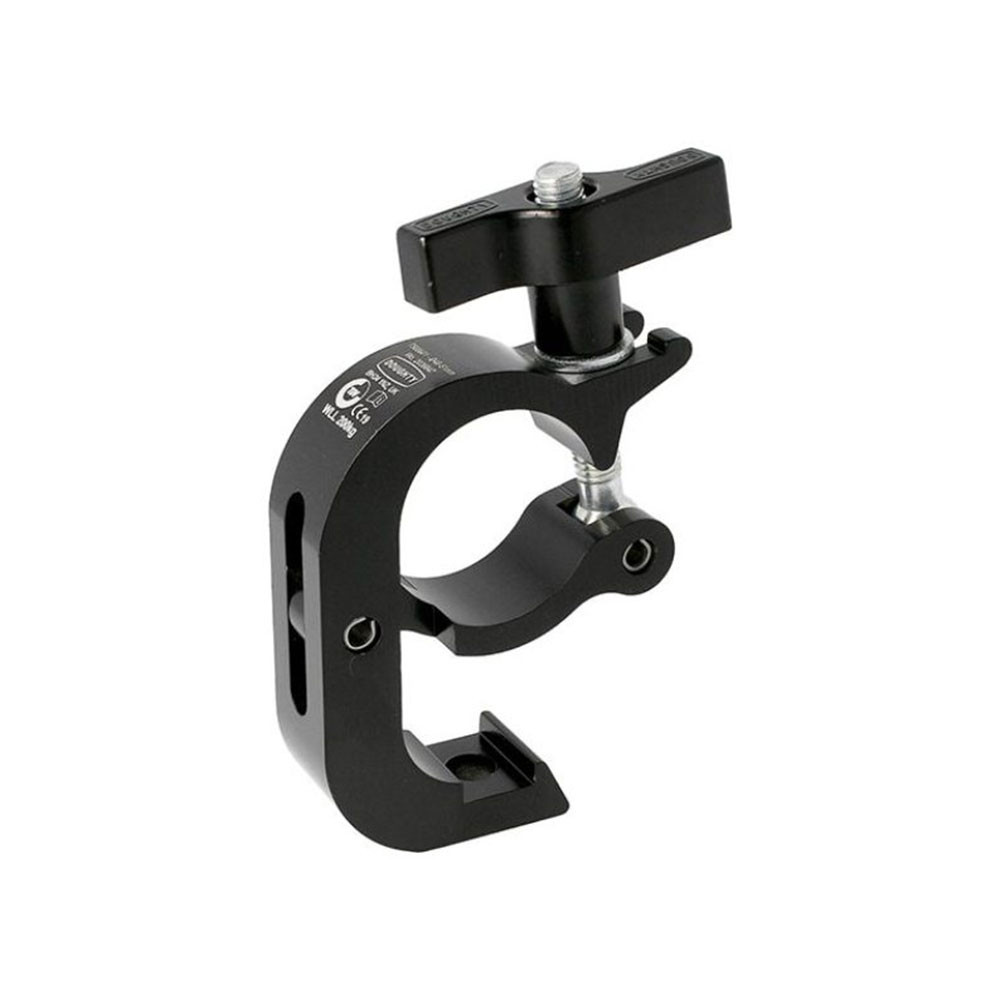

A high tensile extruded aluminium trigger clamp that is suitable for 48mm to 51mm diameter tubes. It has a WLL of 200Kg and is 30mm wide. Slotted to hold captive an M12 nut or bolt head. Ideal for hanging large moving heads on trussing as it will not damage the cords. Available in polished silver or powder coated black.

TÜV APPROVED

Technical Specification

Overview
WLL 200Kg
Tube Diameter 48-51mm
Clamp Width 30mm
Tube Diameter Ø48 - 51mm
Materials Main Body - AW6082 T6 Aluminium
Roll Pins - Stainless Steel
Eyebolt Assy - Grade 8.8
Max Tightening Torque Hand-tight Only
Fixings To be used with M12 Fixings
WLL 200Kg
Weight 0.50Kg
Factor of Safety 5:1
Factor of Safety 5:1
Approval TÜV Approved
Downloads
Data Sheet Download

Please Note: This product is intended for professional use only.
